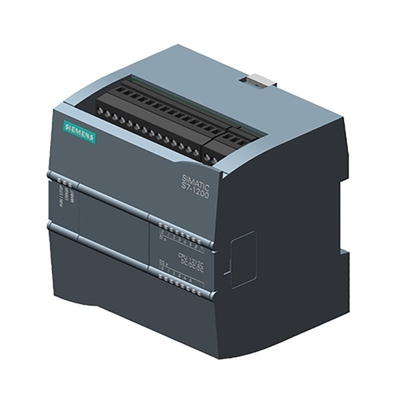

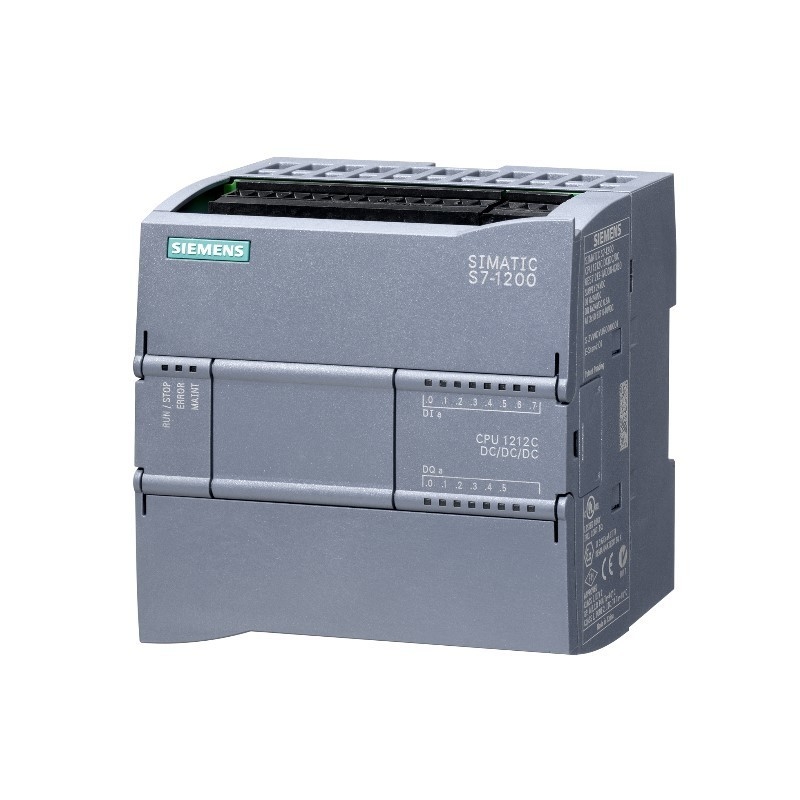

SIMATIC S7-1200 CPU 1212C Compact CPU DC/DC/DC 6ES7212-1AE40-0XB0 in Original Package
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $274.00/cartons 1-9 cartons |
| Packaging Details: | CARTON |
|
Detail Information |
|||
| Communication Interface: | Other | Condition: | 100% Original Brand |
|---|---|---|---|
| Warranty: | 12 Months | Package: | Original Packaging |
| Shipping Term: | FOB | Payment: | T/T |
| MOQ: | 1 Piece | Service: | One-stop Service |
| Quality: | 100% Strictly Tested | Application: | Automation Industrial |
| DESCRIPTION: | PLC | ||
Product Description
Specification
General information | ||||
Product type designation | CPU 1212C DC/DC/DC | |||
Firmware version | V4.6 | |||
Engineering with | ||||
● Programming package | STEP 7 V18 or higher | |||
Supply voltage | ||||
Rated value (DC) | ||||
● 24 V DC | Yes | |||
permissible range, lower limit (DC) | 20.4 V | |||
permissible range, upper limit (DC) | 28.8 V | |||
Reverse polarity protection | Yes | |||
Load voltage L+ | ||||
● Rated value (DC) | 24 V | |||
● permissible range, lower limit (DC) | 20.4 V | |||
● permissible range, upper limit (DC) | 28.8 V | |||
Input current | ||||
Current consumption (rated value) | 400 mA; CPU only | |||
Current consumption, max. | 1 200 mA; CPU with all expansion modules | |||
Inrush current, max. | 12 A; at 28.8 V DC | |||
I²t | 0.5 A²·s | |||
Output current | ||||
for backplane bus (5 V DC), max. | 1 000 mA; Max. 5 V DC for SM and CM | |||
Encoder supply | ||||
24 V encoder supply | ||||
● 24 V | L+ minus 4 V DC min. | |||
Power loss | ||||
Power loss, typ. | 9 W | |||
Memory | ||||
Work memory | ||||
● integrated | 100 kbyte | |||
Load memory | ||||
● integrated | 2 Mbyte | |||
● Plug-in (SIMATIC Memory Card), max. | with SIMATIC memory card | |||
Backup | ||||
● present | Yes | |||
● maintenance-free | Yes | |||
● without battery | Yes | |||
CPU processing times | ||||
for bit operations, typ. | 0.08 µs; / instruction | |||
for word operations, typ. | 1.7 µs; / instruction | |||
for floating point arithmetic, typ. | 2.3 µs; / instruction | |||
CPU-blocks | ||||
Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used | |||
OB | ||||
● Number, max. | Limited only by RAM for code | |||
Data areas and their retentivity | ||||
Retentive data area (incl. timers, counters, flags), max. | 14 kbyte | |||
Flag | ||||
● Size, max. | 4 kbyte; Size of bit memory address area | |||
Local data | ||||
● per priority class, max. | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB | |||
Address area | ||||
Process image | ||||
● Inputs, adjustable | 1 kbyte | |||
● Outputs, adjustable | 1 kbyte | |||
Hardware configuration | ||||
Number of modules per system, max. | 3 comm. modules, 1 signal board, 2 signal modules | |||
Time of day | ||||
Clock | ||||
● Hardware clock (real-time) | Yes | |||
● Backup time | 480 h; Typical | |||
● Deviation per day, max. | ±60 s/month at 25 °C | |||
Digital inputs | ||||
Number of digital inputs | 8; Integrated | |||
● of which inputs usable for technological functions | 6; HSC (High Speed Counting) | |||
Source/sink input | Yes | |||
Number of simultaneously controllable inputs | ||||
all mounting positions | ||||
— up to 40 °C, max. | 8 | |||
Input voltage | ||||
● Rated value (DC) | 24 V | |||
● for signal "0" | 5 V DC at 1 mA | |||
● for signal "1" | 15 V DC at 2.5 mA | |||
Input delay (for rated value of input voltage) | ||||
for standard inputs | ||||
— parameterizable | 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four | |||
— at "0" to "1", min. | 0.2 ms | |||
— at "0" to "1", max. | 12.8 ms | |||
for interrupt inputs | ||||
— parameterizable | Yes | |||
for technological functions | ||||
— parameterizable | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | |||
Cable length | ||||
● shielded, max. | 500 m; 50 m for technological functions | |||
● unshielded, max. | 300 m; for technological functions: No | |||
Digital outputs | ||||
Number of digital outputs | 6 | |||
● of which high-speed outputs | 4; 100 kHz Pulse Train Output | |||
Limitation of inductive shutdown voltage to | L+ (-48 V) | |||
Switching capacity of the outputs | ||||
● with resistive load, max. | 0.5 A | |||
● on lamp load, max. | 5 W | |||
Output voltage | ||||
● for signal "0", max. | 0.1 V; with 10 kOhm load | |||
● for signal "1", min. | 20 V | |||
Output current | ||||
● for signal "1" rated value | 0.5 A | |||
● for signal "0" residual current, max. | 0.1 mA | |||
Output delay with resistive load | ||||
● "0" to "1", max. | 1 µs | |||
● "1" to "0", max. | 5 µs | |||
Switching frequency | ||||
● of the pulse outputs, with resistive load, max. | 100 kHz | |||
Relay outputs | ||||
● Number of relay outputs | 0 | |||
Cable length | ||||
● shielded, max. | 500 m | |||
● unshielded, max. | 150 m | |||
Analog inputs | ||||
Number of analog inputs | 2 | |||
Input ranges | ||||
● Voltage | Yes | |||
Input ranges (rated values), voltages | ||||
● 0 to +10 V | Yes | |||
— Input resistance (0 to 10 V) | ≥100k ohms | |||
Cable length | ||||
● shielded, max. | 100 m; twisted and shielded | |||
Analog outputs | ||||
Number of analog outputs | 0 | |||
Analog value generation for the inputs | ||||
Integration and conversion time/resolution per channel | ||||
● Resolution with overrange (bit including sign), max. | 10 bit | |||
● Integration time, parameterizable | Yes | |||
● Conversion time (per channel) | 625 µs | |||
Encoder | ||||
Connectable encoders | ||||
● 2-wire sensor | Yes | |||
1. Interface | ||||
Interface type | PROFINET | |||
Isolated | Yes | |||
automatic detection of transmission rate | Yes | |||
Autonegotiation | Yes | |||
Autocrossing | Yes | |||
Interface types | ||||
● RJ 45 (Ethernet) | Yes | |||
● Number of ports | 1 | |||
● integrated switch | No | |||
Protocols | ||||
● PROFINET IO Controller | Yes | |||
● PROFINET IO Device | Yes | |||
● SIMATIC communication | Yes | |||
● Open IE communication | Yes; Optionally also encrypted | |||
● Web server | Yes | |||
● Media redundancy | No | |||
PROFINET IO Controller | ||||
● Transmission rate, max. | 100 Mbit/s | |||
Services | ||||
— PG/OP communication | Yes; encryption with TLS V1.3 pre-selected | |||
— Isochronous mode | No | |||
— IRT | No | |||
— PROFIenergy | No | |||
— Prioritized startup | Yes | |||
— Number of IO devices with prioritized startup, max. | 16 | |||
— Number of connectable IO Devices, max. | 16 | |||
— Number of connectable IO Devices for RT, max. | 16 | |||
— of which in line, max. | 16 | |||
— Activation/deactivation of IO Devices | Yes | |||
— Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 | |||
— Updating time | The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data. | |||
PROFINET IO Device | ||||
Services | ||||
— PG/OP communication | Yes; encryption with TLS V1.3 pre-selected | |||
— Isochronous mode | No | |||
— IRT | No | |||
— PROFIenergy | Yes | |||
— Shared device | Yes | |||
— Number of IO Controllers with shared device, max. | 2 | |||
Protocols | ||||
Supports protocol for PROFINET IO | Yes | |||
PROFIsafe | No | |||
PROFIBUS | Yes; CM 1243-5 (master) or CM 1242-5 (slave) required | |||
OPC UA | Yes; OPC UA Server | |||
AS-Interface | Yes; CM 1243-2 required | |||
Protocols (Ethernet) | ||||
● TCP/IP | Yes | |||
● DHCP | No | |||
● SNMP | Yes | |||
● DCP | Yes | |||
● LLDP | Yes | |||
Redundancy mode | ||||
Media redundancy | ||||
— MRP | No | |||
— MRPD | No | |||
SIMATIC communication | ||||
● S7 routing | Yes | |||
Open IE communication | ||||
● TCP/IP | Yes | |||
— Data length, max. | 8 kbyte | |||
— several passive connections per port, supported | Yes | |||
● ISO-on-TCP (RFC1006) | Yes | |||
— Data length, max. | 8 kbyte | |||
● UDP | Yes | |||
— Data length, max. | 1 472 byte | |||
Web server | ||||
● supported | Yes | |||
● User-defined websites | Yes | |||
OPC UA | ||||
● Runtime license required | Yes; "Basic" license required | |||
● OPC UA Server | Yes; data access (read, write, subscribe), method call, runtime license required | |||
— Application authentication | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | |||
— User authentication | "anonymous" or by user name & password | |||
— Number of sessions, max. | 10 | |||
— Number of subscriptions per session, max. | 5 | |||
— Sampling interval, min. | 100 ms | |||
— Publishing interval, min. | 200 ms | |||
— Number of server methods, max. | 20 | |||
— Number of monitored items, recommended max. | 1 000 | |||
— Number of server interfaces, max. | 2 | |||
— Number of nodes for user-defined server interfaces, max. | 2 000 | |||
Further protocols | ||||
● MODBUS | Yes | |||
communication functions / header | ||||
S7 communication | ||||
● supported | Yes | |||
● as server | Yes | |||
● as client | Yes | |||
● User data per job, max. | See online help (S7 communication, user data size) | |||
Number of connections | ||||
● overall | PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 64 max | |||
Test commissioning functions | ||||
Status/control | ||||
● Status/control variable | Yes | |||
● Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | |||
Forcing | ||||
● Forcing | Yes | |||
Diagnostic buffer | ||||
● present | Yes | |||
Traces | ||||
● Number of configurable Traces | 2 | |||
● Memory size per trace, max. | 512 kbyte | |||
Interrupts/diagnostics/status information | ||||
Diagnostics indication LED | ||||
● RUN/STOP LED | Yes | |||
● ERROR LED | Yes | |||
● MAINT LED | Yes | |||
Integrated Functions | ||||
Frequency measurement | Yes | |||
controlled positioning | Yes | |||
Number of position-controlled positioning axes, max. | 8 | |||
Number of positioning axes via pulse-direction interface | 4; With integrated outputs | |||
PID controller | Yes | |||
Number of alarm inputs | 4 | |||
Number of pulse outputs | 4 | |||
Limit frequency (pulse) | 100 kHz | |||
Potential separation | ||||
Potential separation digital inputs | ||||
● Potential separation digital inputs | No | |||
● between the channels, in groups of | 1 | |||
Potential separation digital outputs | ||||
● Potential separation digital outputs | Yes | |||
● between the channels | No | |||
● between the channels, in groups of | 1 | |||
EMC | ||||
Interference immunity against discharge of static electricity | ||||
● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes | |||
— Test voltage at air discharge | 8 kV | |||
— Test voltage at contact discharge | 6 kV | |||
Interference immunity to cable-borne interference | ||||
● Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes | |||
● Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes | |||
Interference immunity against voltage surge | ||||
● Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes | |||
Interference immunity against conducted variable disturbance induced by high-frequency fields | ||||
● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes | |||
Emission of radio interference acc. to EN 55 011 | ||||
● Limit class A, for use in industrial areas | Yes; Group 1 | |||
● Limit class B, for use in residential areas | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 | |||
Degree and class of protection | ||||
IP degree of protection | IP20 | |||
Standards, approvals, certificates | ||||
CE mark | Yes | |||
UL approval | Yes | |||
cULus | Yes | |||
FM approval | Yes | |||
RCM (formerly C-TICK) | Yes | |||
KC approval | Yes | |||
Marine approval | Yes | |||
Ambient conditions | ||||
Free fall | ||||
● Fall height, max. | 0.3 m; five times, in product package | |||
Ambient temperature during operation | ||||
● min. | -20 °C | |||
● max. | 60 °C; Number of simultaneously activated inputs or outputs 4 or 3 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 or 6 at 55 °C horizontal or 45 °C vertical | |||
● horizontal installation, min. | -20 °C | |||
● horizontal installation, max. | 60 °C | |||
● vertical installation, min. | -20 °C | |||
● vertical installation, max. | 50 °C | |||
Ambient temperature during storage/transportation | ||||
● min. | -40 °C | |||
● max. | 70 °C | |||
Air pressure acc. to IEC 60068-2-13 | ||||
● Operation, min. | 795 hPa | |||
● Operation, max. | 1 080 hPa | |||
● Storage/transport, min. | 660 hPa | |||
● Storage/transport, max. | 1 080 hPa | |||
Altitude during operation relating to sea level | ||||
● Installation altitude, min. | -1 000 m | |||
● Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |||
Relative humidity | ||||
● Operation, max. | 95 %; no condensation | |||
Vibrations | ||||
● Vibration resistance during operation acc. to IEC 60068-2-6 | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail | |||
● Operation, tested according to IEC 60068-2-6 | Yes | |||
Shock testing | ||||
● tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms | |||
Pollutant concentrations | ||||
● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free | |||
configuration / header | ||||
configuration / programming / header | ||||
Programming language | ||||
— LAD | Yes | |||
— FBD | Yes | |||
— SCL | Yes | |||
Know-how protection | ||||
● User program protection/password protection | Yes | |||
● Copy protection | Yes | |||
● Block protection | Yes | |||
Access protection | ||||
● protection of confidential configuration data | Yes | |||
● Protection level: Write protection | Yes | |||
● Protection level: Read/write protection | Yes | |||
● Protection level: Complete protection | Yes | |||
programming / cycle time monitoring / header | ||||
● adjustable | Yes | |||

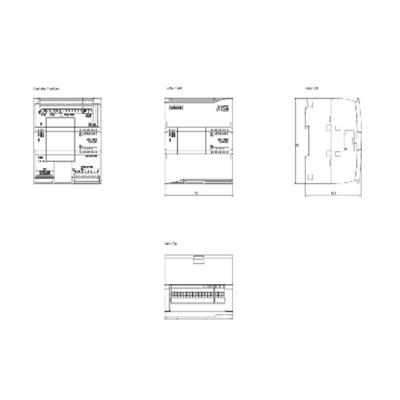

Dimensions | ||||
Width | 90 mm | |||
Height | 100 mm | |||
Depth | 75 mm | |||
Weights | ||||
Weight, approx. | 370 g | |||
Company Profile
ABOUT
COMPANY
The company adheres to the mission of making "smart manufacturing simpler" and the vision of “where there is smart manufacturing, there is Dr Gong Group”, aiming to become a provider of intelligent service solutions and to promote the upgrading of the intelligent industry. The company's business covers four core areas of intelligent equipment, industrial internet, industrial automation, and industrial equipment export. It is committed to building a one-stop supply of industry robots, intelligent equipment, automation equipment, and components. The company is supported by platform and driven by information and digitization, fully integrating industrial chain resources, linking terminal intelligent factories, automation integrators, and upstream and downstream resources of the intelligent equipment industry. Starting with standard setting and product development, it follows the development path of "product supply-platform integration-ecological drive" and gradually increases the coverage of standardized, modular, and componentized parts in robot workstations, intelligent equipment, and automation equipment, improves the supply efficiency of automation equipment, reduces overall costs, and promotes the technological progress of China's intelligent equipment industry. The company will continue to deepen the fields of robots, artificial intelligence, industrial automation equipment, and intelligent manufacturing, solidly research and develop, innovate, and assist in the automation and intelligence of the manufacturing industry, based in China, and empower "Made in China" to innovate the world's manufacturing industry.
Packing & Delivery
FAQ
1. Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Want to Know more details about this product
