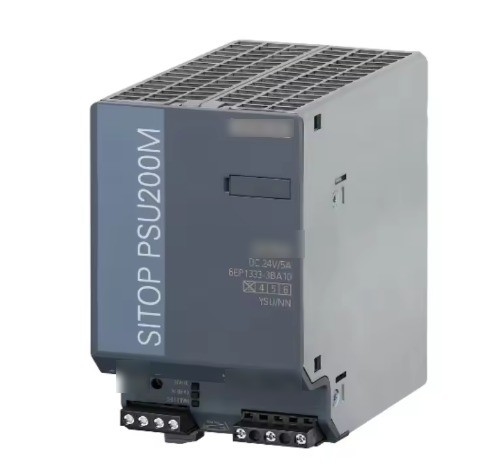

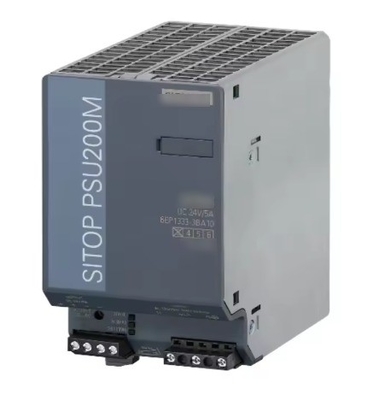

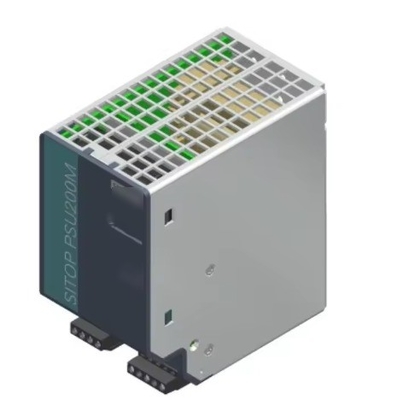

Memory Other SITOP PSU200M Power Supply Single and Dual-phase DC 24V/5A 6EP1333-3BA10
Product Details:
| Place of Origin: | Romania, Germany |
| Brand Name: | other |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $219.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Memory: | Other | I/O Number: | Other |
|---|---|---|---|
| Communication Interface: | Other | Brand: | Other |
| Condition: | 100% Original Brand | Package: | Carton Package |
| Warranty: | One Year | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Application: | Indusrtial Automation | Quality: | 100% Strictly Tested |
Product Description
Specification
Input | ||||
type of the power supply network | 1-phase and 2-phase AC | |||
supply voltage at AC | ||||
● initial value | Set by means of selector switch on the device; starting from Vin > 90/180 V | |||
supply voltage | ||||
● 1 at AC | 120 ... 230 V | |||
● 2 at AC | 230 ... 500 V | |||
input voltage | ||||
● 1 at AC | 85 ... 264 V | |||
● 2 at AC | 176 ... 550 V | |||
design of input wide range input | Yes | |||
overvoltage overload capability | 1300 Vpeak, 1.3 ms | |||
operating condition of the mains buffering | at Vin = 120/230 V, typ. 150 ms at Vin = 400 V | |||
buffering time for rated value of the output current in the event of power failure minimum | 25 ms | |||
operating condition of the mains buffering | at Vin = 120/230 V, typ. 150 ms at Vin = 400 V | |||
line frequency | ||||
● 1 rated value | 50 Hz | |||
● 2 rated value | 60 Hz | |||
line frequency | 47 ... 63 Hz | |||
input current | ||||
● at rated input voltage 120 V | 2.2 A | |||
● at rated input voltage 230 V | 1.2 A | |||
● at rated input voltage 500 V | 0.61 A | |||
current limitation of inrush current at 25 °C maximum | 35 A | |||
I2t value maximum | 1.7 A²·s | |||
fuse protection type | T 3.15 A (not accessible) | |||
● in the feeder | Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711-1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V | |||
Output | ||||
voltage curve at output | Controlled, isolated DC voltage | |||
output voltage at DC rated value | 24 V | |||
output voltage | ||||
● at output 1 at DC rated value | 24 V | |||
relative overall tolerance of the voltage | 3 % | |||
relative control precision of the output voltage | ||||
● on slow fluctuation of input voltage | 0.1 % | |||
● on slow fluctuation of ohm loading | 0.1 % | |||
residual ripple | ||||
● maximum | 50 mV | |||
voltage peak | ||||
● maximum | 200 mV | |||
adjustable output voltage | 24 ... 28.8 V | |||
product function output voltage adjustable | Yes | |||
type of output voltage setting | via potentiometer | |||
display version for normal operation | Green LED for 24 V OK | |||
type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" | |||
behavior of the output voltage when switching on | Overshoot of Vout approx. 3 % | |||
response delay maximum | 1 s | |||
voltage increase time of the output voltage | ||||
● typical | 50 ms | |||
output current | ||||
● rated value | 5 A | |||
● rated range | 0 ... 5 A | |||
supplied active power typical | 120 W | |||
short-term overload current | ||||
● at short-circuit during operation typical | 15 A | |||
duration of overloading capability for excess current | ||||
● at short-circuit during operation | 25 ms | |||
constant overload current | ||||
● on short-circuiting during the start-up typical | 6 A | |||
product feature | ||||
● bridging of equipment | Yes; switchable characteristic | |||
number of parallel-switched equipment resources for increasing the power | 2 | |||
Efficiency | ||||
efficiency in percent | 88 % | |||
power loss [W] | ||||
● at rated output voltage for rated value of the output current typical | 17 W | |||
● during no-load operation maximum | 4 W | |||
Closed-loop control | ||||
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % | |||
relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 3 % | |||
setting time | ||||
● load step 50 to 100% typical | 2 ms | |||
● load step 100 to 50% typical | 2 ms | |||
setting time | ||||
● maximum | 5 ms | |||
Protection and monitoring | ||||
design of the overvoltage protection | < 35 V | |||
● typical | 6 A | |||
property of the output short-circuit proof | Yes | |||
design of short-circuit protection | Alternatively, constant current characteristic approx. 5.5 A or latching shutdown | |||
enduring short circuit current RMS value | ||||
● typical | 6 A | |||
display version for overload and short circuit | LED yellow for "overload", LED red for "latching shutdown" | |||
Safety | ||||
galvanic isolation between input and output | Yes | |||
galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 | |||
operating resource protection class | Class I | |||
leakage current | ||||
● maximum | 3.5 mA | |||
● typical | 0.25 mA | |||
protection class IP | IP20 | |||
Approvals | ||||
certificate of suitability | ||||
● CE marking | Yes | |||
● UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) | |||
● CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) | |||
● NEC Class 2 | No | |||
● EAC approval | Yes | |||
● Regulatory Compliance Mark (RCM) | Yes | |||
type of certification | ||||
● BIS | Yes | |||
● CB-certificate | Yes | |||
certificate of suitability | ||||
● IECEx | No | |||
● ATEX | No | |||
● ULhazloc approval | No | |||
● cCSAus, Class 1, Division 2 | No | |||
● FM registration | No | |||
certificate of suitability shipbuilding approval | Yes | |||
Marine classification association | ||||
● American Bureau of Shipping Europe Ltd. (ABS) | Yes | |||
● French marine classification society (BV) | No | |||
● Lloyds Register of Shipping (LRS) | No | |||
EMC | ||||
standard | ||||
● for emitted interference | EN 55022 Class B | |||
● for mains harmonics limitation | EN 61000-3-2 | |||
● for interference immunity | EN 61000-6-2 | |||
environmental conditions | ||||
ambient temperature | ||||
● during operation | -25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage | |||
● during transport | -40 ... +85 °C | |||
● during storage | -40 ... +85 °C | |||
environmental category according to IEC 60721 | Climate class 3K3, 5 … 95% no condensation | |||
Mechanics | ||||
type of electrical connection | screw-type terminals | |||
● at input | L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded | |||
● at output | +, -: 2 screw terminals each for 0.2 ... 2.5 mm² | |||
● for auxiliary contacts | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm² | |||

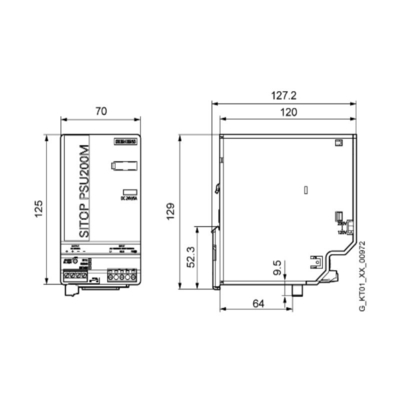

width of the enclosure | 70 mm | |||
height of the enclosure | 125 mm | |||
depth of the enclosure | 121 mm | |||
required spacing | ||||
● top | 50 mm | |||
● bottom | 50 mm | |||
● left | 0 mm | |||
● right | 0 mm | |||
net weight | 0.6 kg | |||
product feature of the enclosure housing can be lined up | Yes | |||
fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 | |||
electrical accessories | Buffer module | |||
MTBF at 40 °C | 1 123 973 h | |||
other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) | |||
