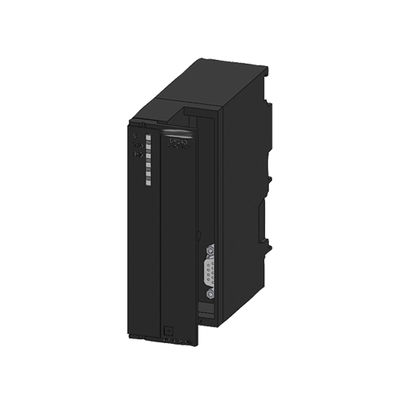

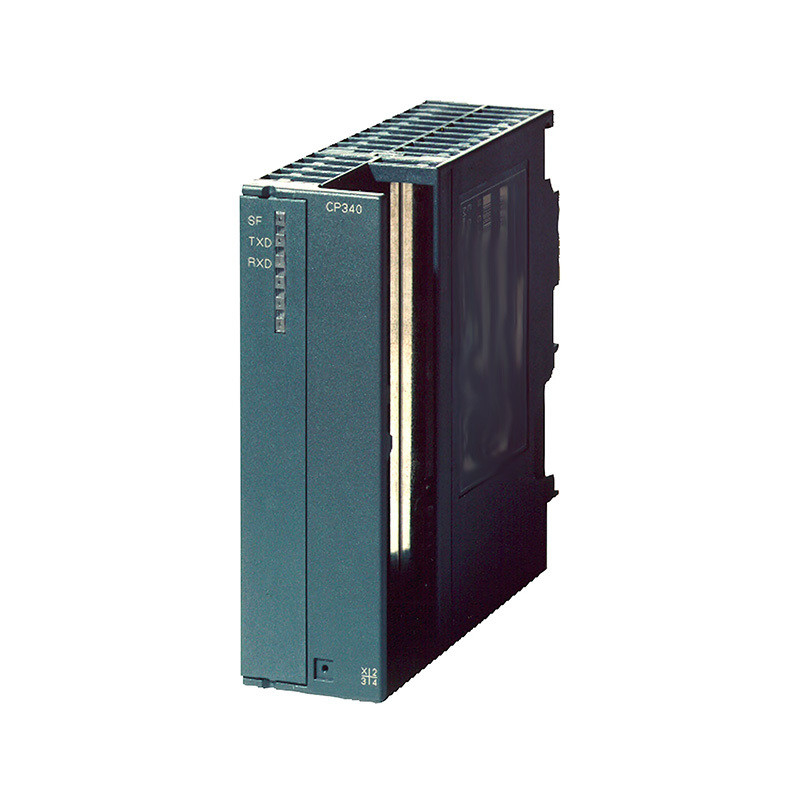

Original S7-300 CP 340 Communication Processor with 20MA Interface 6ES7340-1BH02-0AE0
Product Details:
| Place of Origin: | Germany, Germany |
| Brand Name: | other |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $854.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Memory: | Other | I/O Number: | Other |
|---|---|---|---|
| Communication Interface: | Other | Brand: | Siemens |
| Condition: | 100% Original Brand | Package: | Carton Package |
| Warranty: | One Year | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Application: | Indusrtial Automation | Quality: | 100% Strictly Tested |
Product Description
Specification
General information | ||||
Product type designation | CP 340 | |||
Supply voltage | ||||
Rated value (DC) | ||||
● 24 V DC | No; Power supply via backplane bus 5V | |||
Input current | ||||
from backplane bus 5 V DC, max. | 190 mA | |||
Power loss | ||||
Power loss, typ. | 0.85 W | |||
Power loss, max. | 0.95 W | |||
Interfaces | ||||
Interfaces/bus type | 20 mA (TTY) | |||
Number of interfaces | 1; Isolated | |||
Transmission rate, min. | 2.4 kbit/s | |||
Transmission rate, max. | 19.2 kbit/s | |||
Point-to-point connection | ||||
● Cable length, max. | 1 000 m; 100 m active, 1 000 m passive | |||
● supported printers | HP-Deskjet, HP-Laserjet, IBM-Proprinter, user-defined | |||
● Connector type | 9-pin sub D socket | |||
Integrated protocol driver | ||||
— 3964 (R) | Yes | |||
— ASCII | Yes | |||
— RK 512 | No | |||
— customer-specific drivers reloadable | No | |||
Telegram length, max. | ||||
— 3964 (R) | 1 024 byte | |||
— ASCII | 1 024 byte | |||
Transmission rate, 20 mA (TTY) | ||||
— with 3964 (R) protocol, max. | 19.2 kbit/s | |||
— with ASCII protocol, max. | 9.6 kbit/s | |||
— with printer driver, max. | 9.6 kbit/s | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● min. | 0 °C | |||
● max. | 60 °C | |||
Ambient temperature during storage/transportation | ||||
● min. | -40 °C | |||
● max. | 70 °C | |||
Software | ||||
Block | ||||
● FB length in RAM, max. | 2 700 byte; Data communication, sending and receiving | |||
connection method | ||||
Design of electrical connection for supply voltage | Over backplane bus | |||

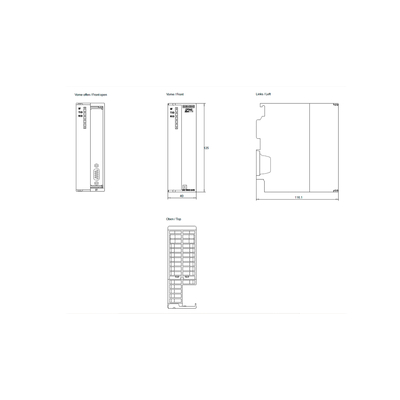

Dimensions | ||||
Width | 40 mm | |||
Height | 125 mm | |||
Depth | 120 mm | |||
Weights | ||||
Weight, approx. | 300 g | |||
