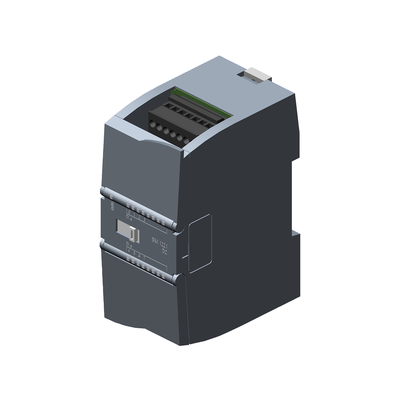

Brandly SIMATIC S7-1200 SM 1221 PLC Expansion Module for Siemens Automation Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $123.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original Brand | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Service: | One-stop Service | Quality: | 100% Strictly Tested |
| Application: | Automation Industrial | ||
Product Description
Specification
General information | ||||
Product type designation | SM 1221, DI 8x24 V DC | |||
Supply voltage | ||||
Rated value (DC) | 24 V | |||
permissible range, lower limit (DC) | 20.4 V | |||
permissible range, upper limit (DC) | 28.8 V | |||
Input current | ||||
from backplane bus 5 V DC, max. | 105 mA | |||
Digital inputs | ||||
● from load voltage L+ (without load), max. | 4 mA; per channel | |||
output voltage / header | ||||
supply voltage of the transmitters / header | ||||
● present | Yes | |||
Power loss | ||||
Power loss, typ. | 1.5 W | |||

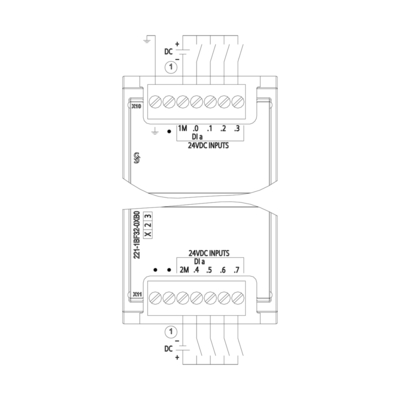

Digital inputs | ||||
Number of digital inputs | 8 | |||
● in groups of | 2 | |||
Input characteristic curve in accordance with IEC 61131, type 1 | Yes | |||
Number of simultaneously controllable inputs | ||||
all mounting positions | ||||
— up to 40 °C, max. | 8 | |||
horizontal installation | ||||
— up to 40 °C, max. | 8 | |||
— up to 50 °C, max. | 8 | |||
vertical installation | ||||
— up to 40 °C, max. | 8 | |||
Input voltage | ||||
● Rated value (DC) | 24 V | |||
● for signal "0" | 5 V DC at 1 mA | |||
● for signal "1" | 15 V DC at 2.5 mA | |||
Input current | ||||
● for signal "0", max. (permissible quiescent current) | 1 mA | |||
● for signal "1", min. | 2.5 mA | |||
● for signal "1", typ. | 4 mA | |||
Input delay (for rated value of input voltage) | ||||
for standard inputs | ||||
— parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four | |||
for interrupt inputs | ||||
— parameterizable | Yes | |||
Cable length | ||||
● shielded, max. | 500 m | |||
● unshielded, max. | 300 m | |||
Interrupts/diagnostics/status information | ||||
Alarms | ||||
● Diagnostic alarm | Yes | |||
Diagnostics indication LED | ||||
● for status of the inputs | Yes | |||
Potential separation | ||||
Potential separation digital inputs | ||||
● between the channels, in groups of | 2 | |||
Degree and class of protection | ||||
IP degree of protection | IP20 | |||
Standards, approvals, certificates | ||||
CE mark | Yes | |||
CSA approval | Yes | |||
UL approval | Yes | |||
cULus | Yes | |||
FM approval | Yes | |||
RCM (formerly C-TICK) | Yes | |||
KC approval | Yes | |||
Marine approval | Yes | |||
Ambient conditions | ||||
Free fall | ||||
● Fall height, max. | 0.3 m; five times, in product package | |||
Ambient temperature during operation | ||||
● min. | -20 °C | |||
● max. | 60 °C | |||
● horizontal installation, min. | -20 °C | |||
● horizontal installation, max. | 60 °C | |||
● vertical installation, min. | -20 °C | |||
● vertical installation, max. | 50 °C | |||
● permissible temperature change | 5°C to 55°C, 3°C / minute | |||
Ambient temperature during storage/transportation | ||||
● min. | -40 °C | |||
● max. | 70 °C | |||
Air pressure acc. to IEC 60068-2-13 | ||||
● Storage/transport, min. | 660 hPa | |||
● Storage/transport, max. | 1 080 hPa | |||
Relative humidity | ||||
● Operation at 25 ℃ without condensation, max. | 95 % | |||
connection method | ||||
required front connector | Yes | |||
Mechanics/material | ||||
Enclosure material (front) | ||||
● Plastic | Yes | |||

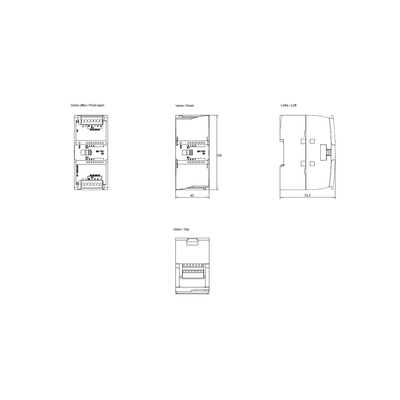

Dimensions | ||||
Width | 45 mm | |||
Height | 100 mm | |||
Depth | 75 mm | |||
Weights | ||||
Weight, approx. | 170 g | |||
