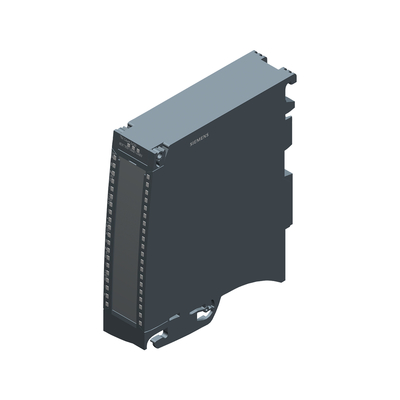

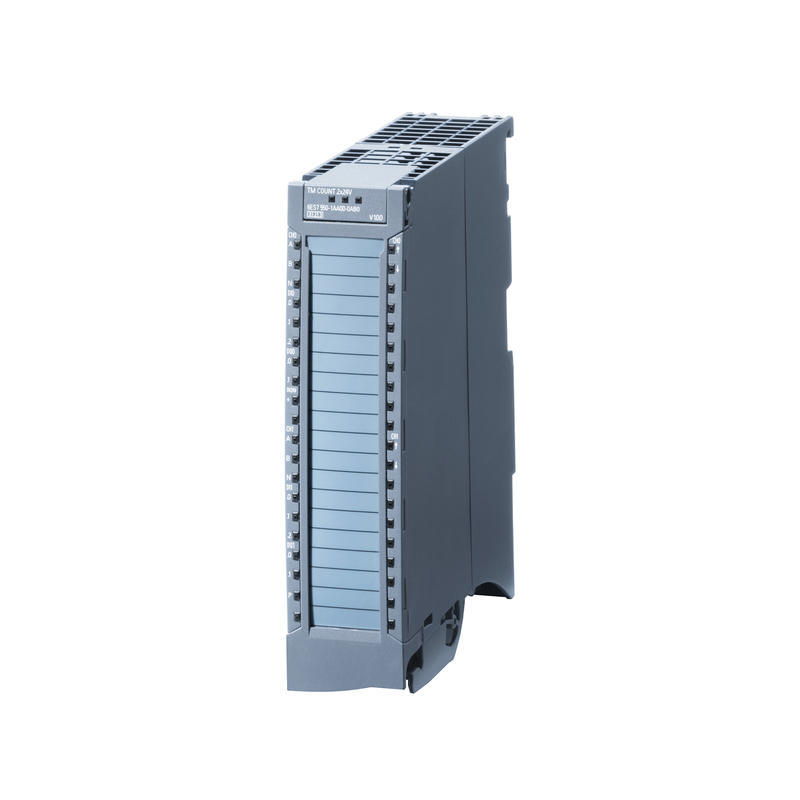

Siemens SIMATIC S7-1500 TM Count 2x24V Counter Module 6ES7550-1AA01-0AB0 100% Tested
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $535.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original Brand | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Service: | One-stop Service | Quality: | 100% Strictly Tested |
| Application: | Automation Industrial | ||
Product Description

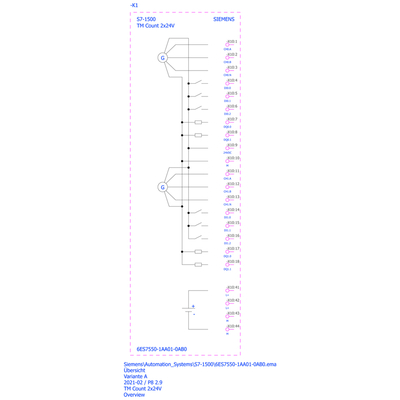

Specification
General information | ||||
Product type designation | TM Count 2x24V | |||
Firmware version | V2.0 | |||
● FW update possible | Yes | |||
Product function | ||||
● I&M data | Yes; I&M0 to I&M3 | |||
● Isochronous mode | Yes | |||
Engineering with | ||||
● STEP 7 TIA Portal configurable/integrated from version | V16 with HSP 0332 / V17 | |||
● PROFIBUS from GSD version/GSD revision | GSD Revision 5 | |||
● PROFINET from GSD version/GSD revision | V2.3 / - | |||
Installation type/mounting | ||||
Rail mounting | Yes; S7-1500 mounting rail | |||
Supply voltage | ||||
Load voltage L+ | ||||
● Rated value (DC) | 24 V | |||
● permissible range, lower limit (DC) | 19.2 V | |||
● permissible range, upper limit (DC) | 28.8 V | |||
● Reverse polarity protection | Yes | |||
Input current | ||||
Current consumption, max. | 75 mA; without load | |||
Encoder supply | ||||
Number of outputs | 1; A common 24V encoder supply for both channels | |||
24 V encoder supply | ||||
● 24 V | Yes; L+ (-0.8 V) | |||
● Short-circuit protection | Yes | |||
● Output current, max. | 1 A; total current of all encoders/channels | |||
Power | ||||
Power available from the backplane bus | 1.3 W | |||
Power loss | ||||
Power loss, typ. | 4 W | |||
Address area | ||||
Address space per module | ||||
● Inputs | 32 byte; 16 bytes per channel; 4 bytes for fast mode | |||
● Outputs | 24 byte; 12 bytes per channel; 4 bytes for Motion Control, 0 bytes for fast mode | |||
Digital inputs | ||||
Number of digital inputs | 6; 3 per channel | |||
Digital inputs, parameterizable | Yes | |||
Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |||
Digital input functions, parameterizable | ||||
● Gate start/stop | Yes | |||
● Capture | Yes | |||
● Synchronization | Yes | |||
● Freely usable digital input | Yes | |||
● Probe | Yes | |||
Input voltage | ||||
● Type of input voltage | DC | |||
● Rated value (DC) | 24 V | |||
● for signal "0" | -5 ... +5 V | |||
● for signal "1" | +11 to +30V | |||
● permissible voltage at input, min. | -30 V; -5 V continuous, -30 V brief reverse polarity protection | |||
● permissible voltage at input, max. | 30 V | |||
Input current | ||||
● for signal "1", typ. | 2.5 mA | |||
Input delay (for rated value of input voltage) | ||||
for standard inputs | ||||
— parameterizable | Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms | |||
— at "0" to "1", min. | 6 µs; for parameterization "none" | |||
— at "1" to "0", min. | 6 µs; for parameterization "none" | |||
for technological functions | ||||
— parameterizable | Yes | |||
Cable length | ||||
● shielded, max. | 1 000 m | |||
● unshielded, max. | 600 m | |||
Digital outputs | ||||
Type of digital output | Transistor | |||
Number of digital outputs | 4; 2 per channel | |||
Digital outputs, parameterizable | Yes | |||
Short-circuit protection | Yes; electronic/thermal | |||
● Response threshold, typ. | 1 A | |||
Limitation of inductive shutdown voltage to | L+ (-53 V) | |||
Controlling a digital input | Yes | |||
Digital output functions, parameterizable | ||||
● Switching tripped by comparison values | Yes | |||
● Freely usable digital output | Yes | |||
Switching capacity of the outputs | ||||
● with resistive load, max. | 0.5 A; Per digital output | |||
● on lamp load, max. | 5 W | |||
Load resistance range | ||||
● lower limit | 48 Ω | |||
● upper limit | 12 kΩ | |||
Output voltage | ||||
● Type of output voltage | DC | |||
● for signal "1", min. | 23.2 V; L+ (-0.8 V) | |||
Output current | ||||
● for signal "1" rated value | 0.5 A; Per digital output | |||
● for signal "1" permissible range, max. | 0.6 A; Per digital output | |||
● for signal "1" minimum load current | 2 mA | |||
● for signal "0" residual current, max. | 0.5 mA | |||
Output delay with resistive load | ||||
● "0" to "1", max. | 50 µs | |||
● "1" to "0", max. | 50 µs | |||
Switching frequency | ||||
● with resistive load, max. | 10 kHz | |||
● with inductive load, max. | 0.5 Hz; Acc. to IEC 60947-5-1, DC-13; observe derating curve | |||
● on lamp load, max. | 10 Hz | |||
Total current of the outputs | ||||
● Current per module, max. | 2 A | |||
Cable length | ||||
● shielded, max. | 1 000 m | |||
● unshielded, max. | 600 m | |||
Encoder | ||||
Connectable encoders | ||||
● 2-wire sensor | Yes | |||
— permissible quiescent current (2-wire sensor), max. | 1.5 mA | |||
Encoder signals, incremental encoder (asymmetrical) | ||||
● Input voltage | 24 V | |||
● Input frequency, max. | 200 kHz | |||
● Counting frequency, max. | 800 kHz; with quadruple evaluation | |||
● Cable length, shielded, max. | 600 m; depending on input frequency, encoder and cable quality; max. 50 m at 200 kHz | |||
● Signal filter, parameterizable | Yes | |||
● Incremental encoder with A/B tracks, 90° phase offset | Yes | |||
● Incremental encoder with A/B tracks, 90° phase offset and zero track | Yes | |||
● pulse encoder | Yes | |||
● pulse encoder with direction | Yes | |||
● pulse encoder with one impulse signal per count direction | Yes | |||
Interface types | ||||
● Source/sink input | Yes | |||
● Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |||
Interrupts/diagnostics/status information | ||||
Alarms | ||||
● Diagnostic alarm | Yes | |||
● Hardware interrupt | Yes | |||
Diagnoses | ||||
● Monitoring the supply voltage | Yes | |||
● Wire-break | Yes | |||
● Short-circuit | Yes | |||
● A/B transition error at incremental encoder | Yes | |||
Diagnostics indication LED | ||||
● RUN LED | Yes; green LED | |||
● ERROR LED | Yes; red LED | |||
● MAINT LED | Yes; Yellow LED | |||
● Monitoring of the supply voltage (PWR-LED) | Yes; green LED | |||
● Channel status display | Yes; green LED | |||
● for channel diagnostics | Yes; red LED | |||
Integrated Functions | ||||
Counter | Yes | |||
● Number of counters | 2 | |||
● Counting frequency, max. | 800 kHz; with quadruple evaluation | |||
Fast mode | Yes | |||
Counting functions | ||||
● Can be used with TO High_Speed_Counter | Yes | |||
● Continuous counting | Yes | |||
● Counter response parameterizable | Yes | |||
● Hardware gate via digital input | Yes | |||
● Software gate | Yes | |||
● Event-controlled stop | Yes | |||
● Synchronization via digital input | Yes | |||
● Counting range, parameterizable | Yes | |||
Comparator | ||||
— Number of comparators | 2; Per channel | |||
— Direction dependency | Yes | |||
— Can be changed from user program | Yes | |||
Position detection | ||||
● Incremental acquisition | Yes | |||
● Suitable for S7-1500 Motion Control | Yes | |||
● suitable for SIMOTION | Yes | |||
Measuring functions | ||||
● Measuring time, parameterizable | Yes | |||
● Dynamic measurement period adjustment | Yes | |||
● Number of thresholds, parameterizable | 2 | |||
Measuring range | ||||
— Frequency measurement, min. | 0.04 Hz | |||
— Frequency measurement, max. | 800 kHz | |||
— Cycle duration measurement, min. | 1.25 µs | |||
— Cycle duration measurement, max. | 25 s | |||
Accuracy | ||||
— Frequency measurement | 100 ppm; depending on measuring interval and signal evaluation | |||
— Cycle duration measurement | 100 ppm; depending on measuring interval and signal evaluation | |||
— Velocity measurement | 100 ppm; depending on measuring interval and signal evaluation | |||
Potential separation | ||||
Potential separation channels | ||||
● between the channels | No | |||
● between the channels and backplane bus | Yes | |||
● Between the channels and load voltage L+ | No | |||
Isolation | ||||
Isolation tested with | 707 V DC (type test) | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● horizontal installation, min. | -30 °C | |||
● horizontal installation, max. | 60 °C; Please note derating for inductive loads | |||
● vertical installation, min. | -30 °C | |||
● vertical installation, max. | 40 °C; Please note derating for inductive loads | |||
Altitude during operation relating to sea level | ||||
● Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200MP system manual | |||
Decentralized operation | ||||
to SIMATIC S7-300 | Yes | |||
to SIMATIC S7-400 | Yes | |||
to SIMATIC S7-1200 | Yes | |||
to SIMATIC S7-1500 | Yes | |||
to standard PROFIBUS master | Yes | |||
to standard PROFINET controller | Yes | |||

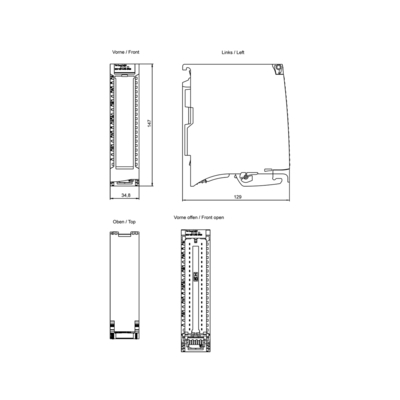

Dimensions | ||||
Width | 35 mm | |||
Height | 147 mm | |||
Depth | 129 mm | |||
Weights | ||||
Weight, approx. | 250 g | |||
Company Profile
ABOUT
COMPANY
The company adheres to the mission of making "smart manufacturing simpler" and the vision of “where there is smart manufacturing, there is Dr Gong Group”, aiming to become a provider of intelligent service solutions and to promote the upgrading of the intelligent industry. The company's business covers four core areas of intelligent equipment, industrial internet, industrial automation, and industrial equipment export. It is committed to building a one-stop supply of industry robots, intelligent equipment, automation equipment, and components. The company is supported by platform and driven by information and digitization, fully integrating industrial chain resources, linking terminal intelligent factories, automation integrators, and upstream and downstream resources of the intelligent equipment industry. Starting with standard setting and product development, it follows the development path of "product supply-platform integration-ecological drive" and gradually increases the coverage of standardized, modular, and componentized parts in robot workstations, intelligent equipment, and automation equipment, improves the supply efficiency of automation equipment, reduces overall costs, and promotes the technological progress of China's intelligent equipment industry. The company will continue to deepen the fields of robots, artificial intelligence, industrial automation equipment, and intelligent manufacturing, solidly research and develop, innovate, and assist in the automation and intelligence of the manufacturing industry, based in China, and empower "Made in China" to innovate the world's manufacturing industry.
Packing & Delivery
FAQ
1. Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Want to Know more details about this product
