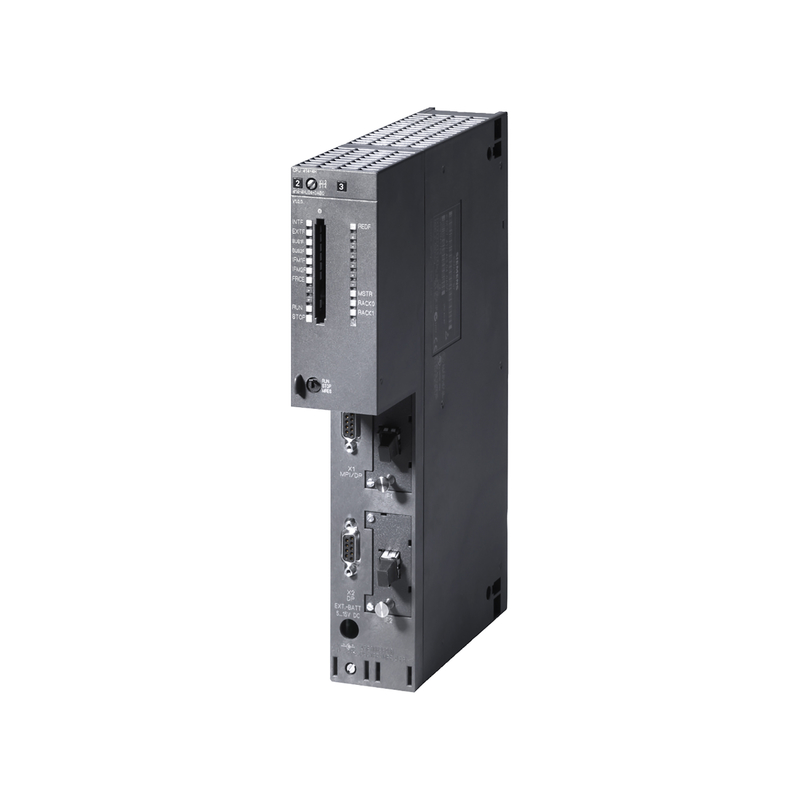

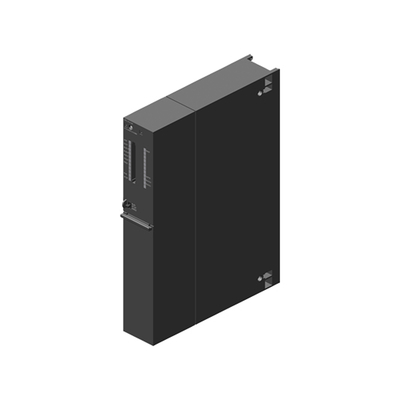

CPU 414H Central Processing Unit for Siemens S7-400H and S7-400F/FH 6ES7414-4HM14-0AB0
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $9,267.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original Brand | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Service: | One-stop Service | Quality: | 100% Strictly Tested |
| Application: | Automation Industrial | ||
Product Description
Specification
General information | ||||
Product type designation | CPU 414-4H | |||
HW functional status | 1 | |||
Firmware version | V4.5 | |||
Engineering with | ||||
● Programming package | STEP 7 V5.3 SP2 or higher with HW update | |||
CiR - Configuration in RUN | ||||
CiR synchronization time, basic load | 100 ms | |||
CiR synchronization time, time per I/O byte | 25 µs | |||
Supply voltage | ||||
Rated value (DC) | Power supply via system power supply | |||
Input current | ||||
from backplane bus 5 V DC, typ. | 1.4 A | |||
from backplane bus 5 V DC, max. | 1.7 A | |||
from backplane bus 24 V DC, max. | 150 mA; Per DP interface | |||
from interface 5 V DC, max. | 90 mA; At each DP interface | |||
Power loss | ||||
Power loss, typ. | 6 W | |||
Memory | ||||
Type of memory | RAM | |||
Work memory | ||||
● integrated | 2.8 Mbyte | |||
● integrated (for program) | 1.4 Mbyte | |||
● integrated (for data) | 1.4 Mbyte | |||
● expandable | No | |||
Load memory | ||||
● expandable FEPROM | Yes | |||
● expandable FEPROM, max. | 64 Mbyte | |||
● integrated RAM, max. | 256 kbyte | |||
● expandable RAM | Yes | |||
● expandable RAM, max. | 64 Mbyte | |||
Backup | ||||
● present | Yes | |||
● with battery | Yes; all data | |||
● without battery | No | |||
Battery | ||||
Backup battery | ||||
● Backup current, typ. | 190 µA; Valid up to 40°C | |||
● Backup current, max. | 660 µA | |||
● Backup time, max. | Dealt with in the module data manual with the secondary conditions and the factors of influence | |||
● Feeding of external backup voltage to CPU | 5 V DC to 15 V DC | |||
CPU processing times | ||||
for bit operations, typ. | 0.045 µs | |||
for word operations, typ. | 0.045 µs | |||
for fixed point arithmetic, typ. | 0.045 µs | |||
for floating point arithmetic, typ. | 0.135 µs | |||
CPU-blocks | ||||
DB | ||||
● Number, max. | 4 095; Number range: 1 to 4095 | |||
● Size, max. | 64 kbyte | |||
FB | ||||
● Number, max. | 2 048; Number range: 0 to 2047 | |||
● Size, max. | 64 kbyte | |||
FC | ||||
● Number, max. | 2 048; Number range: 0 to 2047 | |||
● Size, max. | 64 kbyte | |||
OB | ||||
● Size, max. | 64 kbyte | |||
● Number of time alarm OBs | 4 | |||
● Number of delay alarm OBs | 4 | |||
● Number of cyclic interrupt OBs | 4 | |||
● Number of process alarm OBs | 4 | |||
Nesting depth | ||||
● per priority class | 24 | |||
● additional within an error OB | 1 | |||
Counters, timers and their retentivity | ||||
S7 counter | ||||
● Number | 2 048 | |||
Retentivity | ||||
— adjustable | Yes | |||
— lower limit | 0 | |||
— upper limit | 2 047 | |||
— preset | Z 0 to Z 7 | |||
Counting range | ||||
— lower limit | 0 | |||
— upper limit | 999 | |||
IEC counter | ||||
● present | Yes | |||
● Type | SFB | |||
S7 times | ||||
● Number | 2 048 | |||
Retentivity | ||||
— adjustable | Yes | |||
— lower limit | 0 | |||
— upper limit | 2 047 | |||
— preset | No times retentive | |||
Time range | ||||
— lower limit | 10 ms | |||
— upper limit | 9 990 s | |||
IEC timer | ||||
● present | Yes | |||
● Type | SFB | |||
Data areas and their retentivity | ||||
Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) | |||
Flag | ||||
● Size, max. | 8 kbyte | |||
● Retentivity available | Yes | |||
● Retentivity preset | MB 0 to MB 15 | |||
● Number of clock memories | 8; in 1 memory byte | |||
Local data | ||||
● adjustable, max. | 16 kbyte | |||
● preset | 8 kbyte | |||
Address area | ||||
I/O address area | ||||
● Inputs | 8 kbyte | |||
● Outputs | 8 kbyte | |||
Process image | ||||
● Inputs, adjustable | 8 kbyte | |||
● Outputs, adjustable | 8 kbyte | |||
● Inputs, default | 256 byte | |||
● Outputs, default | 256 byte | |||
● consistent data, max. | 244 byte | |||
● Access to consistent data in process image | Yes | |||
Subprocess images | ||||
● Number of subprocess images, max. | 15 | |||
Digital channels | ||||
● Inputs | 65 536 | |||
— of which central | 65 536 | |||
● Outputs | 65 536 | |||
— of which central | 65 536 | |||
Analog channels | ||||
● Inputs | 4 096 | |||
— of which central | 4 096 | |||
● Outputs | 4 096 | |||
— of which central | 4 096 | |||
Hardware configuration | ||||
Number of expansion units, max. | 21 | |||
connectable OPs | 31 without message processing, 8 with message processing | |||
Multicomputing | No | |||
Interface modules | ||||
● Number of connectable IMs (total), max. | 6 | |||
● Number of connectable IM 460s, max. | 6 | |||
● Number of connectable IM 463s, max. | 4; Single mode only | |||
Number of DP masters | ||||
● integrated | 2 | |||
● via CP | 10 | |||
● Mixed mode IM + CP permitted | No | |||
Number of operable FMs and CPs (recommended) | ||||
● FM | See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections | |||
● CP, PtP | See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections | |||
● PROFIBUS and Ethernet CPs | 14; Of which max. 10 CP as DP master | |||
Slots | ||||
● required slots | 2 | |||
Time of day | ||||
Clock | ||||
● Hardware clock (real-time) | Yes | |||
● retentive and synchronizable | Yes | |||
● Resolution | 1 ms | |||
● Deviation per day (buffered), max. | 1.7 s; Power off | |||
● Deviation per day (unbuffered), max. | 8.6 s; Power on | |||
Operating hours counter | ||||
● Number | 8 | |||
● Number/Number range | 0 to 7 | |||
● Range of values | 0 to 32767 hours | |||
● Granularity | 1 h | |||
● retentive | Yes | |||
Clock synchronization | ||||
● supported | Yes | |||
● to MPI, master | Yes | |||
● to MPI, slave | Yes | |||
● to DP, master | Yes | |||
● to DP, slave | Yes | |||
● in AS, master | Yes | |||
● in AS, slave | Yes | |||
Time difference in system when synchronizing via | ||||
● MPI, max. | 200 ms | |||
Interfaces | ||||
Number of RS 485 interfaces | 2 | |||
Number of other interfaces | 0 | |||
Optical interface | No | |||
1. Interface | ||||
Interface type | MPI/PROFIBUS DP | |||
Isolated | Yes | |||
Interface types | ||||
● RS 485 | Yes | |||
● Output current of the interface, max. | 150 mA | |||
Protocols | ||||
● MPI | Yes | |||
● PROFIBUS DP master | Yes | |||
● PROFIBUS DP slave | No | |||
MPI | ||||
● Number of connections | 32 | |||
● Transmission rate, max. | 12 Mbit/s | |||
Services | ||||
— PG/OP communication | Yes | |||
— Routing | Yes | |||
— Global data communication | No | |||
— S7 basic communication | No | |||
— S7 communication | Yes | |||
PROFIBUS DP master | ||||
● Number of connections, max. | 16 | |||
● Transmission rate, max. | 12 Mbit/s | |||
● Number of DP slaves, max. | 32 | |||
Services | ||||
— PG/OP communication | Yes | |||
— Routing | Yes | |||
— Global data communication | No | |||
— S7 basic communication | No | |||
— S7 communication | Yes | |||
— Equidistance | No | |||
— SYNC/FREEZE | No | |||
— Activation/deactivation of DP slaves | No | |||
— Direct data exchange (slave-to-slave communication) | No | |||
Address area | ||||
— Inputs, max. | 2 kbyte | |||
— Outputs, max. | 2 kbyte | |||
User data per DP slave | ||||
— User data per DP slave, max. | 244 byte | |||
— Inputs, max. | 244 byte | |||
— Outputs, max. | 244 byte | |||
— Slots, max. | 244 | |||
— per slot, max. | 128 byte | |||
2. Interface | ||||
Interface type | PROFIBUS DP | |||
Isolated | Yes | |||
Number of connection resources | 16 | |||
Interface types | ||||
● RS 485 | Yes | |||
● Output current of the interface, max. | 150 mA | |||
Protocols | ||||
● PROFIBUS DP master | Yes | |||
● PROFIBUS DP slave | No | |||
PROFIBUS DP master | ||||
● Number of connections, max. | 16 | |||
● Transmission rate, max. | 12 Mbit/s | |||
● Number of DP slaves, max. | 96 | |||
Services | ||||
— PG/OP communication | Yes | |||
— Routing | Yes | |||
— Global data communication | No | |||
— S7 basic communication | No | |||
— S7 communication | Yes | |||
— Equidistance | No | |||
— SYNC/FREEZE | No | |||
— Activation/deactivation of DP slaves | No | |||
— Direct data exchange (slave-to-slave communication) | No | |||
Address area | ||||
— Inputs, max. | 6 kbyte | |||
— Outputs, max. | 6 kbyte | |||
User data per DP slave | ||||
— User data per DP slave, max. | 244 byte | |||
— Inputs, max. | 244 byte | |||
— Outputs, max. | 244 byte | |||
— Slots, max. | 244 | |||
— per slot, max. | 128 byte | |||
3. Interface | ||||
Interface type | Pluggable synchronization submodule (FO) | |||
Plug-in interface modules | Synchronization submodule IF 960 6ES7960-1AA04-0XA0 or 6ES7960-1AB04-0XA0 | |||
4. Interface | ||||
Interface type | Pluggable synchronization submodule (FO) | |||
Plug-in interface modules | Synchronization submodule IF 960 6ES7960-1AA04-0XA0 or 6ES7960-1AB04-0XA0 | |||
Protocols | ||||
SIMATIC communication | ||||
● S7 routing | Yes | |||
communication functions / header | ||||
PG/OP communication | Yes | |||
● Number of connectable OPs without message processing | 31 | |||
● Number of connectable OPs with message processing | 8 | |||
Global data communication | ||||
● supported | No | |||
S7 basic communication | ||||
● communication function / S7 basic communication | No | |||
S7 communication | ||||
● supported | Yes | |||
● as server | Yes | |||
● as client | Yes | |||
● User data per job, max. | 64 kbyte | |||
● User data per job (of which consistent), max. | 462 byte; 1 variable | |||
S5 compatible communication | ||||
● supported | Yes; (via CP max. 10 and FC AG_SEND and FC AG_RECV) | |||
● User data per job, max. | 8 kbyte | |||
● User data per job (of which consistent), max. | 240 byte | |||
● Number of simultaneous AG-SEND/AG-RECV orders per CPU, max. | 24/24 | |||
Standard communication (FMS) | ||||
● supported | Yes; Via CP and loadable FB | |||
Number of connections | ||||
● overall | 32 | |||
● usable for PG communication | ||||
— reserved for PG communication | 1 | |||
— adjustable for PG communication, max. | 0 | |||
● usable for OP communication | ||||
— reserved for OP communication | 1 | |||
— adjustable for OP communication, max. | 0 | |||
● usable for S7 basic communication | ||||
— reserved for S7 basic communication | 0 | |||
— adjustable for S7 basic communication, max. | 0 | |||
● usable for S7 communication | ||||
— reserved for S7 communication | 0 | |||
— adjustable for S7 communication, max. | 0 | |||
● usable for routing | ||||
— reserved for routing | 0 | |||
— adjustable for routing, max. | 0 | |||
S7 message functions | ||||
Number of login stations for message functions, max. | 8 | |||
Symbol-related messages | No | |||
Program alarms | Yes | |||
simultaneously active Alarm-S blocks, max. | 100 | |||
Alarm 8-blocks | Yes | |||
● Number of instances for alarm 8 and S7 communication blocks, max. | 1 200 | |||
● preset, max. | 900 | |||
Process control messages | Yes | |||
Number of archives that can log on simultaneously (SFB 37 AR_SEND) | 16 | |||
Test commissioning functions | ||||
Status block | Yes | |||
Single step | Yes | |||
Number of breakpoints | 4 | |||
Status/control | ||||
● Status/control variable | Yes | |||
● Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | |||
● Number of variables, max. | 70 | |||
Forcing | ||||
● Forcing | Yes | |||
● Forcing, variables | Inputs/outputs, bit memories, distributed I/Os | |||
● Number of variables, max. | 256 | |||
Diagnostic buffer | ||||
● present | Yes | |||
● Number of entries, max. | 3 200 | |||
— adjustable | Yes | |||
— preset | 120 | |||
configuration / header | ||||
Configuration software | ||||
● STEP 7 | Yes | |||
configuration / programming / header | ||||
● Command set | see instruction list | |||
● Nesting levels | 8 | |||
● Access to consistent data in process image | Yes | |||
● System functions (SFC) | see instruction list | |||
● System function blocks (SFB) | see instruction list | |||
Programming language | ||||
— LAD | Yes | |||
— FBD | Yes | |||
— STL | Yes | |||
— SCL | Yes | |||
— CFC | Yes | |||
— GRAPH | Yes | |||
— HiGraph® | Yes | |||
configuration / programming / number of simultaneously active SFC / header | ||||
— RD_REC | 8 | |||
— WR_REC | 8 | |||
— WR_PARM | 8 | |||
— PARM_MOD | 1 | |||
— WR_DPARM | 2 | |||
— DPNRM_DG | 8 | |||
— RDSYSST | 8 | |||
— DP_TOPOL | 1 | |||
configuration / programming / number of simultaneously active SFB / header | ||||
— RDREC | 8 | |||
— WRREC | 8 | |||
Know-how protection | ||||
● User program protection/password protection | Yes | |||

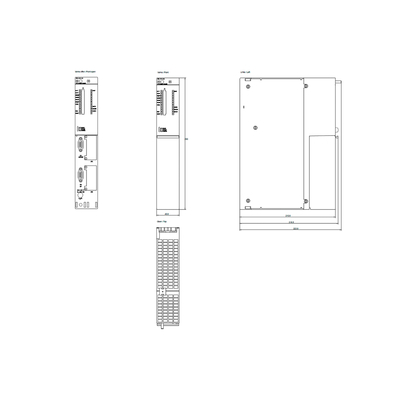

Dimensions | ||||
Width | 50 mm | |||
Height | 290 mm | |||
Depth | 219 mm | |||
Weights | ||||
Weight, approx. | 995 g | |||
Company Profile
ABOUT
COMPANY
The company adheres to the mission of making "smart manufacturing simpler" and the vision of “where there is smart manufacturing, there is Dr Gong Group”, aiming to become a provider of intelligent service solutions and to promote the upgrading of the intelligent industry. The company's business covers four core areas of intelligent equipment, industrial internet, industrial automation, and industrial equipment export. It is committed to building a one-stop supply of industry robots, intelligent equipment, automation equipment, and components. The company is supported by platform and driven by information and digitization, fully integrating industrial chain resources, linking terminal intelligent factories, automation integrators, and upstream and downstream resources of the intelligent equipment industry. Starting with standard setting and product development, it follows the development path of "product supply-platform integration-ecological drive" and gradually increases the coverage of standardized, modular, and componentized parts in robot workstations, intelligent equipment, and automation equipment, improves the supply efficiency of automation equipment, reduces overall costs, and promotes the technological progress of China's intelligent equipment industry. The company will continue to deepen the fields of robots, artificial intelligence, industrial automation equipment, and intelligent manufacturing, solidly research and develop, innovate, and assist in the automation and intelligence of the manufacturing industry, based in China, and empower "Made in China" to innovate the world's manufacturing industry.
Packing & Delivery
FAQ
1. Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Want to Know more details about this product
