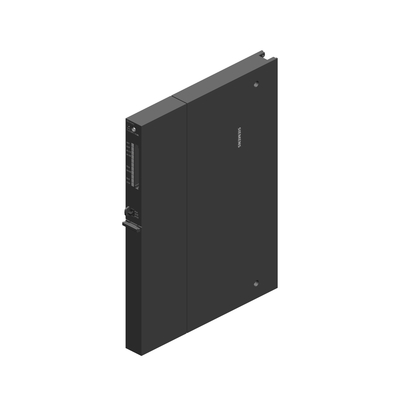

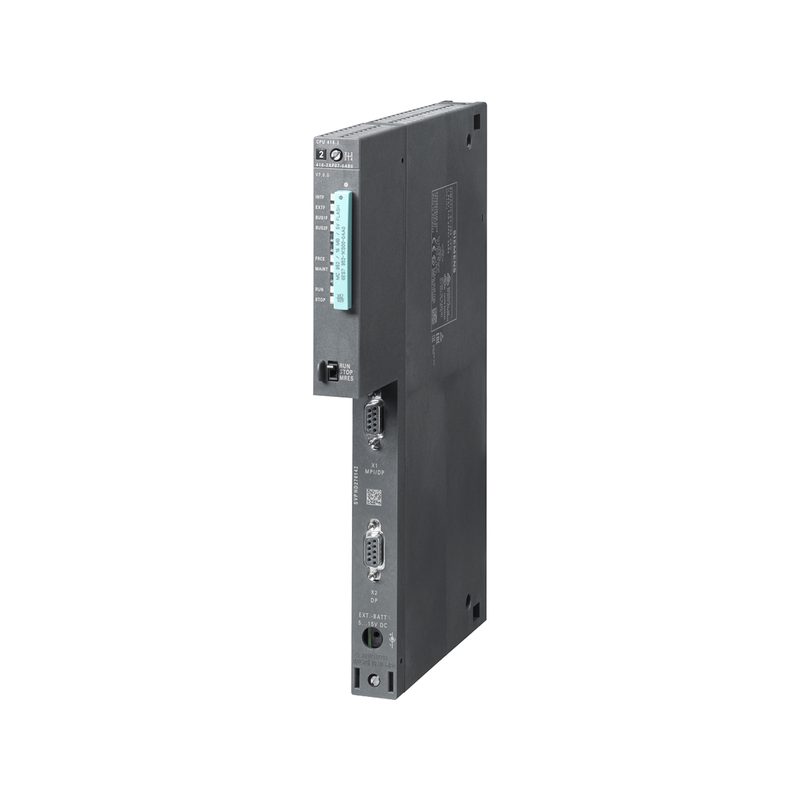

Highly SIMATIC S7-400 CPU 416-2 8 MB Work Memory for PROFIBUS Only 6ES7416-2XP07-0AB0
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $9,473.00/cartons 1-9 cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
General information | ||||
Product type designation | CPU 416-2 | |||
HW functional status | 01 | |||
Firmware version | V7.0 | |||
Product function | ||||
● Isochronous mode | Yes; For PROFIBUS only | |||
Engineering with | ||||
● Programming package | STEP 7 V5.4 or higher with HSP 261 | |||
CiR - Configuration in RUN | ||||
CiR synchronization time, basic load | 100 ms | |||
CiR synchronization time, time per I/O byte | 10 µs | |||
Supply voltage | ||||
Rated value (DC) | Power supply via system power supply | |||
Input current | ||||
from backplane bus 5 V DC, typ. | 0.9 A | |||
from backplane bus 5 V DC, max. | 1.1 A | |||
from backplane bus 24 V DC, max. | 300 mA; 150 mA per DP interface | |||
from interface 5 V DC, max. | 90 mA; At each DP interface | |||
Power loss | ||||
Power loss, typ. | 4.5 W | |||
Power loss, max. | 5.5 W | |||
Memory | ||||
Type of memory | RAM | |||
Work memory | ||||
● integrated | 8 Mbyte | |||
● integrated (for program) | 4 Mbyte | |||
● integrated (for data) | 4 Mbyte | |||
● expandable | No | |||
Load memory | ||||
● expandable FEPROM | Yes; with Memory Card (FLASH) | |||
● expandable FEPROM, max. | 64 Mbyte | |||
● integrated RAM, max. | 1 Mbyte | |||
● expandable RAM | Yes; with Memory Card (RAM) | |||
● expandable RAM, max. | 64 Mbyte | |||
Backup | ||||
● present | Yes | |||
● with battery | Yes; all data | |||
● without battery | No | |||
Battery | ||||
Backup battery | ||||
● Backup current, typ. | 180 µA; up to 40 °C | |||
● Backup current, max. | 850 µA | |||
● Backup time, max. | Dealt with in the module data manual with the secondary conditions and the factors of influence | |||
● Feeding of external backup voltage to CPU | 5 V DC to 15 V DC | |||
CPU processing times | ||||
for bit operations, typ. | 12.5 ns | |||
for word operations, typ. | 12.5 ns | |||
for fixed point arithmetic, typ. | 12.5 ns | |||
for floating point arithmetic, typ. | 25 ns | |||
CPU-blocks | ||||
DB | ||||
● Number, max. | 10 000; Number range: 1 to 16000 | |||
● Size, max. | 64 kbyte | |||
FB | ||||
● Number, max. | 5 000; Number range: 0 to 7999 | |||
● Size, max. | 64 kbyte | |||
FC | ||||
● Number, max. | 5 000; Number range: 0 to 7999 | |||
● Size, max. | 64 kbyte | |||
OB | ||||
● Number, max. | see instruction list | |||
● Size, max. | 64 kbyte | |||
● Number of free cycle OBs | 1; OB 1 | |||
● Number of time alarm OBs | 8; OB 10-17 | |||
● Number of delay alarm OBs | 4; OB 20-23 | |||
● Number of cyclic interrupt OBs | 9; OB 30-38 (shortest cycle that can be set = 500 µs) | |||
● Number of process alarm OBs | 8; OB 40-47 | |||
● Number of DPV1 alarm OBs | 3; OB 55-57 | |||
● Number of isochronous mode OBs | 4; OB 61-64 | |||
● Number of multicomputing OBs | 1; OB 60 | |||
● Number of background OBs | 1; OB 90 | |||
● Number of startup OBs | 3; OB 100-102 | |||
● Number of asynchronous error OBs | 9; OB 80-88 | |||
● Number of synchronous error OBs | 2; OB 121, 122 | |||
Nesting depth | ||||
● per priority class | 24 | |||
● additional within an error OB | 2 | |||
Counters, timers and their retentivity | ||||
S7 counter | ||||
● Number | 2 048 | |||
Retentivity | ||||
— adjustable | Yes | |||
— lower limit | 0 | |||
— upper limit | 2 047 | |||
— preset | Z 0 to Z 7 | |||
Counting range | ||||
— lower limit | 0 | |||
— upper limit | 999 | |||
IEC counter | ||||
● present | Yes | |||
● Type | SFB | |||
● Number | Unlimited (limited only by RAM capacity) | |||
S7 times | ||||
● Number | 2 048 | |||
Retentivity | ||||
— adjustable | Yes | |||
— lower limit | 0 | |||
— upper limit | 2 047 | |||
— preset | No times retentive | |||
Time range | ||||
— lower limit | 10 ms | |||
— upper limit | 9 990 s | |||
IEC timer | ||||
● present | Yes | |||
● Type | SFB | |||
● Number | Unlimited (limited only by RAM capacity) | |||
Data areas and their retentivity | ||||
Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) | |||
Flag | ||||
● Size, max. | 16 kbyte; Size of bit memory address area | |||
● Retentivity available | Yes | |||
● Retentivity preset | MB 0 to MB 15 | |||
● Number of clock memories | 8; in 1 memory byte | |||
Local data | ||||
● adjustable, max. | 32 kbyte | |||
● preset | 16 kbyte | |||
Address area | ||||
I/O address area | ||||
● Inputs | 16 kbyte | |||
● Outputs | 16 kbyte | |||
Process image | ||||
● Inputs, adjustable | 16 kbyte | |||
● Outputs, adjustable | 16 kbyte | |||
● Inputs, default | 512 byte | |||
● Outputs, default | 512 byte | |||
● consistent data, max. | 244 byte | |||
● Access to consistent data in process image | Yes | |||
Subprocess images | ||||
● Number of subprocess images, max. | 15 | |||
Digital channels | ||||
● Inputs | 131 072 | |||
— of which central | 131 072 | |||
● Outputs | 131 072 | |||
— of which central | 131 072 | |||
Analog channels | ||||
● Inputs | 8 192 | |||
— of which central | 8 192 | |||
● Outputs | 8 192 | |||
— of which central | 8 192 | |||
Hardware configuration | ||||
Number of expansion units, max. | 21 | |||
connectable OPs | 95 | |||
Multicomputing | Yes; 4 CPUs max. (with UR1 or UR2) | |||
Interface modules | ||||
● Number of connectable IMs (total), max. | 6 | |||
● Number of connectable IM 460s, max. | 6 | |||
● Number of connectable IM 463s, max. | 4; IM 463-2 | |||
Number of DP masters | ||||
● integrated | 2 | |||
● via CP | 10; CP 443-5 Extended | |||
● via IM 467 | 4 | |||
● Mixed mode IM + CP permitted | No; IM 467 cannot be used jointly with CP 443-5 Ext. or CP 443-1 in PROFINET IO mode | |||
● via interface module | 0 | |||
● Number of pluggable S5 modules (via adapter capsule in central device), max. | 6 | |||
Number of IO Controllers | ||||
● integrated | 0 | |||
● via CP | 4; Max. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode | |||
Number of operable FMs and CPs (recommended) | ||||
● FM | Limited by number of slots and number of connections | |||
● CP, PtP | CP 440: Limited by number of slots; CP 441: limited by number of connections | |||
● PROFIBUS and Ethernet CPs | 14; In total max. 10 CPs as DP master and PROFINET controller, of which up to 10 IMs or CPs as DP master and up to 4 CPs as PROFINET controller | |||
Slots | ||||
● required slots | 1 | |||
Time of day | ||||
Clock | ||||
● Hardware clock (real-time) | Yes | |||
● retentive and synchronizable | Yes | |||
● Resolution | 1 ms | |||
● Deviation per day (buffered), max. | 1.7 s; Power off | |||
● Deviation per day (unbuffered), max. | 8.6 s; For power On | |||
Operating hours counter | ||||
● Number | 16 | |||
● Number/Number range | 0 to 15 | |||
● Range of values | SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours | |||
● Granularity | 1 h | |||
● retentive | Yes | |||
Clock synchronization | ||||
● supported | Yes | |||
● to MPI, master | Yes | |||
● to MPI, slave | Yes | |||
● to DP, master | Yes | |||
● to DP, slave | Yes | |||
● in AS, master | Yes | |||
● in AS, slave | Yes | |||
● on Ethernet via NTP | No; Via CP | |||
● to IF 964 DP | No | |||
Time difference in system when synchronizing via | ||||
● MPI, max. | 200 ms | |||
Interfaces | ||||
Interfaces/bus type | 1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP | |||
Number of RS 485 interfaces | 2; Combined MPI / PROFIBUS DP and PROFIBUS DP | |||
1. Interface | ||||
Interface type | MPI/PROFIBUS DP | |||
Isolated | Yes | |||
Interface types | ||||
● RS 485 | Yes | |||
● Output current of the interface, max. | 150 mA | |||
Protocols | ||||
● MPI | Yes | |||
● PROFIBUS DP master | Yes | |||
● PROFIBUS DP slave | Yes | |||
MPI | ||||
● Number of connections | 44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1 | |||
● Transmission rate, max. | 12 Mbit/s | |||
Services | ||||
— PG/OP communication | Yes | |||
— Routing | Yes | |||
— Global data communication | Yes | |||
— S7 basic communication | Yes | |||
— S7 communication | Yes | |||
— S7 communication, as client | Yes | |||
— S7 communication, as server | Yes | |||
PROFIBUS DP master | ||||
● Number of connections, max. | 32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1 | |||
● Transmission rate, max. | 12 Mbit/s | |||
● Number of DP slaves, max. | 32 | |||
Services | ||||
— PG/OP communication | Yes | |||
— Routing | Yes; S7 routing | |||
— Global data communication | No | |||
— S7 basic communication | Yes | |||
— S7 communication | Yes | |||
— S7 communication, as client | Yes | |||
— S7 communication, as server | Yes | |||
— Equidistance | Yes | |||
— Isochronous mode | Yes | |||
— SYNC/FREEZE | Yes | |||
— Activation/deactivation of DP slaves | Yes | |||
— Direct data exchange (slave-to-slave communication) | Yes | |||
— DPV1 | Yes | |||
Address area | ||||
— Inputs, max. | 2 kbyte | |||
— Outputs, max. | 2 kbyte | |||
User data per DP slave | ||||
— User data per DP slave, max. | 244 byte | |||
— Inputs, max. | 244 byte | |||
— Outputs, max. | 244 byte | |||
— Slots, max. | 244 | |||
— per slot, max. | 128 byte | |||
PROFIBUS DP slave | ||||
● Number of connections | 32 | |||
● GSD file | http://support.automation.siemens.com/WW/view/en/113652 | |||
● Transmission rate, max. | 12 Mbit/s | |||
● automatic baud rate search | No | |||
● Address area, max. | 32; Virtual slots | |||
● User data per address area, max. | 32 byte | |||
— of which consistent, max. | 32 byte | |||
Services | ||||
— PG/OP communication | Yes; with interface active | |||
— Routing | Yes; with interface active | |||
— Global data communication | No | |||
— S7 basic communication | No | |||
— S7 communication | Yes | |||
— S7 communication, as client | Yes | |||
— S7 communication, as server | Yes | |||
— Direct data exchange (slave-to-slave communication) | No | |||
— DPV1 | No | |||
Transfer memory | ||||
— Inputs | 244 byte | |||
— Outputs | 244 byte | |||
2. Interface | ||||
Interface type | PROFIBUS DP | |||
Isolated | Yes | |||
Number of connection resources | 32 | |||
Interface types | ||||
● RS 485 | Yes | |||
● Output current of the interface, max. | 150 mA | |||
Protocols | ||||
● PROFIBUS DP master | Yes | |||
● PROFIBUS DP slave | Yes | |||
PROFIBUS DP master | ||||
● Number of connections, max. | 32 | |||
● Transmission rate, max. | 12 Mbit/s | |||
● Number of DP slaves, max. | 125 | |||
Services | ||||
— PG/OP communication | Yes | |||
— Routing | Yes; S7 routing | |||
— Global data communication | No | |||
— S7 basic communication | Yes | |||
— S7 communication | Yes | |||
— S7 communication, as client | Yes | |||
— S7 communication, as server | Yes | |||
— Equidistance | Yes | |||
— Isochronous mode | Yes | |||
— SYNC/FREEZE | Yes | |||
— Activation/deactivation of DP slaves | Yes | |||
— Direct data exchange (slave-to-slave communication) | Yes | |||
— DPV1 | Yes | |||
Address area | ||||
— Inputs, max. | 8 kbyte | |||
— Outputs, max. | 8 kbyte | |||
User data per DP slave | ||||
— User data per DP slave, max. | 244 byte | |||
— Inputs, max. | 244 byte | |||
— Outputs, max. | 244 byte | |||
— Slots, max. | 244 | |||
— per slot, max. | 128 byte | |||
PROFIBUS DP slave | ||||
● Number of connections | 32 | |||
● GSD file | http://support.automation.siemens.com/WW/view/en/113652 | |||
● Transmission rate, max. | 12 Mbit/s | |||
● Address area, max. | 32 | |||
● User data per address area, max. | 32 byte | |||
— of which consistent, max. | 32 byte | |||
Services | ||||
— Routing | Yes; with interface active | |||
Transfer memory | ||||
— Inputs | 244 byte | |||
— Outputs | 244 byte | |||
Protocols | ||||
SIMATIC communication | ||||
● S7 routing | Yes | |||
Open IE communication | ||||
● ISO-on-TCP (RFC1006) | Via CP 443-1 and loadable FB | |||
— Data length, max. | 1 452 bytes via CP 443-1 Adv. | |||
Web server | ||||
● supported | No | |||
Isochronous mode | ||||
Equidistance | Yes | |||
Number of DP masters with isochronous mode | 2 | |||
User data per isochronous slave, max. | 244 byte | |||
shortest clock pulse | 1 ms; 0.5 ms without use of SFC 126, 127 | |||
max. cycle | 32 ms | |||
communication functions / header | ||||
PG/OP communication | Yes | |||
● Number of connectable OPs without message processing | 95 | |||
● Number of connectable OPs with message processing | 95; When using Alarm_S/SQ and Alarm_D/DQ | |||
Data record routing | Yes | |||
Global data communication | ||||
● supported | Yes | |||
● Number of GD loops, max. | 16 | |||
● Number of GD packets, transmitter, max. | 16 | |||
● Number of GD packets, receiver, max. | 32 | |||
● Size of GD packets, max. | 54 byte | |||
● Size of GD packet (of which consistent), max. | 1 variable | |||
S7 basic communication | ||||
● communication function / S7 basic communication | Yes | |||
● User data per job, max. | 76 byte | |||
● User data per job (of which consistent), max. | 1 variable | |||
S7 communication | ||||
● supported | Yes | |||
● as server | Yes | |||
● as client | Yes | |||
● User data per job, max. | 64 kbyte | |||
● User data per job (of which consistent), max. | 462 byte; 1 variable | |||
S5 compatible communication | ||||
● supported | Yes; Via FC AG_SEND and AG_RECV, max. via 10 CP 443-1 or 443-5 | |||
● User data per job, max. | 8 kbyte | |||
● User data per job (of which consistent), max. | 240 byte | |||
● Number of simultaneous AG-SEND/AG-RECV orders per CPU, max. | 64/64 | |||
Standard communication (FMS) | ||||
● supported | Yes; Via CP and loadable FB | |||
Number of connections | ||||
● overall | 96 | |||
● usable for PG communication | 95 | |||
— reserved for PG communication | 1 | |||
— adjustable for PG communication, max. | 0 | |||
● usable for OP communication | 95 | |||
— reserved for OP communication | 1 | |||
— adjustable for OP communication, max. | 0 | |||
● usable for S7 basic communication | 94 | |||
— reserved for S7 basic communication | 0 | |||
— adjustable for S7 basic communication, max. | 0 | |||
● usable for S7 communication | 94 | |||
— reserved for S7 communication | 0 | |||
— adjustable for S7 communication, max. | 0 | |||
● usable for routing | 47 | |||
— reserved for routing | 0 | |||
— adjustable for routing, max. | 0 | |||
S7 message functions | ||||
Number of login stations for message functions, max. | 95; Max. 95 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC) | |||
Symbol-related messages | Yes | |||
SCAN procedure | Yes | |||
Program alarms | Yes | |||
Process diagnostic messages | Yes | |||
simultaneously active Alarm-S blocks, max. | 1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks | |||
Alarm 8-blocks | Yes | |||
● Number of instances for alarm 8 and S7 communication blocks, max. | 4 000 | |||
● preset, max. | 600 | |||
Process control messages | Yes | |||
Number of archives that can log on simultaneously (SFB 37 AR_SEND) | 32 | |||
Number of messages | ||||
● overall, max. | 1 024 | |||
● in 100 ms grid, max. | 128 | |||
● in 500 ms grid, max. | 512 | |||
● in 1000 ms grid, max. | 1 024 | |||
Number of additional values | ||||
● with 100 ms grid, max. | 1 | |||
● with 500, 1000 ms grid, max. | 10 | |||
Test commissioning functions | ||||
Status block | Yes; Up to 16 simultaneously | |||
Single step | Yes | |||
Number of breakpoints | 16 | |||
Status/control | ||||
● Status/control variable | Yes; Up to 16 variable tables | |||
● Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | |||
● Number of variables, max. | 70; Status/control | |||
Forcing | ||||
● Forcing | Yes | |||
● Forcing, variables | Inputs, outputs, bit memories, peripheral inputs, peripheral outputs | |||
● Number of variables, max. | 512 | |||
Diagnostic buffer | ||||
● present | Yes | |||
● Number of entries, max. | 3 200 | |||
— adjustable | Yes | |||
— preset | 120 | |||
Service data | ||||
● can be read out | Yes | |||
Standards, approvals, certificates | ||||
CE mark | Yes | |||
CSA approval | Yes | |||
UL approval | Yes | |||
cULus | Yes | |||
FM approval | Yes | |||
RCM (formerly C-TICK) | Yes | |||
KC approval | Yes | |||
EAC (formerly Gost-R) | Yes | |||
Use in hazardous areas | ||||
● ATEX | ATEX II 3G Ex nA IIC T4 Gc | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● min. | 0 °C | |||
● max. | 60 °C | |||
configuration / header | ||||
Configuration software | ||||
● STEP 7 | Yes | |||
configuration / programming / header | ||||
● Command set | see instruction list | |||
● Nesting levels | 7 | |||
● Access to consistent data in process image | Yes | |||
● System functions (SFC) | see instruction list | |||
● System function blocks (SFB) | see instruction list | |||
Programming language | ||||
— LAD | Yes | |||
— FBD | Yes | |||
— STL | Yes | |||
— SCL | Yes | |||
— CFC | Yes | |||
— GRAPH | Yes | |||
— HiGraph® | Yes | |||
configuration / programming / number of simultaneously active SFC / header | ||||
— DPSYC_FR | 2; SFC 11; per interface | |||
— D_ACT_DP | 8; SFC 12; per interface | |||
— RD_REC | 8; SFC 59; per interface | |||
— WR_REC | 8; SFC 58; per interface | |||
— WR_PARM | 8; SFC 55; per interface | |||
— PARM_MOD | 1; SFC 57; per interface | |||
— WR_DPARM | 2; SFC 56; per interface | |||
— DPNRM_DG | 8; SFC 13; per interface | |||
— RDSYSST | 8; SFC 51 | |||
— DP_TOPOL | 1; SFC 103; per interface | |||
configuration / programming / number of simultaneously active SFB / header | ||||
— RDREC | 8; SFB 52; per interface, but not more than 32 across all external interfaces | |||
— WRREC | 8; SFB 53; per interface, but not more than 32 across all external interfaces | |||
Know-how protection | ||||
● User program protection/password protection | Yes | |||
● Block encryption | Yes; With S7 block Privacy | |||

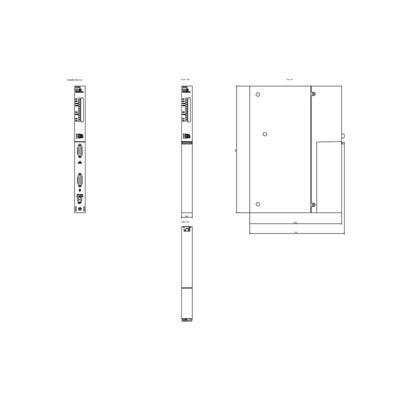

Dimensions | ||||
Width | 25 mm | |||
Height | 290 mm | |||
Depth | 219 mm | |||
Weights | ||||
Weight, approx. | 700 g | |||
Company Profile
ABOUT
COMPANY
The company adheres to the mission of making "smart manufacturing simpler" and the vision of “where there is smart manufacturing, there is Dr Gong Group”, aiming to become a provider of intelligent service solutions and to promote the upgrading of the intelligent industry. The company's business covers four core areas of intelligent equipment, industrial internet, industrial automation, and industrial equipment export. It is committed to building a one-stop supply of industry robots, intelligent equipment, automation equipment, and components. The company is supported by platform and driven by information and digitization, fully integrating industrial chain resources, linking terminal intelligent factories, automation integrators, and upstream and downstream resources of the intelligent equipment industry. Starting with standard setting and product development, it follows the development path of "product supply-platform integration-ecological drive" and gradually increases the coverage of standardized, modular, and componentized parts in robot workstations, intelligent equipment, and automation equipment, improves the supply efficiency of automation equipment, reduces overall costs, and promotes the technological progress of China's intelligent equipment industry. The company will continue to deepen the fields of robots, artificial intelligence, industrial automation equipment, and intelligent manufacturing, solidly research and develop, innovate, and assist in the automation and intelligence of the manufacturing industry, based in China, and empower "Made in China" to innovate the world's manufacturing industry.
Packing & Delivery
FAQ
1. Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Want to Know more details about this product
