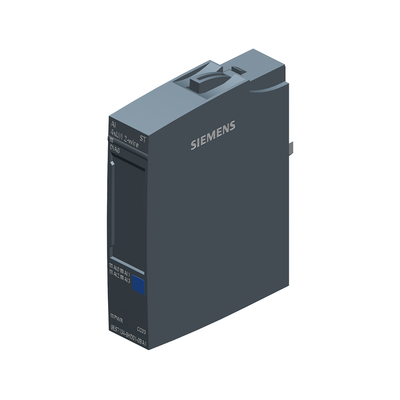

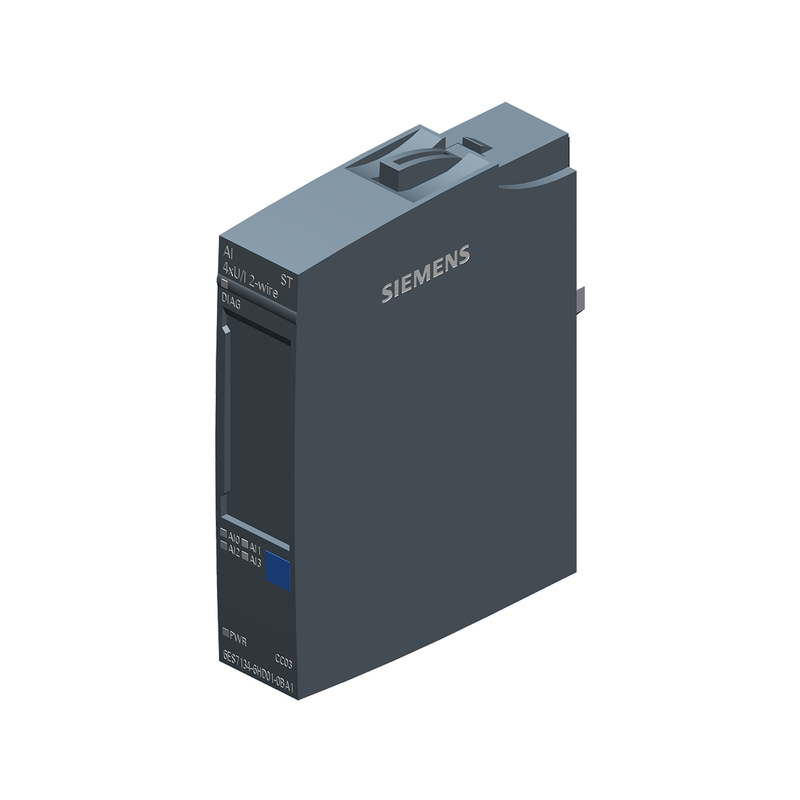

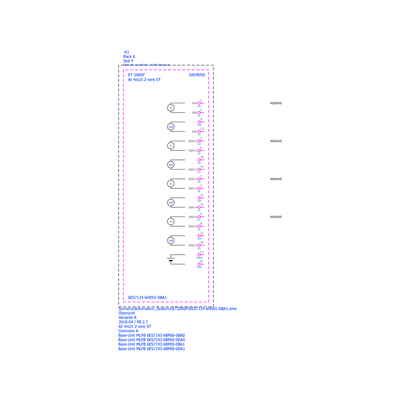

Automation Industrial Analog Input Module 6ES7134-6HD01-0BA1 for Siemens 100% Tested
Product Details:
| Place of Origin: | China |
| Brand Name: | SIEMENS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $181.00/cartons 1-9 cartons |
| Packaging Details: | carton |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
General information | ||||
Product type designation | AI 4x U/I 2-wire | |||
HW functional status | From FS02 | |||
Firmware version | ||||
● FW update possible | Yes | |||
usable BaseUnits | BU type A0, A1 | |||
Color code for module-specific color identification plate | CC03 | |||
Product function | ||||
● I&M data | Yes; I&M0 to I&M3 | |||
● Isochronous mode | No | |||
● Measuring range scalable | No | |||
Engineering with | ||||
● STEP 7 TIA Portal configurable/integrated from version | V14 / - | |||
● STEP 7 configurable/integrated from version | V5.6 and higher | |||
● PCS 7 configurable/integrated from version | V8.1 SP1 | |||
● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |||
● PROFINET from GSD version/GSD revision | GSDML V2.3 | |||
Operating mode | ||||
● Oversampling | No | |||
● MSI | No | |||
CiR - Configuration in RUN | ||||
Reparameterization possible in RUN | Yes | |||
Calibration possible in RUN | No | |||
Supply voltage | ||||
Rated value (DC) | 24 V | |||
permissible range, lower limit (DC) | 19.2 V | |||
permissible range, upper limit (DC) | 28.8 V | |||
Reverse polarity protection | Yes | |||
Input current | ||||
Current consumption, max. | 37 mA; without sensor supply | |||
Encoder supply | ||||
24 V encoder supply | ||||
● 24 V | Yes | |||
● Short-circuit protection | Yes | |||
● Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s | |||
Power loss | ||||
Power loss, typ. | 0.85 W; Without encoder supply voltage | |||
Address area | ||||
Address space per module | ||||
● Address space per module, max. | 8 byte; + 1 byte for QI information | |||
Hardware configuration | ||||
Automatic encoding | Yes | |||
● Mechanical coding element | Yes | |||
● Type of mechanical coding element | Type A | |||
Selection of BaseUnit for connection variants | ||||
● 2-wire connection | BU type A0, A1 | |||
Analog inputs | ||||
Number of analog inputs | 4; Differential inputs | |||
permissible input voltage for voltage input (destruction limit), max. | 30 V | |||
permissible input current for current input (destruction limit), max. | 50 mA | |||
Cycle time (all channels), min. | Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels) | |||
Input ranges (rated values), voltages | ||||
● 0 to +10 V | Yes; 15 bit | |||
— Input resistance (0 to 10 V) | 120 kΩ | |||
● 1 V to 5 V | Yes; 15 bit | |||
— Input resistance (1 V to 5 V) | 120 kΩ | |||
● -10 V to +10 V | Yes; 16 bit incl. sign | |||
— Input resistance (-10 V to +10 V) | 120 kΩ | |||
● -5 V to +5 V | Yes; 16 bit incl. sign | |||
— Input resistance (-5 V to +5 V) | 120 kΩ | |||
Input ranges (rated values), currents | ||||
● 0 to 20 mA | Yes; 15 bit | |||
— Input resistance (0 to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage | |||
● 4 mA to 20 mA | Yes; 15 bit | |||
— Input resistance (4 mA to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage | |||
Cable length | ||||
● shielded, max. | 1 000 m; 200 m for voltage measurement | |||
Analog value generation for the inputs | ||||
Measurement principle | integrating (Sigma-Delta) | |||
Integration and conversion time/resolution per channel | ||||
● Resolution with overrange (bit including sign), max. | 16 bit | |||
● Integration time, parameterizable | Yes | |||
● Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz | |||
● Conversion time (per channel) | 180 / 60 / 50 ms | |||
Smoothing of measured values | ||||
● Number of smoothing levels | 4; None; 4/8/16 times | |||
● parameterizable | Yes | |||
Encoder | ||||
Connection of signal encoders | ||||
● for voltage measurement | Yes | |||
● for current measurement as 2-wire transducer | Yes | |||
— Burden of 2-wire transmitter, max. | 650 Ω | |||
● for current measurement as 4-wire transducer | No | |||
Errors/accuracies | ||||
Linearity error (relative to input range), (+/-) | 0.01 % | |||
Temperature error (relative to input range), (+/-) | 0.005 %/K | |||
Crosstalk between the inputs, min. | 50 dB | |||
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % | |||
Operational error limit in overall temperature range | ||||
● Voltage, relative to input range, (+/-) | 0.5 % | |||
● Current, relative to input range, (+/-) | 0.5 % | |||
Basic error limit (operational limit at 25 °C) | ||||
● Voltage, relative to input range, (+/-) | 0.3 % | |||
● Current, relative to input range, (+/-) | 0.3 % | |||
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | ||||
● Series mode interference (peak value of interference < rated value of input range), min. | 70 dB | |||
● Common mode voltage, max. | 10 V | |||
● Common mode interference, min. | 90 dB | |||
Interrupts/diagnostics/status information | ||||
Diagnostics function | Yes | |||
Alarms | ||||
● Diagnostic alarm | Yes | |||
● Limit value alarm | No | |||
Diagnoses | ||||
● Monitoring the supply voltage | Yes | |||
● Wire-break | Yes; at 4 to 20 mA | |||
● Short-circuit | Yes; with 1 to 5 V or 2-wire mode: Short-circuit of the encoder supply to ground or of an input to the encoder supply | |||
● Group error | Yes | |||
● Overflow/underflow | Yes | |||
Diagnostics indication LED | ||||
● Monitoring of the supply voltage (PWR-LED) | Yes; green LED | |||
● Channel status display | Yes; green LED | |||
● for channel diagnostics | No | |||
● for module diagnostics | Yes; green/red LED | |||
Potential separation | ||||
Potential separation channels | ||||
● between the channels | Yes; channel group-specific between 2-wire current input group and voltage input group | |||
● between the channels and backplane bus | Yes | |||
● between the channels and the power supply of the electronics | Yes; only for voltage inputs | |||
Permissible potential difference | ||||
between the inputs (UCM) | 10 V DC | |||
Isolation | ||||
Isolation tested with | 707 V DC (type test) | |||
Standards, approvals, certificates | ||||
Suitable for applications according to AMS 2750 | Yes; Declaration of Conformity, see online support entry 109757262 | |||
Suitable for applications according to CQI-9 | Yes | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● horizontal installation, min. | -30 °C; < 0 °C as of FS02 | |||
● horizontal installation, max. | 60 °C | |||
● vertical installation, min. | -30 °C; < 0 °C as of FS02 | |||
● vertical installation, max. | 50 °C | |||
Altitude during operation relating to sea level | ||||
● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |||

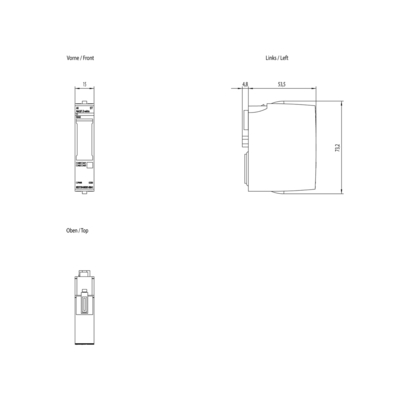

Dimensions | ||||
Width | 15 mm | |||
Height | 73 mm | |||
Depth | 58 mm | |||
Weights | ||||
Weight, approx. | 31 g | |||
