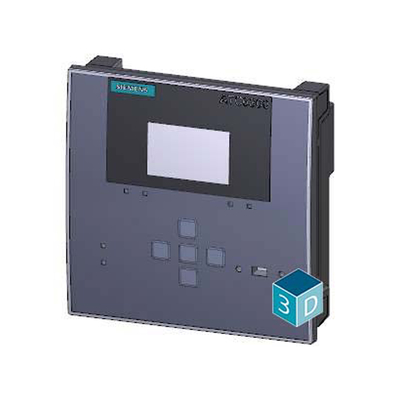

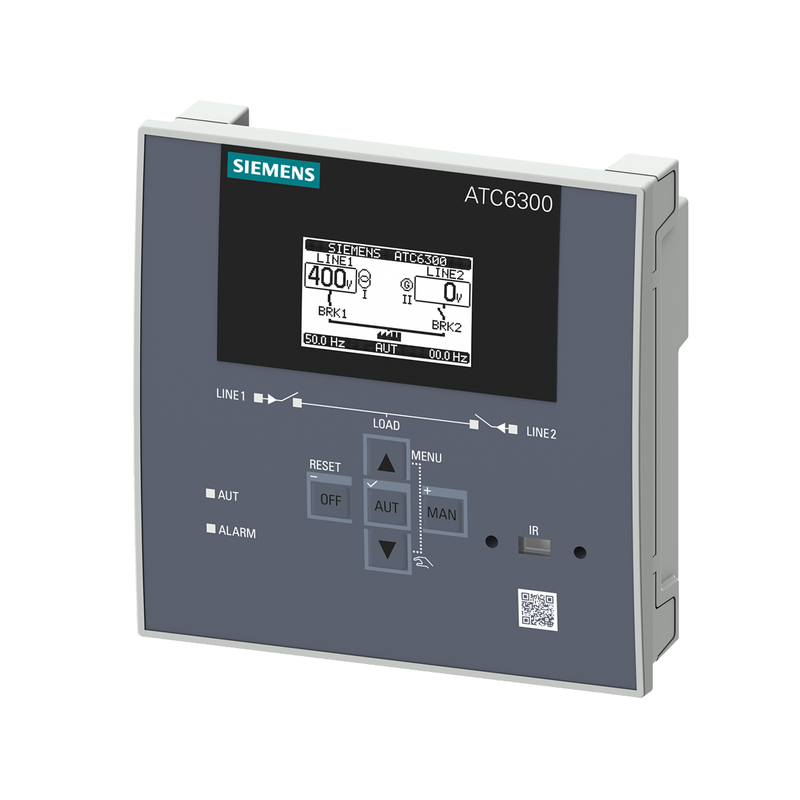

SENTRON 3KC LCD 144x144 mm ATC6300 Intelligent Conversion Controller for MCCB ACB LBS
Product Details:
| Place of Origin: | Italy |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,229.00/cartons 1-9 cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1pcs |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
Model | ||||
product brand name | SENTRON | |||
product designation | Accessories for transfer switching equipment | |||
design of the product | 3KC ATC6300 | |||
operating temperature | ||||
● minimum | -30 °C | |||
● maximum | 70 °C | |||
switchover time of the control device | 50 ms | |||
overvoltage category | 3 | |||
power frequency withstand voltage at auxiliary power supply at AC | 3 000 V | |||
operating period without auxiliary power supply | 300 s | |||
insulation voltage (Ui) at auxiliary power supply at AC rated value | 250 V | |||
impulse withstand voltage (Uimp) of the auxiliary power supply at AC rated value | 6 000 V | |||
interference immunity duration against voltage dip/sag at AC at 220 V | ||||
● without expansion modules maximum | 250 ms | |||
● with 1 expansion module maximum | 180 ms | |||
● with 2 expansion modules maximum | 120 ms | |||
supply voltage of the auxiliary power supply | ||||
● at AC initial rated value | 100 V | |||
● at AC final rated value | 240 V | |||
● at AC minimum | 90 V | |||
● at AC maximum | 264 V | |||
● at DC initial rated value | 110 V | |||
● at DC final rated value | 250 V | |||
● at DC minimum | 93.5 V | |||
● at DC maximum | 300 V | |||
supply voltage at DC power supply | ||||
● initial rated value | 12 V | |||
● final rated value | 24 V | |||
● minimum | 7.5 V | |||
● maximum | 33 V | |||
protection class IP | ||||
● on the front | IP40 | |||
● rear side | IP20 | |||
apparent power consumption at auxiliary power supply at AC at 240 V maximum | 9.5 VA | |||
power loss [W] at auxiliary power supply | ||||
● at AC at 240 V | 3.8 W | |||
● at DC at 250 V maximum | 3.6 W | |||
power loss [W] at DC power supply | ||||
● at 12 V maximum | 3.2 W | |||
● at 24 V maximum | 2.9 W | |||
operating frequency rated value | ||||
● minimum | 45 Hz | |||
● maximum | 66 Hz | |||
number of CO contacts for auxiliary contacts | 1 | |||
number of NC contacts for auxiliary contacts | 0 | |||
number of NO contacts for auxiliary contacts | 6 | |||
product component of the hardware real time clock backup battery | Yes | |||
product feature of enclosure material | Polycarbonate | |||
accessories | ||||
number of slots | 2 | |||
input current at digital input with signal <0> maximum | 8 mA | |||
number of digital inputs | 6 | |||
● design of the switching input | Negative | |||
output voltage at the relay outputs at AC maximum rated value | 250 V | |||
number of outputs as contact-affected switching element | 7 | |||
output current at the relay outputs | ||||
● at AC-1 at 250 V rated value | 8 A | |||
● at AC-15 at 250 V rated value | 1.5 A | |||
● at DC-1 at 30 V rated value | 8 A | |||
type of contact rating according to NEMA | B300 | |||
switching capacity current at the relay outputs at DC at 30 V according to UL 508 | 1 A | |||
mechanical service life (operating cycles) of the relay outputs | 10 000 000 | |||
electrical endurance (operating cycles) of the relay outputs | 100 000 | |||
input delay time | 0.05 s | |||
insulation voltage (Ui) of the relay outputs rated value | 250 V | |||
signal voltage | ||||
● for signal <0> at DC rated value | 2 V | |||
● for signal <1> at DC rated value | 3.4 V | |||
impulse withstand voltage (Uimp) of the relay outputs rated value | 4 000 V | |||
number of monitored phases | 3 | |||
connectable conductor cross-section | ||||
● minimum | 0.2 mm² | |||
● maximum | 2.5 mm² | |||
connectable conductor cross-section according to UL 508 | ||||
● minimum | 0.75 mm² | |||
● maximum | 2.5 mm² | |||
AWG number as coded connectable conductor cross section | ||||
● minimum | 24 | |||
● maximum | 12 | |||
AWG number as coded connectable conductor cross section according to UL 508 | ||||
● minimum | 18 | |||
● maximum | 12 | |||
tightening torque [lbf·in] with screw-type terminals maximum | 5 lbf·in | |||
tightening torque with screw-type terminals maximum | 0.56 N·m | |||
type of electrical connection | Removable/plug-in | |||

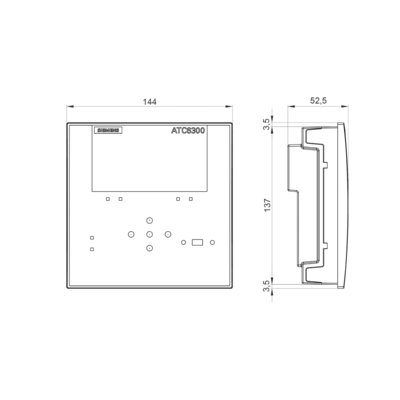

Mechanical Design | ||||
height | 144 mm | |||
width | 144 mm | |||
depth | 43.3 mm | |||
installation depth with expansion module maximum | 73 mm | |||
net weight | 600 g | |||
Environmental conditions | ||||
ambient temperature during storage | ||||
● minimum | -30 °C | |||
● maximum | 80 °C | |||
