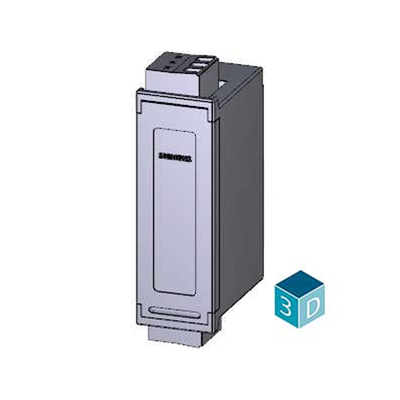

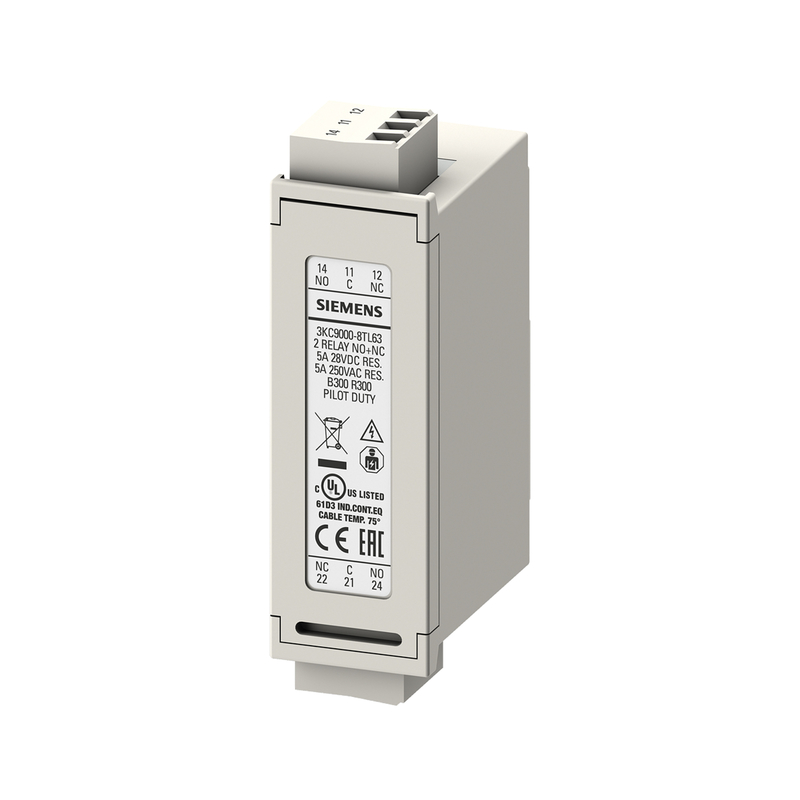

Siemens Dual Power Conversion Module Accessories 3KC9000-8TL63 Relay for ATC6300 Pluggable
Product Details:
| Place of Origin: | Italy |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $205.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1pcs |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
Model | ||||
product brand name | SENTRON | |||
product designation | Accessories for transfer control device | |||
design of the product | ATC6 expansion module 2DO, SSR | |||
type of voltage supply | Powered through the ATC | |||
General technical data | ||||
operating temperature | ||||
● minimum | -20 °C | |||
● maximum | 60 °C | |||
overvoltage category | 3 | |||
Voltage | ||||
operating voltage at AC maximum | 250 V | |||
power frequency withstand voltage | 1.5 kV | |||
insulation voltage rated value | 250 V | |||
surge voltage resistance | 2.5 kV | |||
overvoltage category according to IEC 61010 | 3 | |||
Supply voltage | ||||
supply voltage at DC | 5 V | |||
Protection class | ||||
protection class IP on the front | IP20 | |||
Dissipation | ||||
power loss [W] at DC maximum | 0.5 W | |||
Auxiliary circuit | ||||

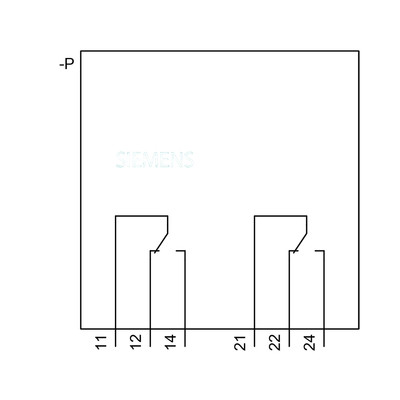

number of connected CO contacts for auxiliary contacts | 2 | |||
Product details | ||||
product feature of enclosure material | Polyamide | |||
Inputs Outputs | ||||
design of the digital output | relais | |||
number of outputs as contact-affected switching element | 2 | |||
output current at the relay outputs | ||||
● at AC-1 at 250 V rated value | 5 A | |||
● at AC-15 at 250 V rated value | 1.5 A | |||
● at DC-1 at 28 V rated value | 5 A | |||
type of contact rating according to NEMA | B300, R300 | |||
switching capacity current at the relay outputs | ||||
● at AC at 250 V according to UL 508 | 5 A | |||
● at DC at 28 V according to UL 508 | 5 A | |||
mechanical service life (operating cycles) of the relay outputs | 30 000 000 | |||
electrical endurance (operating cycles) of the relay outputs | 100 000 | |||
Connections | ||||
connectable conductor cross-section | ||||
● minimum | 0.2 mm² | |||
● maximum | 2.5 mm² | |||
AWG number as coded connectable conductor cross section | ||||
● minimum | 28 | |||
● maximum | 12 | |||
tightening torque [lbf·in] with screw-type terminals maximum | 4.5 lbf·in | |||
temperature of conductor according to UL 508 maximum | 60/75 °C | |||
type of electrical connection | Removable/plug-in | |||

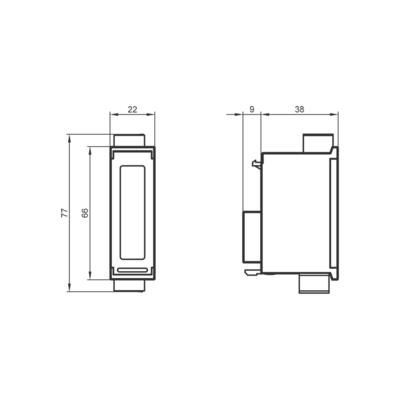

Mechanical Design | ||||
height | 64.5 mm | |||
width | 22 mm | |||
depth | 46.8 mm | |||
net weight | 50 g | |||
Environmental conditions | ||||
relative humidity reference value | 80 % | |||
ambient temperature during storage | ||||
● minimum | -30 °C | |||
● maximum | 80 °C | |||
Certificates | ||||
reference code | ||||
● according to EN 61346-2 | K | |||
● according to IEC 81346-2 | K | |||
