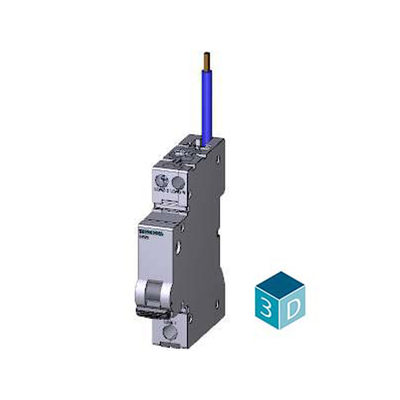

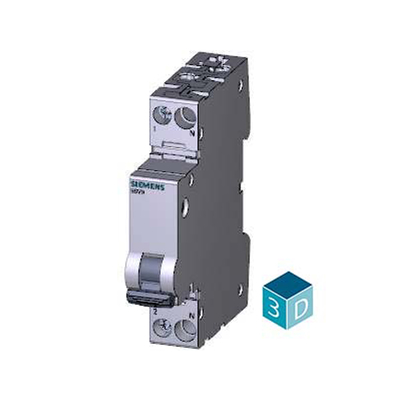

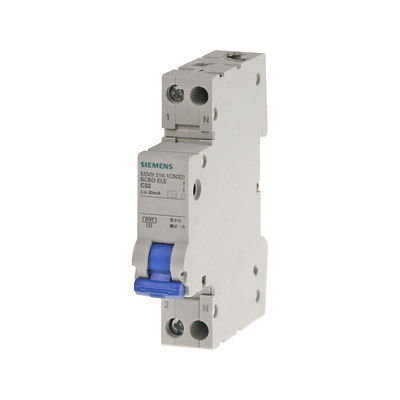

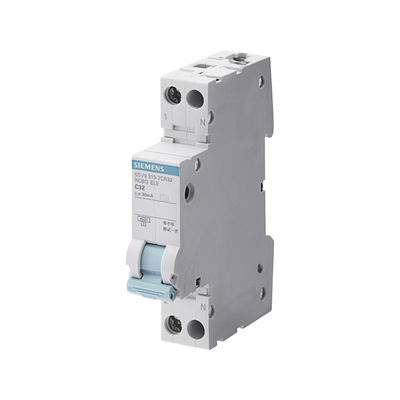

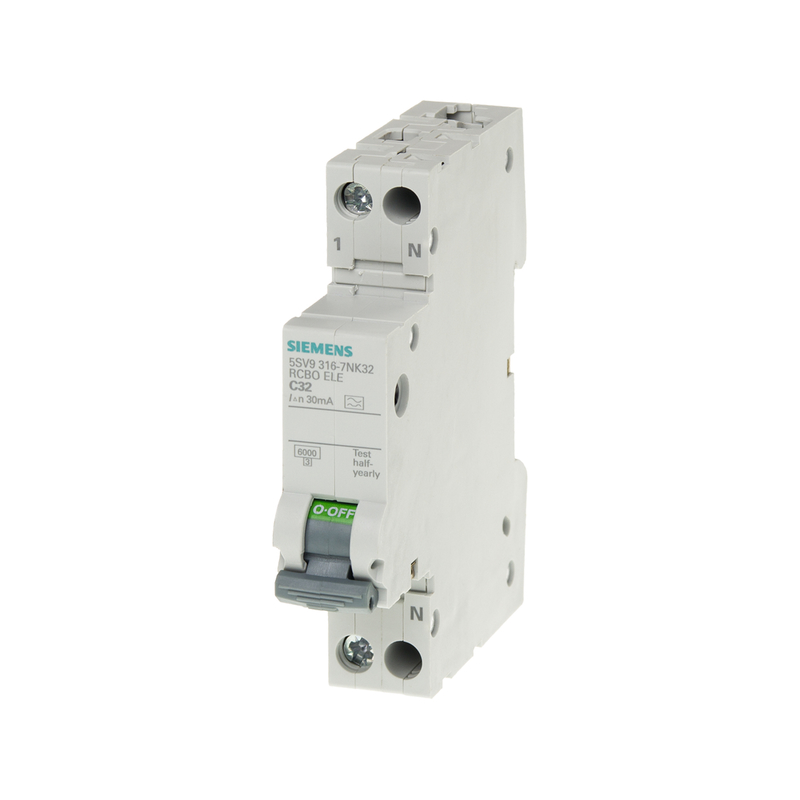

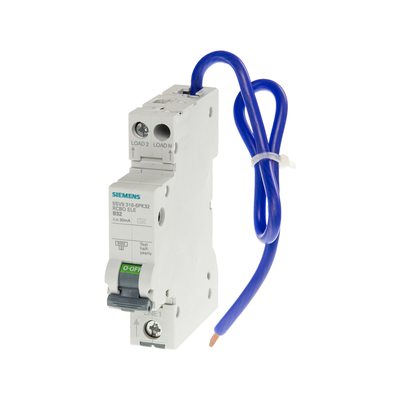

Compact Residual Current Protection Circuit Breaker 1P N Type AC 30 mA 5SV9313-1CN25 for Siemens

Compact Residual Current Protection Circuit Breaker 1P N Type AC 30 mA 5SV9313-1CN25 for Siemens

Product Details:

Place of Origin: China
Brand Name: Siemens

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $15.00/cartons 1-9 cartons
Packaging Details: CARTONS
Get Best Price Contact Now

Detail Information
Communication Interface: Other Brand: Siemens
Condition: 100% Original Warranty: 12 Months
Package: Original Packaging Shipping Term: FOB
Payment: T/T MOQ: 1pcs
Application: Automation Industrial Quality: 100% Strictly Tested
Service: One-stop Service

Product Description

Compact Residual Current Protection Circuit Breaker 1P N Type AC 30 mA 5SV9313-1CN25 for Siemens 0
Compact Residual Current Protection Circuit Breaker 1P N Type AC 30 mA 5SV9313-1CN25 for Siemens 1
Specification
Model
product brand name
SENTRON
product designation
RCD-operated circuit breaker
design of the product
Instantaneous
General technical data
number of poles
2
number of poles with protection
1
design of pole
1P+N
tripping characteristic class
C
mechanical service life (operating cycles) typical
10 000
overvoltage category
III
degree of pollution
2
Voltage
type of voltage of the operating voltage
AC
insulation voltage (Ui) rated value
264 V
surge voltage resistance rated value
4 000 V
surge current resistance at (8/20) µs
1 kA
Supply voltage
supply voltage
● at AC rated value
230/240 V
● for testing equipment minimum
195 V
operating frequency
50/60 Hz
supply voltage frequency rated value
50 Hz
Protection class
protection class IP
IP20, if the distribution board is installed, with connected conductors
Switching capacity
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value
4.5 kA
switching capacity current
● according to EN 60898 rated value
4.5 kA
● according to IEC 60947-2 rated value
5 kA
rated residual switching capacity (IΔm) according to IEC 61009-1
3 kA
energy limitation class
3
Dissipation
power loss [W]
● for rated value of the current at AC in hot operating state per pole
0.75 W
● maximum
1.5 W
operational current
● at 30 °C rated value
25 A
● at 40 °C rated value
23.75 A
● at 45 °C rated value
23 A
● at 50 °C rated value
22.25 A
● at 55 °C rated value
21.5 A
Product details
product feature
● halogen-free
Yes
● silicon-free
Yes
Product function
product function
voltage dependent RCD function
Connections
connectable conductor cross-section solid
● minimum
0.75 mm²
● maximum
16 mm²
connectable conductor cross-section stranded
● minimum
0.75 mm²
● maximum
16 mm²
connectable conductor cross-section finely stranded with core end processing
● minimum
0.75 mm²
● maximum
10 mm²
tightening torque with screw-type terminals
● minimum
1.2 N·m
● maximum
2 N·m
position of power supply cord
Either top or bottom
Mechanical Design
height
90 mm
width
18 mm
depth
77 mm
installation depth
70 mm
number of modular width units
1
mounting position
any
net weight
130 g
weight with packaging
135 g
Environmental conditions
influence of the surrounding temperature
Max. 95% humidity
ambient temperature during operation
● minimum
-25 °C
● maximum
40 °C
ambient temperature during storage
● minimum
-40 °C
● maximum
75 °C
