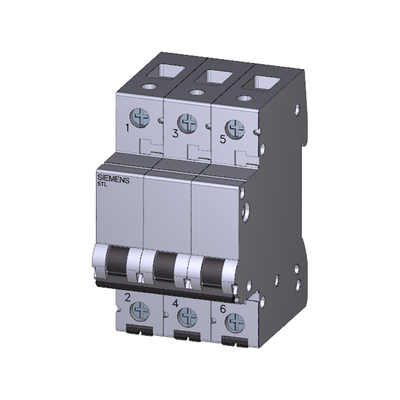

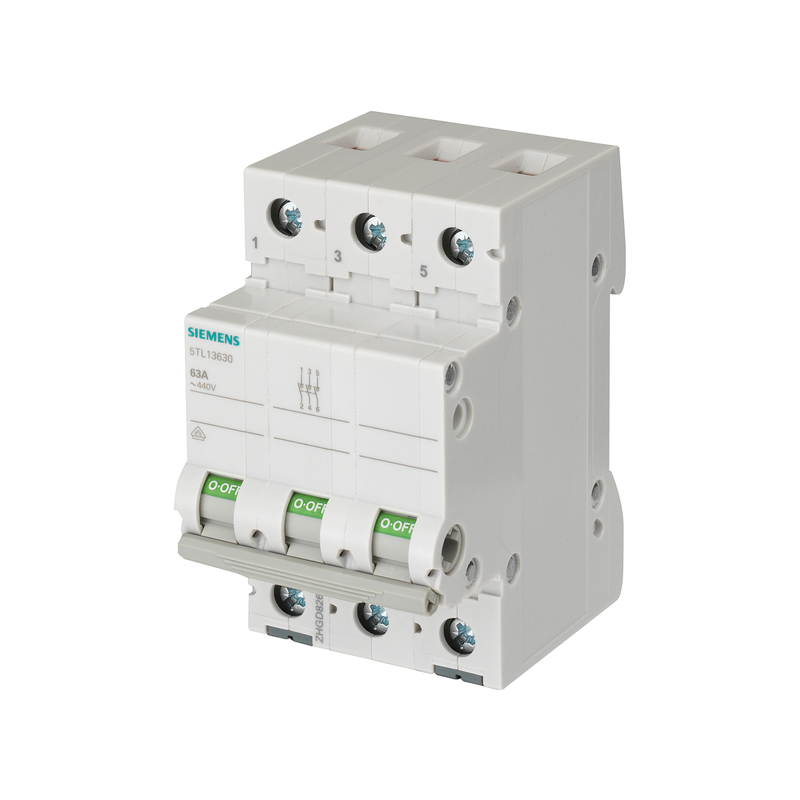

Siemens Low Voltage Distribution 5TL1391-0 Circuit Breaker 100A 3 Pole 100% Original
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $27.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Memory: | Other | I/O Number: | Other |
|---|---|---|---|
| Communication Interface: | Other | Brand: | Siemens |
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1pcs |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
Model | ||||
product brand name | SENTRON | |||
product designation | On/Off switches | |||
design of the product | 3 NO | |||
design of the switching function | Switch disconnector | |||
General technical data | ||||
number of poles | 3 | |||
short-circuit current rating | 10 kA | |||
type of voltage of the operating voltage | AC | |||
Supply voltage | ||||
operating voltage rated value | 440 V | |||
value range of the operating frequency | 50/60 Hz | |||
Protection class | ||||
protection class IP | other | |||
Switching capacity | ||||
switching capacity current rated value | 0.3 kA | |||
Dissipation | ||||
power loss [W] for rated value of the current at AC in hot operating state per pole | 5.5 W | |||
Main circuit | ||||
operational current rated value | 100 A | |||
Product details | ||||
product component signal lamp | No | |||
number of NO contacts | 3 | |||
Product function | ||||
product function positive opening (acc. to DIN VDE 0113) | No | |||
connectable conductor cross-section for flexible conductor with core end processing | ||||
● minimum | 2.5 mm² | |||
● maximum | 50 mm² | |||
connectable conductor cross-section for rigid conductor | ||||
● minimum | 2.5 mm² | |||
● maximum | 50 mm² | |||
tightening torque with screw-type terminals | ||||
● minimum | 2.5 N·m | |||
● maximum | 3 N·m | |||

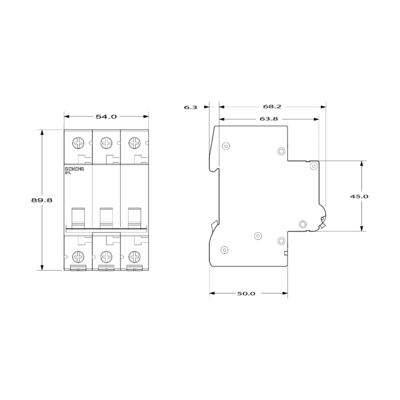

Mechanical Design | ||||
height | 89.8 mm | |||
depth | 74.5 mm | |||
installation depth | 70 mm | |||
number of modular width units | 3 | |||
net weight | 321 g | |||
ambient temperature during operation | ||||
● minimum | -5 °C | |||
● maximum | 40 °C | |||
ambient temperature during storage minimum | -25 °C | |||
