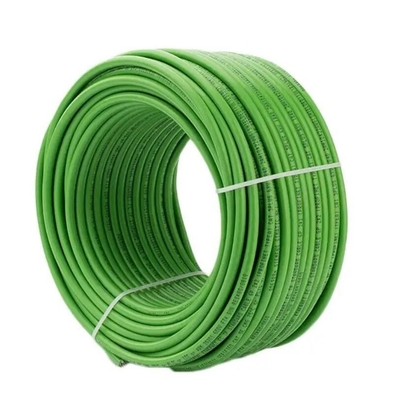

Siemens 6XV18402AH10 Industrial Ethernet FC TP Standard Bus Cable 4-Core with Materials
Product Details:
| Place of Origin: | Slovakia |
| Brand Name: | Siemens |
| Model Number: | 6XV1840-2AH10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1.37/meters |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Type: | Industrial Ethernet FC TP Standard Bus Cable | Application: | Industrial Ethernet FC TP Standard Bus Cable |
|---|---|---|---|
| Conductor Material: | Overlapping Aluminum Glued | Conductor Type: | Stranded |
| Insulation Material: | PE&PVC | Rated Voltage: | 80V |
| Brand: | Siemens | MOQ: | 20Meters |
| Package: | Carton | Insulation: | PE&PVC |
| Conductor: | Aluminum Conductor | Usage: | Industrial Ethernet |
| Payment: | TT | Service: | One-stop Service |
| Surface: | Surface | Size: | 0.64 Mm |
Product Description
Specification
suitability for use | Standard cable with rigid cores for fast installation | |||
cable designation | 2YY (ST) CY 2x2x0,64/1,5-100 GN SF/UTP | |||
electrical data | ||||
attenuation factor per length | ||||
● at 10 MHz / maximum | 0.052 dB/m | |||
● at 100 MHz / maximum | 0.195 dB/m | |||
impedance | ||||
● at 1 MHz ... 100 MHz | 100 Ω | |||
relative symmetrical tolerance | ||||
● of the characteristic impedance at 1 MHz … 100 MHz | 15 % | |||
near-end crosstalk per length | ||||
● at 1 MHz ... 100 MHz | 0.5 dB/m | |||
transfer impedance per length / at 10 MHz | 10 mΩ/m | |||
loop resistance per length / maximum | 115 mΩ/m | |||
operating voltage | ||||
● RMS value | 80 V | |||
NVP value in percent | 69 % | |||
mechanical data | ||||
number of electrical cores | 4 | |||

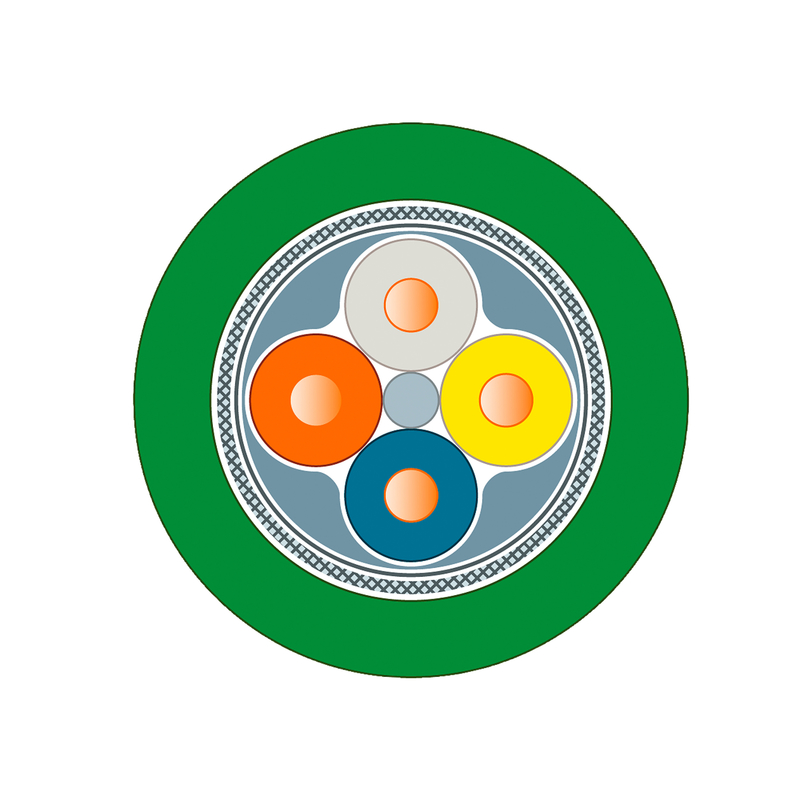

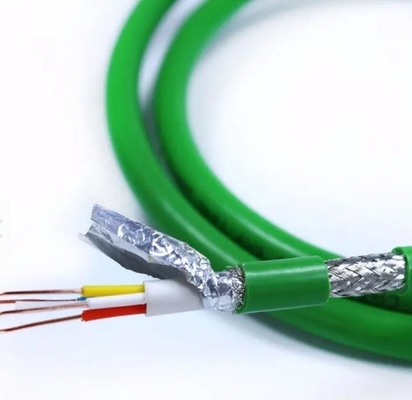

design of the shield | Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires | |||
type of electrical connection / FastConnect | Yes | |||
core diameter | ||||
● of AWG22 insulated conductor | 0.64 mm | |||
outer diameter | ||||
● of inner conductor | 0.64 mm | |||
● of the wire insulation | 1.5 mm | |||
● of the inner sheath of the cable | 3.9 mm | |||
● of cable sheath | 6.5 mm | |||
symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm | |||
material | ||||
● of the wire insulation | polyethylene (PE) | |||
● of the inner sheath of the cable | PVC | |||
● of cable sheath | PVC | |||
color | ||||
● of the insulation of data wires | white/yellow/blue/orange | |||
● of cable sheath | green | |||
bending radius | ||||
● with single bend / minimum permissible | 19.5 mm | |||
● with multiple bends / minimum permissible | 49 mm | |||
tensile load / maximum | 150 N | |||
weight per length | 61 kg/km | |||
ambient conditions | ||||
ambient temperature | ||||
● during operation | -40 ... +75 °C | |||
● during storage | -40 ... +75 °C | |||
● during transport | -40 ... +75 °C | |||
● during installation | -40 ... +60 °C | |||
● note | Electrical properties measured at 20 °C, tests according to DIN VDE 0472 | |||
fire behavior | flame resistant according to IEC 60332-3-24 (Cat. C) and UL 1685 (CSA FT 4) | |||
class of burning behaviour / according to EN 13501-6 | Eca | |||
chemical resistance | ||||
● to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) | |||
● to grease | Conditional resistance | |||
● to water | conditional resistance | |||
radiological resistance / to UV radiation | resistant | |||
product features, product functions, product components / general | ||||
product feature | ||||
● halogen-free | No | |||
● silicon-free | Yes | |||
wire length / for Industrial Ethernet | ||||
● with 100BaseTX | 100 m | |||
standards, specifications, approvals | ||||
UL/ETL listing / 300 V Rating | Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res | |||
UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 | |||
certificate of suitability | ||||
● EAC approval | Yes | |||
● CE marking | Yes | |||
● RoHS conformity | Yes | |||
standard for structured cabling | Cat5e | |||
Marine classification association | ||||
● American Bureau of Shipping Europe Ltd. (ABS) | No | |||
● French marine classification society (BV) | No | |||
● Det Norske Veritas (DNV) | No | |||
● Germanische Lloyd (GL) | No | |||
● Lloyds Register of Shipping (LRS) | No | |||
● Nippon Kaiji Kyokai (NK) | No | |||
● Polski Rejestr Statkow (PRS) | No | |||
reference code | ||||
● according to IEC 81346-2 | WG | |||
● according to IEC 81346-2:2019 | WGB | |||
further information / internet links | ||||
internet link | ||||
● to web page: selection aid TIA Selection Tool | http://www.siemens.com/tia-selection-tool | |||
● to website: Industrial communication | http://www.siemens.com/simatic-net | |||
● to website: Industry Mall | https://mall.industry.siemens.com | |||
● to website: Information and Download Center | http://www.siemens.com/industry/infocenter | |||
● to website: Selection guide for cables and connectors | https://sie.ag/2QdlxcP | |||
● to website: Image database | http://automation.siemens.com/bilddb | |||
● to website: CAx-Download-Manager | http://www.siemens.com/cax | |||
● to website: Industry Online Support | https://support.industry.siemens.com | |||
