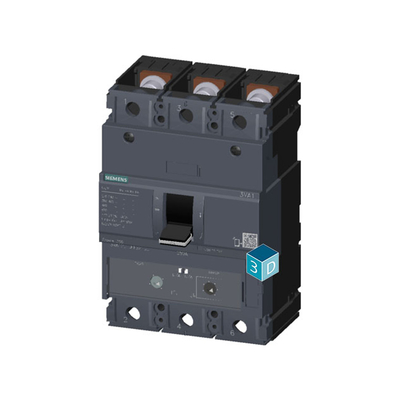

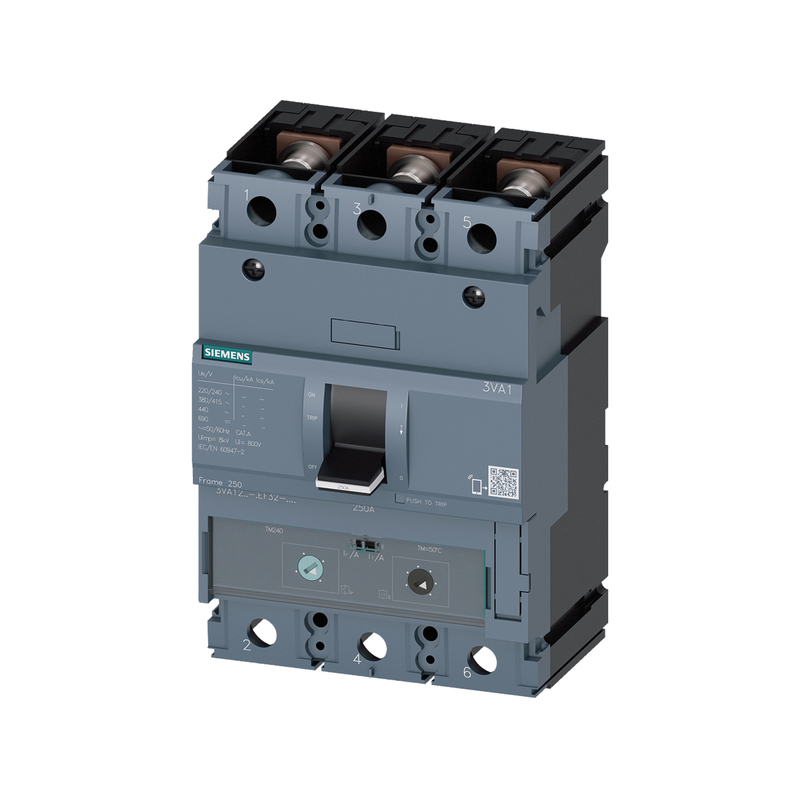

100% Tested Siemens 3VA1220-5EF32-0AA0 MCCB IEC FS250 200A 3P 55KA TM ATAM Power Off Knife
Product Details:
| Place of Origin: | China |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $195.00/cartons 1-9 cartons |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1pcs |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
Model | ||||
product brand name | SENTRON | |||
product designation | Molded case circuit breaker | |||
design of the product | Line protection | |||
design of the overcurrent release | TM240 | |||
protection function of the overcurrent release | LI | |||
number of poles | 3 | |||
General technical data | ||||
insulation voltage / rated value | 800 V | |||
operating voltage / at DC / rated value | 500 V | |||
operating voltage / at AC / rated value | 690 V | |||
power loss [W] / maximum | 42 W | |||
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 14 W | |||
mechanical service life (operating cycles) / typical | 20 000 | |||
electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 8 000 | |||
electrical endurance (operating cycles) / at AC-1 / at 690 V | 5 400 | |||
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No | |||
ground-fault monitoring version | Without | |||
product function | ||||
● communication function | No | |||
● other measurement function | No | |||
Net Weight | 1.588 kg | |||
Current | ||||
operational current | ||||
● at 40 °C | 200 A | |||
● at 45 °C | 200 A | |||
● at 50 °C | 200 A | |||
● at 55 °C | 194 A | |||
● at 60 °C | 188 A | |||
● at 65 °C | 182 A | |||
● at 70 °C | 176 A | |||
Switching capacity according to IEC 60947 | ||||
switching capacity class of the circuit breaker | M | |||
maximum short-circuit current breaking capacity (Icu) | ||||
● at 240 V | 85 kA | |||
● at 415 V | 55 kA | |||
● at 440 V | 36 kA | |||
● at 500 V | 15 kA | |||
● at 690 V | 10 kA | |||
operating short-circuit current breaking capacity (Ics) | ||||
● at 240 V | 85 kA | |||
● at 415 V | 55 kA | |||
● at 440 V | 36 kA | |||
● at 500 V | 10 kA | |||
● at 690 V | 5 kA | |||
short-circuit current making capacity (Icm) | ||||
● at 240 V | 187 kA | |||
● at 415 V | 121 kA | |||
● at 440 V | 75.6 kA | |||
● at 500 V | 30 kA | |||
● at 690 V | 17 kA | |||
design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter | |||
Adjustable parameters | ||||
product feature / for L-tripping / can be switched on/off | No | |||
adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic | ||||
● minimum | 140 A | |||
● maximum | 200 A | |||
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic | ||||
● minimum | 1 s | |||
● maximum | 1 s | |||
adjustable response value setting current (Ii) / for I-tripping | ||||
● minimum | 1 000 A | |||
● maximum | 2 000 A | |||
adjustable setting current (InN) / for N-tripping | ||||
● minimum | 0 A | |||
● maximum | 0 A | |||
product function / grounding protection | No | |||
Mechanical Design | ||||
product component | ||||
● undervoltage release | No | |||
● voltage trigger | No | |||
● trip indicator | No | |||
height [in] | 6.22 in | |||
height | 158 mm | |||
width [in] | 4.13 in | |||
width | 105 mm | |||
depth [in] | 2.76 in | |||
depth | 70 mm | |||
Connections | ||||
arrangement of electrical connectors / for main current circuit | Front terminal | |||
type of electrical connection / for main current circuit | nut keeper kit on both ends | |||
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum | 13 x 1 mm | |||
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum | 25 x 8 mm | |||
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | Silver | |||
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | Silver | |||
Auxiliary circuit | ||||
number of CO contacts / for auxiliary contacts | 0 | |||
Accessories | ||||
product extension / optional / motor drive | Yes | |||
Environmental conditions | ||||
protection class IP / on the front | IP40 | |||
ambient temperature | ||||
● during operation / minimum | -25 °C | |||
● during operation / maximum | 70 °C | |||
● during storage / minimum | -40 °C | |||
● during storage / maximum | 80 °C | |||
