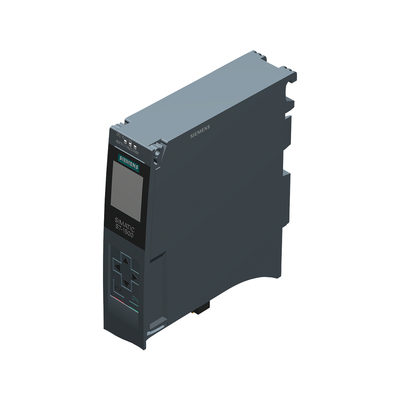

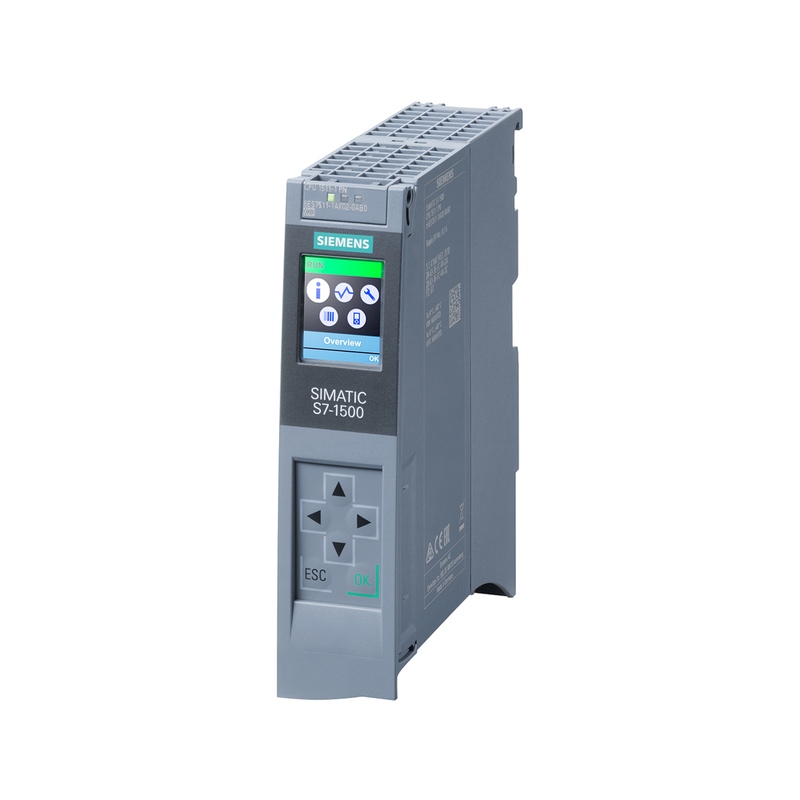

SIMATIC S7-1500 Series CPU 1511-1 PN 6ES7511-1AK02-0AB0 Industrial Controller for Siemens
Product Details:
| Place of Origin: | China |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $396.80/cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original | Warranty: | 12 Months |
| Package: | Original Packaging | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Application: | Automation Industrial | Quality: | 100% Strictly Tested |
| Service: | One-stop Service | ||
Product Description
Specification
General information | ||||
Product type designation | CPU 1511-1 PN | |||
HW functional status | FS03 | |||
Firmware version | V2.9 | |||
Product function | ||||
● I&M data | Yes; I&M0 to I&M3 | |||
● Isochronous mode | Yes; Distributed and central; with minimum OB 6x cycle of 625 µs (distributed) and 1 ms (central) | |||
Engineering with | ||||
● STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V15 (FW V2.5) or higher; with older TIA Portal versions configurable as 6ES7511-1AK01-0AB0 | |||
Configuration control | ||||
via dataset | Yes | |||
Display | ||||
Screen diagonal [cm] | 3.45 cm | |||
Control elements | ||||
Number of keys | 8 | |||
Mode buttons | 2 | |||
Supply voltage | ||||
Rated value (DC) | 24 V | |||
permissible range, lower limit (DC) | 19.2 V | |||
permissible range, upper limit (DC) | 28.8 V | |||
Reverse polarity protection | Yes | |||
Mains buffering | ||||
● Mains/voltage failure stored energy time | 5 ms | |||
● Repeat rate, min. | 1/s | |||
Input current | ||||
Current consumption (rated value) | 0.7 A | |||
Current consumption, max. | 0.95 A | |||
Inrush current, max. | 1.9 A; Rated value | |||
I²t | 0.02 A²·s | |||
Power | ||||
Infeed power to the backplane bus | 10 W | |||
Power consumption from the backplane bus (balanced) | 5.5 W | |||
Power loss | ||||
Power loss, typ. | 5.7 W | |||
Memory | ||||
Number of slots for SIMATIC memory card | 1 | |||
SIMATIC memory card required | Yes | |||
Work memory | ||||
● integrated (for program) | 150 kbyte | |||
● integrated (for data) | 1 Mbyte | |||
Load memory | ||||
● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte | |||
Backup | ||||
● maintenance-free | Yes | |||
CPU processing times | ||||
for bit operations, typ. | 60 ns | |||
for word operations, typ. | 72 ns | |||
for fixed point arithmetic, typ. | 96 ns | |||
for floating point arithmetic, typ. | 384 ns | |||
CPU-blocks | ||||
Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs | |||
DB | ||||
● Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999 | |||
● Size, max. | 1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB | |||
FB | ||||
● Number range | 0 ... 65 535 | |||
● Size, max. | 150 kbyte | |||
FC | ||||
● Number range | 0 ... 65 535 | |||
● Size, max. | 150 kbyte | |||
OB | ||||
● Size, max. | 150 kbyte | |||
● Number of free cycle OBs | 100 | |||
● Number of time alarm OBs | 20 | |||
● Number of delay alarm OBs | 20 | |||
● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs | |||
● Number of process alarm OBs | 50 | |||
● Number of DPV1 alarm OBs | 3 | |||
● Number of isochronous mode OBs | 2 | |||
● Number of technology synchronous alarm OBs | 2 | |||
● Number of startup OBs | 100 | |||
● Number of asynchronous error OBs | 4 | |||
● Number of synchronous error OBs | 2 | |||
● Number of diagnostic alarm OBs | 1 | |||
Nesting depth | ||||
● per priority class | 24 | |||
Counters, timers and their retentivity | ||||
S7 counter | ||||
● Number | 2 048 | |||
Retentivity | ||||
— adjustable | Yes | |||
IEC counter | ||||
● Number | Any (only limited by the main memory) | |||
Retentivity | ||||
— adjustable | Yes | |||
S7 times | ||||
● Number | 2 048 | |||
Retentivity | ||||
— adjustable | Yes | |||
IEC timer | ||||
● Number | Any (only limited by the main memory) | |||
Retentivity | ||||
— adjustable | Yes | |||
Data areas and their retentivity | ||||
Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB | |||
Extended retentive data area (incl. timers, counters, flags), max. | 1 Mbyte; When using PS 6 0W 24/48/60 V DC HF | |||
Flag | ||||
● Size, max. | 16 kbyte | |||
● Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte | |||
Data blocks | ||||
● Retentivity adjustable | Yes | |||
● Retentivity preset | No | |||
Local data | ||||
● per priority class, max. | 64 kbyte; max. 16 KB per block | |||
Address area | ||||
Number of IO modules | 1 024; max. number of modules / submodules | |||
I/O address area | ||||
● Inputs | 32 kbyte; All inputs are in the process image | |||
● Outputs | 32 kbyte; All outputs are in the process image | |||
per integrated IO subsystem | ||||
— Inputs (volume) | 8 kbyte | |||
— Outputs (volume) | 8 kbyte | |||
per CM/CP | ||||
— Inputs (volume) | 8 kbyte | |||
— Outputs (volume) | 8 kbyte | |||
Subprocess images | ||||
● Number of subprocess images, max. | 32 | |||
Hardware configuration | ||||
Number of distributed IO systems | 32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link) | |||
Number of DP masters | ||||
● Via CM | 4; A maximum of 4 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total | |||
Number of IO Controllers | ||||
● integrated | 1 | |||
● Via CM | 4; A maximum of 4 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total | |||
Rack | ||||
● Modules per rack, max. | 32; CPU + 31 modules | |||
● Number of lines, max. | 1 | |||
PtP CM | ||||
● Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots | |||
Time of day | ||||
Clock | ||||
● Type | Hardware clock | |||
● Backup time | 6 wk; At 40 °C ambient temperature, typically | |||
● Deviation per day, max. | 10 s; Typ.: 2 s | |||
Operating hours counter | ||||
● Number | 16 | |||
Clock synchronization | ||||
● supported | Yes | |||
● in AS, master | Yes | |||
● in AS, slave | Yes | |||
● on Ethernet via NTP | Yes | |||
Interfaces | ||||
Number of PROFINET interfaces | 1 | |||
1. Interface | ||||
Interface types | ||||
● RJ 45 (Ethernet) | Yes; X1 | |||
● Number of ports | 2 | |||
● integrated switch | Yes | |||
Protocols | ||||
● IP protocol | Yes; IPv4 | |||
● PROFINET IO Controller | Yes | |||
● PROFINET IO Device | Yes | |||
● SIMATIC communication | Yes | |||
● Open IE communication | Yes; Optionally also encrypted | |||
● Web server | Yes | |||
● Media redundancy | Yes | |||
PROFINET IO Controller | ||||
Services | ||||
— PG/OP communication | Yes | |||
— Isochronous mode | Yes | |||
— Direct data exchange | Yes; Requirement: IRT and isochronous mode (MRPD optional) | |||
— IRT | Yes | |||
— PROFIenergy | Yes; per user program | |||
— Prioritized startup | Yes; Max. 32 PROFINET devices | |||
— Number of connectable IO Devices, max. | 128; In total, up to 256 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET | |||
— Of which IO devices with IRT, max. | 64 | |||
— Number of connectable IO Devices for RT, max. | 128 | |||
— of which in line, max. | 128 | |||
— Number of IO Devices that can be simultaneously activated/deactivated, max. | 8; in total across all interfaces | |||
— Number of IO Devices per tool, max. | 8 | |||
— Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data | |||
Update time for IRT | ||||
— for send cycle of 250 µs | 250 μs to 4 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive | |||
— for send cycle of 500 µs | 500 μs to 8 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive | |||
— for send cycle of 1 ms | 1 ms to 16 ms | |||
— for send cycle of 2 ms | 2 ms to 32 ms | |||
— for send cycle of 4 ms | 4 ms to 64 ms | |||
— With IRT and parameterization of "odd" send cycles | Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs) | |||
Update time for RT | ||||
— for send cycle of 250 µs | 250 µs to 128 ms | |||
— for send cycle of 500 µs | 500 µs to 256 ms | |||
— for send cycle of 1 ms | 1 ms to 512 ms | |||
— for send cycle of 2 ms | 2 ms to 512 ms | |||
— for send cycle of 4 ms | 4 ms to 512 ms | |||
PROFINET IO Device | ||||
Services | ||||
— PG/OP communication | Yes | |||
— Isochronous mode | No | |||
— IRT | Yes | |||
— PROFIenergy | Yes; per user program | |||
— Shared device | Yes | |||
— Number of IO Controllers with shared device, max. | 4 | |||
— activation/deactivation of I-devices | Yes; per user program | |||
— Asset management record | Yes; per user program | |||
Interface types | ||||
RJ 45 (Ethernet) | ||||
● 100 Mbps | Yes | |||
● Autonegotiation | Yes | |||
● Autocrossing | Yes | |||
● Industrial Ethernet status LED | Yes | |||
Protocols | ||||
PROFIsafe | No | |||
Number of connections | ||||
● Number of connections, max. | 96; via integrated interfaces of the CPU and connected CPs / CMs | |||
● Number of connections reserved for ES/HMI/web | 10 | |||
● Number of connections via integrated interfaces | 64 | |||
● Number of S7 routing paths | 16 | |||
Redundancy mode | ||||
● H-Sync forwarding | Yes | |||
Media redundancy | ||||
— Media redundancy | only via 1st interface (X1) | |||
— MRP | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager; MRP Client | |||
— MRP interconnection, supported | Yes; as MRP ring node according to IEC 62439-2 Edition 3.0 | |||
— MRPD | Yes; Requirement: IRT | |||
— Switchover time on line break, typ. | 200 ms; For MRP, bumpless for MRPD | |||
— Number of stations in the ring, max. | 50 | |||
SIMATIC communication | ||||
● PG/OP communication | Yes; encryption with TLS V1.3 pre-selected | |||
● S7 routing | Yes | |||
● S7 communication, as server | Yes | |||
● S7 communication, as client | Yes | |||
● User data per job, max. | See online help (S7 communication, user data size) | |||
Open IE communication | ||||
● TCP/IP | Yes | |||
— Data length, max. | 64 kbyte | |||
— several passive connections per port, supported | Yes | |||
● ISO-on-TCP (RFC1006) | Yes | |||
— Data length, max. | 64 kbyte | |||
● UDP | Yes | |||
— Data length, max. | 2 kbyte; 1 472 bytes for UDP broadcast | |||
— UDP multicast | Yes; Max. 5 multicast circuits | |||
● DHCP | Yes | |||
● DNS | Yes | |||
● SNMP | Yes | |||
● DCP | Yes | |||
● LLDP | Yes | |||
● Encryption | Yes; Optional | |||
Web server | ||||
● HTTP | Yes; Standard and user pages | |||
● HTTPS | Yes; Standard and user pages | |||
OPC UA | ||||
● Runtime license required | Yes; "Small" license required | |||
● OPC UA Client | Yes | |||
— Application authentication | Yes | |||
— Security policies | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | |||
— User authentication | "anonymous" or by user name & password | |||
— Number of connections, max. | 4 | |||
— Number of nodes of the client interfaces, recommended max. | 1 000 | |||
— Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max. | 300 | |||
— Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max. | 20 | |||
— Number of elements for one call of OPC_UA_MethodGetHandleList, max. | 100 | |||
— Number of simultaneous calls of the client instructions for session management, per connection, max. | 1 | |||
— Number of simultaneous calls of the client instructions for data access, per connection, max. | 5 | |||
— Number of registerable nodes, max. | 5 000 | |||
— Number of registerable method calls of OPC_UA_MethodCall, max. | 100 | |||
— Number of inputs/outputs when calling OPC_UA_MethodCall, max. | 20 | |||
● OPC UA Server | Yes; Data access (read, write, subscribe), method call, custom address space | |||
— Application authentication | Yes | |||
— Security policies | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | |||
— User authentication | "anonymous" or by user name & password | |||
— GDS support (certificate management) | Yes | |||
— Number of sessions, max. | 32 | |||
— Number of accessible variables, max. | 50 000 | |||
— Number of registerable nodes, max. | 10 000 | |||
— Number of subscriptions per session, max. | 20 | |||
— Sampling interval, min. | 100 ms | |||
— Publishing interval, min. | 500 ms | |||
— Number of server methods, max. | 20 | |||
— Number of inputs/outputs per server method, max. | 20 | |||
— Number of monitored items, recommended max. | 1 000; for 1 s sampling interval and 1 s send interval | |||
— Number of server interfaces, max. | 10 of each "Server interfaces" / "Companion specification" type and 20 of the type "Reference namespace" | |||
— Number of nodes for user-defined server interfaces, max. | 1 000 | |||
● Alarms and Conditions | Yes | |||
— Number of program alarms | 100 | |||
— Number of alarms for system diagnostics | 50 | |||
Further protocols | ||||
● MODBUS | Yes; MODBUS TCP | |||
Isochronous mode | ||||
Equidistance | Yes | |||
S7 message functions | ||||
Number of login stations for message functions, max. | 32 | |||
Program alarms | Yes | |||
Number of configurable program messages, max. | 5 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH | |||
Number of loadable program messages in RUN, max. | 2 500 | |||
Number of simultaneously active program alarms | ||||
● Number of program alarms | 600 | |||
● Number of alarms for system diagnostics | 100 | |||
● Number of alarms for motion technology objects | 80 | |||
Test commissioning functions | ||||
Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 5 engineering systems | |||
Status block | Yes; Up to 8 simultaneously (in total across all ES clients) | |||
Single step | No | |||
Number of breakpoints | 8 | |||
Status/control | ||||
● Status/control variable | Yes | |||
● Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | |||
● Number of variables, max. | ||||
— of which status variables, max. | 200; per job | |||
— of which control variables, max. | 200; per job | |||
Forcing | ||||
● Forcing | Yes | |||
● Forcing, variables | Peripheral inputs/outputs | |||
● Number of variables, max. | 200 | |||
Diagnostic buffer | ||||
● present | Yes | |||
● Number of entries, max. | 1 000 | |||
— of which powerfail-proof | 500 | |||
Traces | ||||
● Number of configurable Traces | 4; Up to 512 KB of data per trace are possible | |||
Interrupts/diagnostics/status information | ||||
Diagnostics indication LED | ||||
● RUN/STOP LED | Yes | |||
● ERROR LED | Yes | |||
● MAINT LED | Yes | |||
● STOP ACTIVE LED | Yes | |||
● Connection display LINK TX/RX | Yes | |||
Supported technology objects | ||||
Motion Control | Yes; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool | |||
● Number of available Motion Control resources for technology objects | 800 | |||
● Required Motion Control resources | ||||
— per speed-controlled axis | 40 | |||
— per positioning axis | 80 | |||
— per synchronous axis | 160 | |||
— per external encoder | 80 | |||
— per output cam | 20 | |||
— per cam track | 160 | |||
— per probe | 40 | |||
● Positioning axis | ||||
— Number of positioning axes at motion control cycle of 4 ms (typical value) | 5 | |||
— Number of positioning axes at motion control cycle of 8 ms (typical value) | 10 | |||
Controller | ||||
● PID_Compact | Yes; Universal PID controller with integrated optimization | |||
● PID_3Step | Yes; PID controller with integrated optimization for valves | |||
● PID-Temp | Yes; PID controller with integrated optimization for temperature | |||
Counting and measuring | ||||
● High-speed counter | Yes | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● horizontal installation, min. | -25 °C; No condensation | |||
● horizontal installation, max. | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off | |||
● vertical installation, min. | -25 °C; No condensation | |||
● vertical installation, max. | 40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off | |||
Ambient temperature during storage/transportation | ||||
● min. | -40 °C | |||
● max. | 70 °C | |||
Altitude during operation relating to sea level | ||||
● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |||
configuration / header | ||||
configuration / programming / header | ||||
Programming language | ||||
— LAD | Yes | |||
— FBD | Yes | |||
— STL | Yes | |||
— SCL | Yes | |||
— GRAPH | Yes | |||
Know-how protection | ||||
● User program protection/password protection | Yes | |||
● Copy protection | Yes | |||
● Block protection | Yes | |||
Access protection | ||||
● protection of confidential configuration data | Yes | |||
● Password for display | Yes | |||
● Protection level: Write protection | Yes | |||
● Protection level: Read/write protection | Yes | |||
● Protection level: Complete protection | Yes | |||
programming / cycle time monitoring / header | ||||
● lower limit | adjustable minimum cycle time | |||
● upper limit | adjustable maximum cycle time | |||

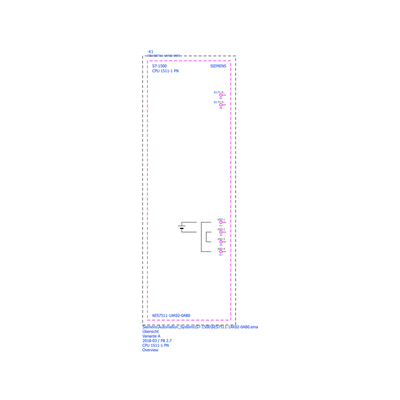

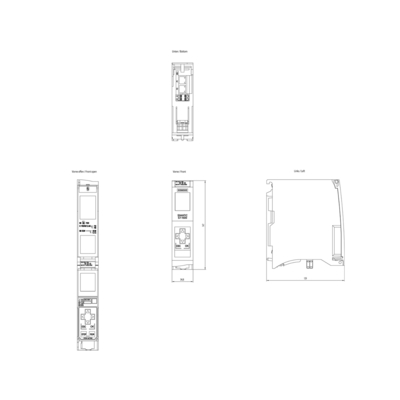

Dimensions | ||||
Width | 35 mm | |||
Height | 147 mm | |||
Depth | 129 mm | |||
Weights | ||||
Weight, approx. | 405 g | |||
Company Profile
ABOUT
COMPANY
The company adheres to the mission of making "smart manufacturing simpler" and the vision of “where there is smart manufacturing, there is Dr Gong Group”, aiming to become a provider of intelligent service solutions and to promote the upgrading of the intelligent industry. The company's business covers four core areas of intelligent equipment, industrial internet, industrial automation, and industrial equipment export. It is committed to building a one-stop supply of industry robots, intelligent equipment, automation equipment, and components. The company is supported by platform and driven by information and digitization, fully integrating industrial chain resources, linking terminal intelligent factories, automation integrators, and upstream and downstream resources of the intelligent equipment industry. Starting with standard setting and product development, it follows the development path of "product supply-platform integration-ecological drive" and gradually increases the coverage of standardized, modular, and componentized parts in robot workstations, intelligent equipment, and automation equipment, improves the supply efficiency of automation equipment, reduces overall costs, and promotes the technological progress of China's intelligent equipment industry. The company will continue to deepen the fields of robots, artificial intelligence, industrial automation equipment, and intelligent manufacturing, solidly research and develop, innovate, and assist in the automation and intelligence of the manufacturing industry, based in China, and empower "Made in China" to innovate the world's manufacturing industry.
Packing & Delivery
FAQ
1. Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Want to Know more details about this product
