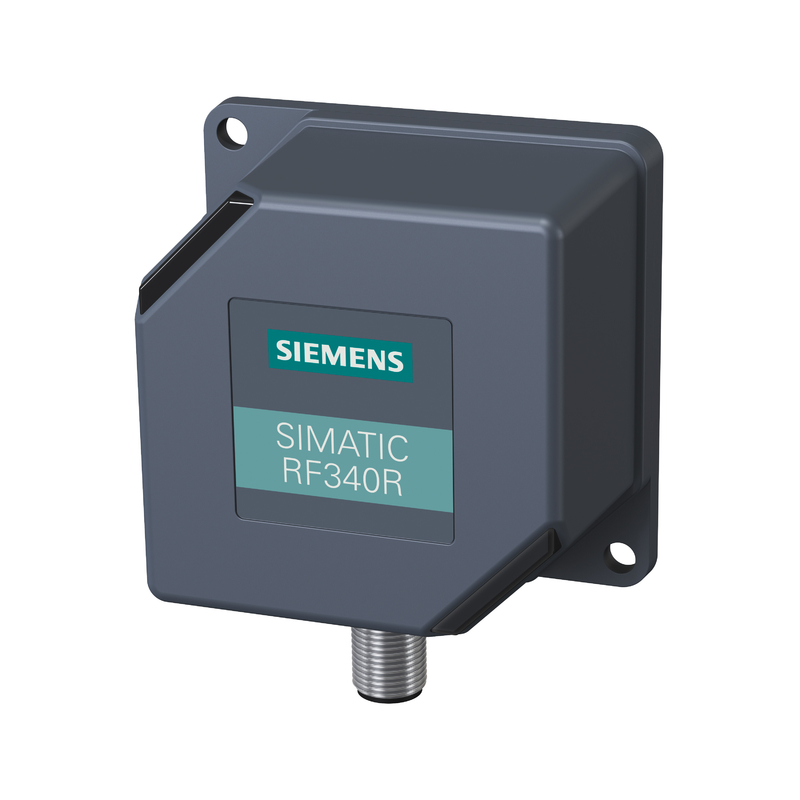

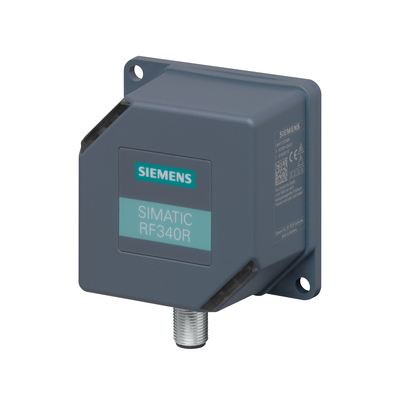

Industrial RF300 Reader RF340R RS422 Interface IP67 Integrated Antenna 6GT2801-2BA10 for Siemens
Product Details:
| Place of Origin: | Germany, Germany |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $479.35/cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original Brand | Warranty: | 12 Months |
| Shipping Term: | FOB | Package: | Original Packaging |
| Payment: | TT | MOQ: | 1 Piece |
| Quality: | 100% Strictly Tested | Application: | Industrial Communication |
Product Description
Specification
suitability for operation | RF300, ISO 15693 and MOBY E transponder, for connecting to communication modules | |||
radio frequencies | ||||
operating frequency / rated value | 13.56 MHz | |||
range / maximum | 140 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964 | |||
protocol / with radio transmission | RF300 specific, ISO 15693, ISO 18000-3, ISO 14443 | |||
transfer rate / with radio transmission / maximum | 106 kbit/s | |||
product feature / multitag-capable | No | |||
electrical data | ||||
transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s | |||
transmission time / for user data | ||||
● for write access / per byte / typical | 0.13 ms | |||
● for read access / per byte / typical | 0.13 ms | |||
interfaces | ||||
standard for interfaces / for communication | RS422 | |||
type of electrical connection | M12, 8-pin | |||
mechanical data | ||||
material | PA 12 | |||
color | Ti gray | |||
tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m | |||
mounting distance / relating to metal surfaces / recommended / minimum | 0 mm | |||
supply voltage, current consumption, power loss | ||||
supply voltage | ||||
● at DC / rated value | 24 V | |||
● at DC | 20.4 ... 28.8 V | |||
consumed current / at DC | ||||
● at 24 V / typical | 0.06 A | |||
ambient conditions | ||||
ambient temperature | ||||
● during operation | -25 ... +70 °C | |||
● during storage | -40 ... +85 °C | |||
● during transport | -40 ... +85 °C | |||
protection class IP | IP67 | |||
shock resistance | EN 60721-3-7 Class 7 M2 | |||
shock acceleration | 500 m/s² | |||
vibrational acceleration | 200 m/s² | |||
design, dimensions and weights | ||||
width | 75 mm | |||
height | 41 mm | |||
depth | 75 mm | |||
net weight | 0.25 kg | |||
fastening method | 2 x M5 screws | |||
wire length | ||||
● for RS 422 interface / maximum | 1000 m | |||
product features, product functions, product components / general | ||||
display version | 5-color LED | |||
product feature / silicon-free | Yes | |||
standards, specifications, approvals | ||||
certificate of suitability | Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus | |||
certificate of suitability | ||||
● IECEx | No | |||
MTBF | 260 a | |||
further information / internet links | ||||
internet link | ||||
● to web page: selection aid TIA Selection Tool | https://support.industry.siemens.com/cs/ww/en/view/67384964 | |||
● to website: Industrial communication | http://www.siemens.com/ident/rfid | |||
● to website: Industry Mall | https://mall.industry.siemens.com | |||
● to website: Information and Download Center | http://www.siemens.com/industry/infocenter | |||
● to website: Image database | http://automation.siemens.com/bilddb | |||
● to website: CAx-Download-Manager | http://www.siemens.com/cax | |||
● to website: Industry Online Support | https://support.industry.siemens.com | |||
