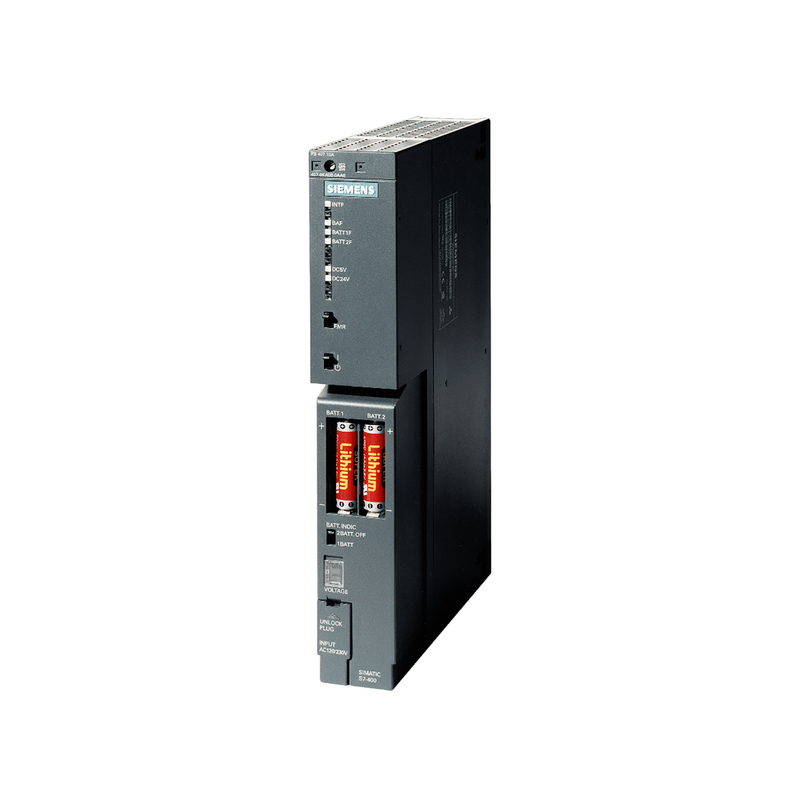

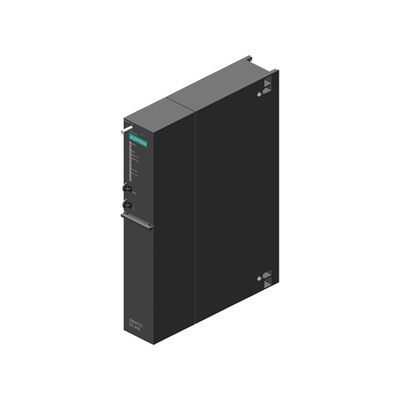

100% Original SIMATIC S7-400 Power Supply 120/230V UC 5V DC/10A 6ES7407-0KA02-0AA0 for Siemens at Stock
Product Details:
| Place of Origin: | Germany, Germany |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $782.00/cartons 1-9 cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Condition: | 100% Original Brand | Package: | Carton Package |
| Warranty: | One Year | Shipping Term: | FOB |
| Payment: | T/T | MOQ: | 1 Piece |
| Application: | Indusrtial Automation | Quality: | 100% Strictly Tested |
Product Description
Specification

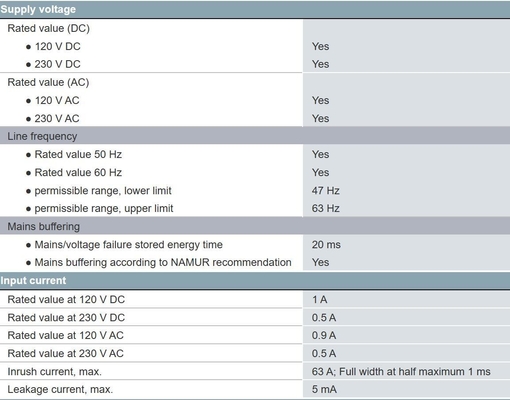

Supply voltage | ||||
Rated value (DC) | ||||
● 120 V DC | Yes | |||
● 230 V DC | Yes | |||
Rated value (AC) | ||||
● 120 V AC | Yes | |||
● 230 V AC | Yes | |||
Line frequency | ||||
● Rated value 50 Hz | Yes | |||
● Rated value 60 Hz | Yes | |||
● permissible range, lower limit | 47 Hz | |||
● permissible range, upper limit | 63 Hz | |||
Mains buffering | ||||
● Mains/voltage failure stored energy time | 20 ms | |||
● Mains buffering according to NAMUR recommendation | Yes | |||
Input current | ||||
Rated value at 120 V DC | 1 A | |||
Rated value at 230 V DC | 0.5 A | |||
Rated value at 120 V AC | 0.9 A | |||
Rated value at 230 V AC | 0.5 A | |||
Inrush current, max. | 63 A; Full width at half maximum 1 ms | |||
Leakage current, max. | 5 mA | |||

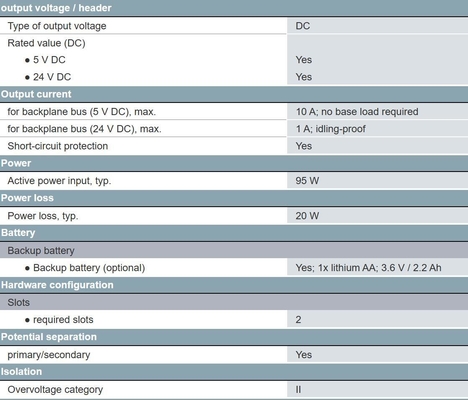

output voltage / header | ||||
Type of output voltage | DC | |||
Rated value (DC) | ||||
● 5 V DC | Yes | |||
● 24 V DC | Yes | |||
Output current | ||||
for backplane bus (5 V DC), max. | 10 A; no base load required | |||
for backplane bus (24 V DC), max. | 1 A; idling-proof | |||
Short-circuit protection | Yes | |||
Power | ||||
Active power input, typ. | 95 W | |||
Power loss | ||||
Power loss, typ. | 20 W | |||
Battery | ||||
Backup battery | ||||
● Backup battery (optional) | Yes; 1x lithium AA; 3.6 V / 2.2 Ah | |||
Hardware configuration | ||||
Slots | ||||
● required slots | 2 | |||
Potential separation | ||||
primary/secondary | Yes | |||
Isolation | ||||
Overvoltage category | II | |||

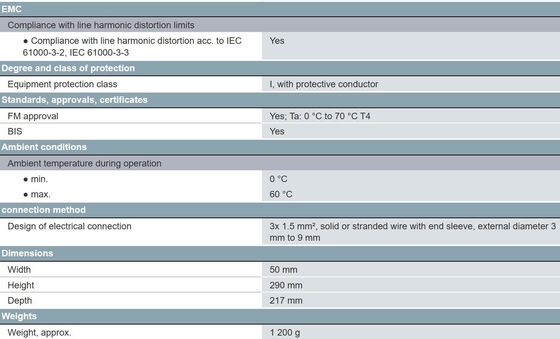

EMC | ||||
Compliance with line harmonic distortion limits | ||||
● Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 | Yes | |||
Degree and class of protection | ||||
Equipment protection class | I, with protective conductor | |||
Standards, approvals, certificates | ||||
FM approval | Yes; Ta: 0 °C to 70 °C T4 | |||
BIS | Yes | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● min. | 0 °C | |||
● max. | 60 °C | |||
connection method | ||||
Design of electrical connection | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm | |||
Dimensions | ||||
Width | 50 mm | |||
Height | 290 mm | |||
Depth | 217 mm | |||
Weights | ||||
Weight, approx. | 1 200 g | |||
