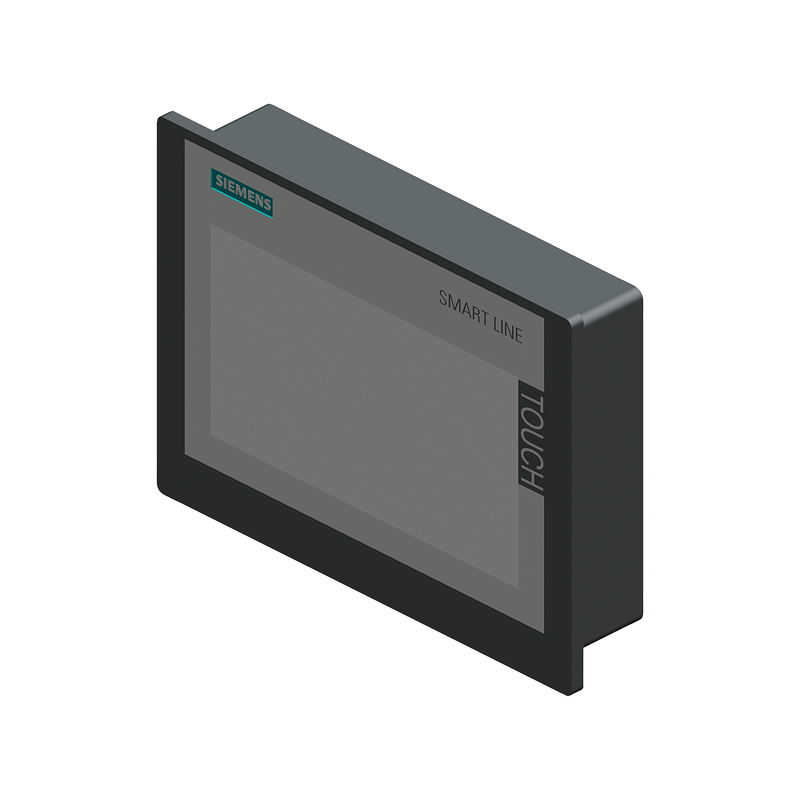

Industrial Automation Siemens HMI 7 inch Simatic SMART 700 IE V3 Display 6AV66480CC113AX0
Product Details:
| Place of Origin: | China |
| Brand Name: | Siemens |
| Model Number: | 6AV6648-0CC11-3AX0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $117.00/cartons 1-9 cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Brand: | Siemens | Condition: | 100% Original |
|---|---|---|---|
| Warranty: | 1 Year | Package: | 100% Original Package |
| Application: | Industrial Automation | MOQ: | 1 Piece |
| Shipping Term: | FOB | Payment Term: | TT |
| Quality: | 100% Tested | Service: | One-stop Service |
Product Description
Specification
Company Profile
ABOUT
COMPANY
The company adheres to the mission of making "smart manufacturing simpler" and the vision of “where there is smart manufacturing, there is Dr Gong Group”, aiming to become a provider of intelligent service solutions and to promote the upgrading of the intelligent industry. The company's business covers four core areas of intelligent equipment, industrial internet, industrial automation, and industrial equipment export. It is committed to building a one-stop supply of industry robots, intelligent equipment, automation equipment, and components. The company is supported by platform and driven by information and digitization, fully integrating industrial chain resources, linking terminal intelligent factories, automation integrators, and upstream and downstream resources of the intelligent equipment industry. Starting with standard setting and product development, it follows the development path of "product supply-platform integration-ecological drive" and gradually increases the coverage of standardized, modular, and componentized parts in robot workstations, intelligent equipment, and automation equipment, improves the supply efficiency of automation equipment, reduces overall costs, and promotes the technological progress of China's intelligent equipment industry. The company will continue to deepen the fields of robots, artificial intelligence, industrial automation equipment, and intelligent manufacturing, solidly research and develop, innovate, and assist in the automation and intelligence of the manufacturing industry, based in China, and empower "Made in China" to innovate the world's manufacturing industry.
Packing & Delivery
FAQ

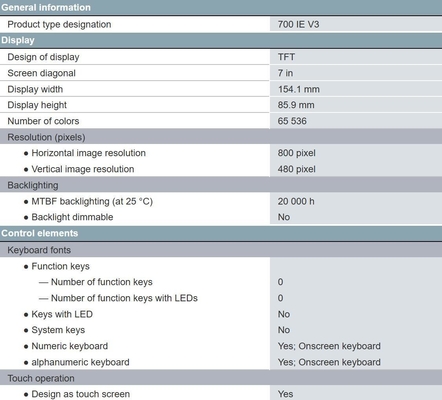

General information | ||||
Product type designation | 700 IE V3 | |||
Display | ||||
Design of display | TFT | |||
Screen diagonal | 7 in | |||
Display width | 154.1 mm | |||
Display height | 85.9 mm | |||
Number of colors | 65 536 | |||
Resolution (pixels) | ||||
● Horizontal image resolution | 800 pixel | |||
● Vertical image resolution | 480 pixel | |||
Backlighting | ||||
● MTBF backlighting (at 25 °C) | 20 000 h | |||
● Backlight dimmable | No | |||
Control elements | ||||
Keyboard fonts | ||||
● Function keys | ||||
— Number of function keys | 0 | |||
— Number of function keys with LEDs | 0 | |||
● Keys with LED | No | |||
● System keys | No | |||
● Numeric keyboard | Yes; Onscreen keyboard | |||
● alphanumeric keyboard | Yes; Onscreen keyboard | |||

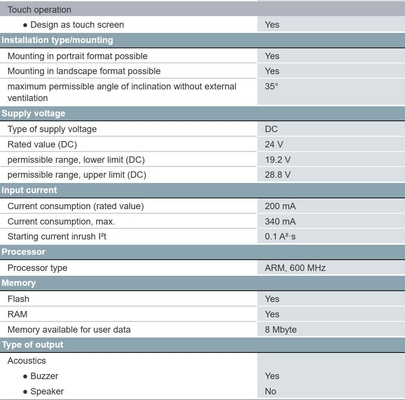

Touch operation | ||||
● Design as touch screen | Yes | |||
Installation type/mounting | ||||
Mounting in portrait format possible | Yes | |||
Mounting in landscape format possible | Yes | |||
maximum permissible angle of inclination without external ventilation | 35° | |||
Supply voltage | ||||
Type of supply voltage | DC | |||
Rated value (DC) | 24 V | |||
permissible range, lower limit (DC) | 19.2 V | |||
permissible range, upper limit (DC) | 28.8 V | |||
Input current | ||||
Current consumption (rated value) | 200 mA | |||
Current consumption, max. | 340 mA | |||
Starting current inrush I²t | 0.1 A²·s | |||
Processor | ||||
Processor type | ARM, 600 MHz | |||
Memory | ||||
Flash | Yes | |||
RAM | Yes | |||
Memory available for user data | 8 Mbyte | |||
Type of output | ||||
Acoustics | ||||
● Buzzer | Yes | |||
● Speaker | No | |||

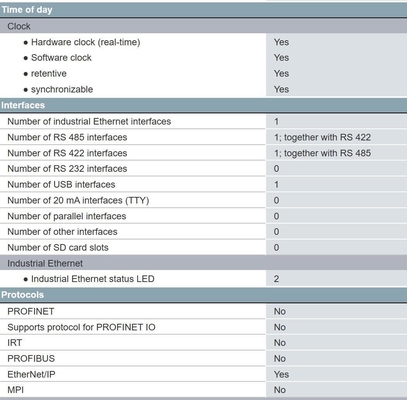

Time of day | ||||
Clock | ||||
● Hardware clock (real-time) | Yes | |||
● Software clock | Yes | |||
● retentive | Yes | |||
● synchronizable | Yes | |||
Interfaces | ||||
Number of industrial Ethernet interfaces | 1 | |||
Number of RS 485 interfaces | 1; together with RS 422 | |||
Number of RS 422 interfaces | 1; together with RS 485 | |||
Number of RS 232 interfaces | 0 | |||
Number of USB interfaces | 1 | |||
Number of 20 mA interfaces (TTY) | 0 | |||
Number of parallel interfaces | 0 | |||
Number of other interfaces | 0 | |||
Number of SD card slots | 0 | |||
Industrial Ethernet | ||||
● Industrial Ethernet status LED | 2 | |||
Protocols | ||||
PROFINET | No | |||
Supports protocol for PROFINET IO | No | |||
IRT | No | |||
PROFIBUS | No | |||
EtherNet/IP | Yes | |||
MPI | No | |||
Protocols (Ethernet) | ||||
● TCP/IP | Yes | |||
● DHCP | Yes | |||
● SNMP | No | |||
● DCP | No | |||
● LLDP | No | |||
WEB characteristics | ||||
● HTTP | No | |||
● HTML | No | |||
Redundancy mode | ||||
Media redundancy | ||||
— MRP | No | |||
Further protocols | ||||
● CAN | No | |||
● MODBUS | Yes | |||
Interrupts/diagnostics/status information | ||||
Diagnoses | ||||
● Diagnostic information readable | No | |||
EMC | ||||
Emission of radio interference acc. to EN 55 011 | ||||
● Limit class A, for use in industrial areas | Yes | |||
● Limit class B, for use in residential areas | No | |||
Degree and class of protection | ||||
IP (at the front) | IP65 | |||
IP (rear) | IP20 | |||
NEMA (front) | ||||
● Enclosure Type 4 at the front | No | |||
● Enclosure Type 4x at the front | No | |||
Standards, approvals, certificates | ||||
CE mark | Yes | |||
cULus | No | |||
RCM (formerly C-TICK) | No | |||
KC approval | No | |||
Use in hazardous areas | ||||
● ATEX Zone 2 | No | |||
● ATEX Zone 22 | No | |||
● IECEx Zone 2 | No | |||
● IECEx Zone 22 | No | |||
● cULus Class I Zone 1 | No | |||
● cULus Class I Zone 2, Division 2 | No | |||
● FM Class I Division 2 | No | |||
Marine approval | ||||
● Germanischer Lloyd (GL) | No | |||
● American Bureau of Shipping (ABS) | No | |||
● Bureau Veritas (BV) | No | |||
● Det Norske Veritas (DNV) | No | |||
● Lloyds Register of Shipping (LRS) | No | |||
● Nippon Kaiji Kyokai (Class NK) | No | |||
● Polski Rejestr Statkow (PRS) | No | |||
Railway application | ||||
● EN 50121-4 | No | |||
● EN 50155 | No | |||
● Fire protection acc. to EN 45545-2 | No | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
Operation (vertical installation) | ||||
— For vertical installation, min. | 0 °C | |||
— For vertical installation, max. | 50 °C | |||
Operation (max. tilt angle) | ||||
— At maximum tilt angle, min. | 0 °C | |||
— At maximum tilt angle, max. | 40 °C | |||
Operation (vertical installation, portrait format) | ||||
— For vertical installation, min. | 0 °C | |||
— For vertical installation, max. | 40 °C | |||
Operation (max. tilt angle, portrait format) | ||||
— At maximum tilt angle, min. | 0 °C | |||
— At maximum tilt angle, max. | 35 °C | |||
Ambient temperature during storage/transportation | ||||
● min. | -20 °C | |||
● max. | 60 °C | |||
Relative humidity | ||||
● Operation, max. | 90 %; at <40 °C (no condensation) | |||
Operating systems | ||||
proprietary | Yes | |||
pre-installed operating system | ||||
● Windows CE | No | |||
configuration / header | ||||
Message indicator | Yes | |||
Alarm system (incl. buffer and acknowledgment) | Yes | |||
Process value display (output) | Yes | |||
Process value default (input) possible | Yes | |||
Recipe management | Yes | |||
Configuration software | ||||
● STEP 7 Basic (TIA Portal) | No | |||
● STEP 7 Professional (TIA Portal) | No | |||
● WinCC flexible Compact | No | |||
● WinCC flexible Standard | Yes; WinCC flexible Smart V3 | |||
● WinCC flexible Advanced | No | |||
● WinCC Basic (TIA Portal) | No | |||
● WinCC Comfort (TIA Portal) | No | |||
● WinCC Advanced (TIA Portal) | No | |||
● WinCC Professional (TIA Portal) | No | |||
Languages | ||||
Online languages | ||||
● Number of online/runtime languages | 5 | |||
Project languages | ||||
● Languages per project | 32 | |||
Functionality under WinCC (TIA Portal) | ||||
Libraries | Yes | |||
Number of Visual Basic Scripts | No | |||
Task planner | Yes | |||
Help system | Yes | |||
● Number of characters per info text | 320 | |||
Message system | ||||
● Number of alarm classes | 32 | |||
● Bit messages | ||||
— Number of bit messages | 400 | |||
● Analog messages | ||||
— Number of analog messages | 20 | |||
● System messages HMI | Yes | |||
● Number of characters per message | 80 | |||
● Number of process values per message | 8 | |||
● Message indicator | Yes | |||
● Message buffer | Ring buffer (n x 256 entries), retentive, maintenance-free | |||
— Number of entries | 256 | |||
— Circulating buffer | Yes | |||
— retentive | Yes | |||
— maintenance-free | Yes | |||
Recipe management | ||||
● Number of recipes | 10 | |||
● Data records per recipe | 100 | |||
● Entries per data record | 50 | |||
● Size of internal recipe memory | 128 kbyte | |||
● Recipe memory expandable | No | |||
Variables | ||||
● Number of variables per device | 800 | |||
● Number of variables per screen | 100 | |||
● Limit values | Yes | |||
● Multiplexing | Yes | |||
● Structures | No | |||
● Arrays | Yes | |||
Images | ||||
● Number of configurable images | 150 | |||
● Permanent window/default | Yes; No permanent window can be configured | |||
● Global image | Yes | |||
● Image selection by PLC | Yes | |||
● Image number in the PLC | Yes | |||
Image objects | ||||
● Text fields | Yes | |||
● I/O fields | Yes | |||
● Graphic I/O fields (graphics list) | Yes | |||
● Symbolic I/O fields (text list) | Yes | |||
● Date/time fields | Yes | |||
● Switches | Yes | |||
● Buttons | Yes | |||
● Graphic display | Yes | |||
Complex image objects | ||||
● Number of complex objects per screen | 5 | |||
● Alarm view | Yes | |||
● Trend view | Yes | |||
● User view | Yes | |||
● Status/control | No | |||
● Sm@rtClient view | No | |||
● Recipe view | Yes | |||
● f(x) trend view | No | |||
● System diagnostics view | No | |||
● Media Player | No | |||
● Bar graphs | Yes | |||
● Sliders | No | |||
● Pointer instruments | No | |||
● Analog/digital clock | No | |||
Lists | ||||
● Number of text lists per project | 200 | |||
● Number of entries per text list | 50 | |||
● Number of graphics lists per project | 100 | |||
● Number of entries per graphics list | 50 | |||
Archiving | ||||
● Number of archives per device | 2 | |||
● Number of entries per archive | 10 000 | |||
● Message archive | Yes | |||
● Process value archive | Yes | |||
● Archiving methods | Sequential log, circular log, alarm log, process value archive | |||
— Sequential archive | Yes | |||
● Memory location | ||||
— Memory card | No | |||
— USB memory | Yes | |||
— Ethernet | No | |||
● Data storage format | CSV file, readable, e.g. with MS Excel, MS Access | |||
— CSV | No | |||
— TXT | Yes | |||
— RDB | No | |||
Security | ||||
● Number of user groups | 50 | |||
● Number of user rights | 32 | |||
● number of users / for WinCC in the TIA Portal | 50 | |||
● Password export/import | No | |||
Character sets | ||||
● Keyboard fonts | US American (English) | |||
— US English | Yes | |||
Transfer (upload/download) | ||||
● MPI/PROFIBUS DP | No | |||
● USB | No | |||
● Ethernet | Yes | |||
● using external storage medium | No | |||
Process coupling | ||||
● S7-1200 | No | |||
● S7-1500 | No | |||
● S7-200 | Yes | |||
● S7-300/400 | No | |||
● LOGO! | Yes | |||
● WinAC | No | |||
● SINUMERIK | No | |||
● SIMOTION | No | |||
● Allen Bradley (EtherNet/IP) | No | |||
● Allen Bradley (DF1) | No | |||
● Mitsubishi (MC TCP/IP) | No | |||
● Mitsubishi (FX) | Yes | |||
● OMRON (FINS TCP) | No | |||
● OMRON (LINK/Multilink) | Yes | |||
● Modicon (Modbus TCP/IP) | No | |||
● Modicon (Modbus) | Yes | |||
Service tools/configuration aids | ||||
● Backup/Restore manually | Yes | |||
● Backup/Restore automatically | No | |||
● Simulation | Yes | |||
● Device switchover | Yes | |||
Peripherals/Options | ||||
Peripherals | none | |||
Printer | No | |||
SIMATIC HMI MM memory card: Multi Media Card | No | |||
SIMATIC HMI SD memory card: Secure Digital memory card | No | |||
USB memory | Yes | |||
Mechanics/material | ||||
Enclosure material (front) | ||||
● Plastic | Yes | |||
● Aluminum | No | |||
● Stainless steel | No | |||

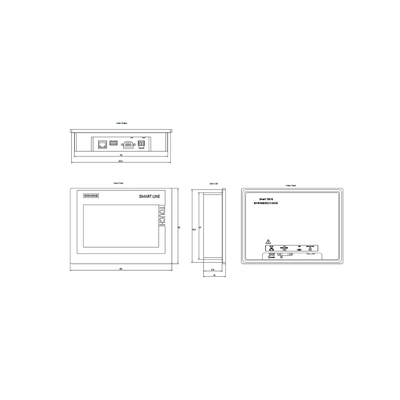

Dimensions | ||||
Width of the housing front | 209 mm | |||
Height of housing front | 155 mm | |||
Mounting cutout, width | 192 mm | |||
Mounting cutout, height | 138 mm | |||
Overall depth | 39 mm | |||
Weights | ||||
Weight (without packaging) | 765 g | |||
1. Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to theGong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import andexport services as one of the science and technology companies.
2. What can you buy from us?
PLC,VFD, HMI, hydraulic products, low-voltage power distribution, industrial robots and core components
3. Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4. What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provincesand cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stopcomprehensive services, save efforts, labor and cost.
5. Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6. How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7. Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8. How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9. Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigeratedshipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements mayincur additional costs.
10, how about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight ofyour order. Please feel free to contact us for more information.
Want to Know more details about this product
