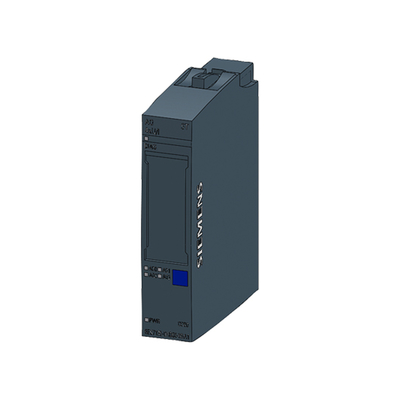

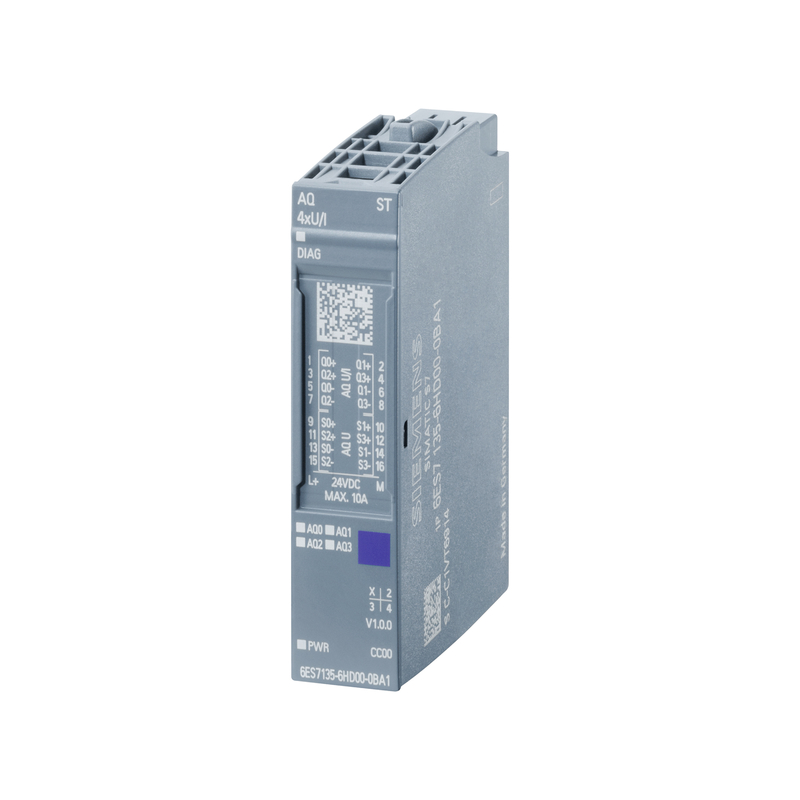

Original ET 200SP AQ 4xU/I ST IM 155-6PN Standard 6ES71356HD000BA1 Shipping term FOB
Product Details:
| Place of Origin: | IM 155-6PN Standard 6ES71356HD000BA1 |
| Brand Name: | Siemens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $168.25/cartons |
| Packaging Details: | CARTONS |
|
Detail Information |
|||
| Communication Interface: | Other | Brand: | Siemens |
|---|---|---|---|
| Package: | Carton Package | Warranty: | One Year |
| Condition: | 100% Original Brand | MOQ: | 1 Piece |
| Payment Term: | TT | Quality: | 100%Brand |
| Application: | Automation Industrial | Service: | One-stop Service |
| Shipping Term: | FOB | ||
Product Description
Specification

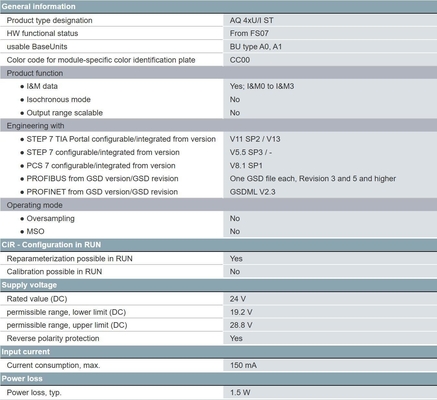

General information | ||||
Product type designation | AQ 4xU/I ST | |||
HW functional status | From FS07 | |||
usable BaseUnits | BU type A0, A1 | |||
Color code for module-specific color identification plate | CC00 | |||
Product function | ||||
● I&M data | Yes; I&M0 to I&M3 | |||
● Isochronous mode | No | |||
● Output range scalable | No | |||
Engineering with | ||||
● STEP 7 TIA Portal configurable/integrated from version | V11 SP2 / V13 | |||
● STEP 7 configurable/integrated from version | V5.5 SP3 / - | |||
● PCS 7 configurable/integrated from version | V8.1 SP1 | |||
● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |||
● PROFINET from GSD version/GSD revision | GSDML V2.3 | |||
Operating mode | ||||
● Oversampling | No | |||
● MSO | No | |||
CiR - Configuration in RUN | ||||
Reparameterization possible in RUN | Yes | |||
Calibration possible in RUN | No | |||
Supply voltage | ||||
Rated value (DC) | 24 V | |||
permissible range, lower limit (DC) | 19.2 V | |||
permissible range, upper limit (DC) | 28.8 V | |||
Reverse polarity protection | Yes | |||

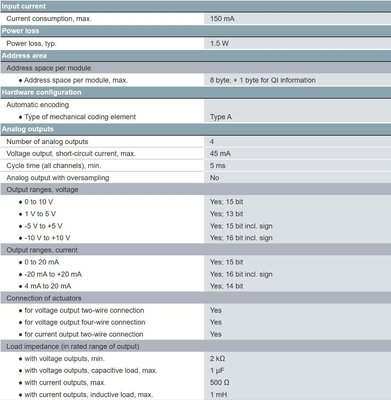

Input current | ||||
Current consumption, max. | 150 mA | |||
Power loss | ||||
Power loss, typ. | 1.5 W | |||
Address area | ||||
Address space per module | ||||
● Address space per module, max. | 8 byte; + 1 byte for QI information | |||
Hardware configuration | ||||
Automatic encoding | ||||
● Type of mechanical coding element | Type A | |||
Analog outputs | ||||
Number of analog outputs | 4 | |||
Voltage output, short-circuit current, max. | 45 mA | |||
Cycle time (all channels), min. | 5 ms | |||
Analog output with oversampling | No | |||
Output ranges, voltage | ||||
● 0 to 10 V | Yes; 15 bit | |||
● 1 V to 5 V | Yes; 13 bit | |||
● -5 V to +5 V | Yes; 15 bit incl. sign | |||
● -10 V to +10 V | Yes; 16 bit incl. sign | |||
Output ranges, current | ||||
● 0 to 20 mA | Yes; 15 bit | |||
● -20 mA to +20 mA | Yes; 16 bit incl. sign | |||
● 4 mA to 20 mA | Yes; 14 bit | |||
Connection of actuators | ||||
● for voltage output two-wire connection | Yes | |||
● for voltage output four-wire connection | Yes | |||
● for current output two-wire connection | Yes | |||
Load impedance (in rated range of output) | ||||
● with voltage outputs, min. | 2 kΩ | |||
● with voltage outputs, capacitive load, max. | 1 µF | |||
● with current outputs, max. | 500 Ω | |||
● with current outputs, inductive load, max. | 1 mH | |||
Destruction limits against externally applied voltages and currents | ||||
● Voltages at the outputs | 30 V | |||
Cable length | ||||
● shielded, max. | 1 000 m; 200 m for voltage output | |||
Analog value generation for the outputs | ||||
Integration and conversion time/resolution per channel | ||||
● Resolution with overrange (bit including sign), max. | 16 bit | |||
Settling time | ||||
● for resistive load | 0.1 ms | |||
● for capacitive load | 1 ms | |||
● for inductive load | 0.5 ms | |||
Errors/accuracies | ||||
Linearity error (relative to output range), (+/-) | 0.03 % | |||
Temperature error (relative to output range), (+/-) | 0.005 %/K | |||
Crosstalk between the outputs, min. | -50 dB | |||
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05 % | |||
Operational error limit in overall temperature range | ||||
● Voltage, relative to output range, (+/-) | 0.5 % | |||
● Current, relative to output range, (+/-) | 0.5 % | |||
Basic error limit (operational limit at 25 °C) | ||||
● Voltage, relative to output range, (+/-) | 0.3 % | |||
● Current, relative to output range, (+/-) | 0.3 % | |||
Interrupts/diagnostics/status information | ||||
Diagnostics function | Yes | |||
Substitute values connectable | Yes | |||
Alarms | ||||
● Diagnostic alarm | Yes | |||
Diagnoses | ||||
● Monitoring the supply voltage | Yes | |||
● Wire-break | Yes | |||
● Short-circuit | Yes | |||
● Group error | Yes | |||
● Overflow/underflow | Yes | |||
Diagnostics indication LED | ||||
● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |||
● Channel status display | Yes; green LED | |||
● for channel diagnostics | No | |||
● for module diagnostics | Yes; green/red DIAG LED | |||
Potential separation | ||||
Potential separation channels | ||||
● between the channels | No | |||
● between the channels and backplane bus | Yes | |||
● between the channels and the power supply of the electronics | Yes | |||
Isolation | ||||
Isolation tested with | 707 V DC (type test) | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● horizontal installation, min. | -30 °C; < 0 °C as of FS07 | |||
● horizontal installation, max. | 60 °C; Observe derating | |||
● vertical installation, min. | -30 °C; < 0 °C as of FS07 | |||
● vertical installation, max. | 50 °C; Observe derating | |||
Altitude during operation relating to sea level | ||||
● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |||

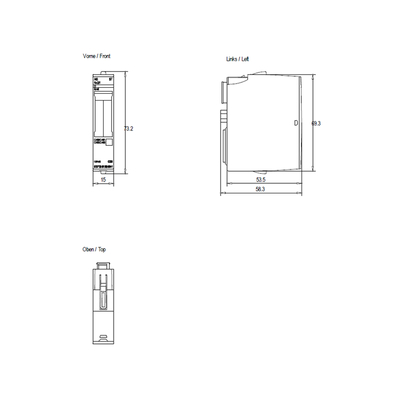

Dimensions | ||||
Width | 15 mm | |||
Height | 73 mm | |||
Depth | 58 mm | |||
Weights | ||||
Weight, approx. | 31 g | |||
