Product Details:

Place of Origin: China
Brand Name: Siemens

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $336.49/cartons
Packaging Details: CARTONS
Get Best Price Contact Now

Detail Information
Communication Interface: Other Brand: Siemens
Condition: 100% Original Brand Warranty: One Year
Package: Original Packaging Shipping Term: FOB
Payment: T/T MOQ: 1 Piece
Application: Automation Industrial Quality: 100% Original 100% Brand
Service: One-stop Service

Product Description

Siemens ET 200S 4DQ 24 V DC/0.5 A HF 4 DO High Feature 24 V DC/0.5 A 6ES71324BD000AB0 0
Siemens ET 200S 4DQ 24 V DC/0.5 A HF 4 DO High Feature 24 V DC/0.5 A 6ES71324BD000AB0 1
Siemens ET 200S 4DQ 24 V DC/0.5 A HF 4 DO High Feature 24 V DC/0.5 A 6ES71324BD000AB0 2

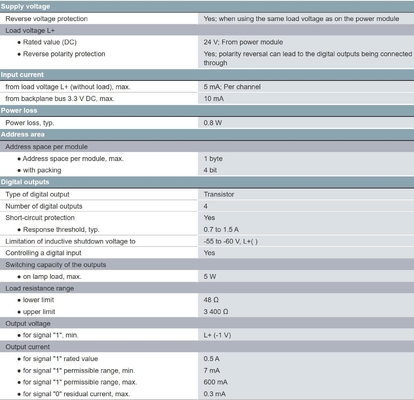

Specification
Supply voltage
Reverse voltage protection
Yes; when using the same load voltage as on the power module
Load voltage L+
● Rated value (DC)
24 V; From power module
● Reverse polarity protection
Yes; polarity reversal can lead to the digital outputs being connected through
Input current
from load voltage L+ (without load), max.
5 mA; Per channel
from backplane bus 3.3 V DC, max.
10 mA
Power loss
Power loss, typ.
0.8 W
Address area
Address space per module
● Address space per module, max.
1 byte
● with packing
4 bit
Digital outputs
Type of digital output
Transistor
Number of digital outputs
4
Short-circuit protection
Yes
● Response threshold, typ.
0.7 to 1.5 A
Limitation of inductive shutdown voltage to
-55 to -60 V, L+( )
Controlling a digital input
Yes
Switching capacity of the outputs
● on lamp load, max.
5 W
Load resistance range
● lower limit
48 Ω
● upper limit
3 400 Ω
Output voltage
● for signal "1", min.
L+ (-1 V)
Output current
● for signal "1" rated value
0.5 A
● for signal "1" permissible range, min.
7 mA
● for signal "1" permissible range, max.
600 mA
● for signal "0" residual current, max.
0.3 mA

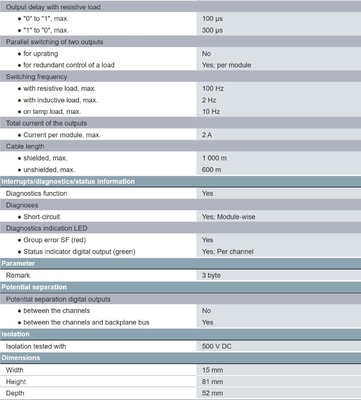

Output delay with resistive load
● "0" to "1", max.
100 µs
● "1" to "0", max.
300 µs
Parallel switching of two outputs
● for uprating
No
● for redundant control of a load
Yes; per module
Switching frequency
● with resistive load, max.
100 Hz
● with inductive load, max.
2 Hz
● on lamp load, max.
10 Hz
Total current of the outputs
● Current per module, max.
2 A
Cable length
● shielded, max.
1 000 m
● unshielded, max.
600 m
Interrupts/diagnostics/status information
Diagnostics function
Yes
Diagnoses
● Short-circuit
Yes; Module-wise
Diagnostics indication LED
● Group error SF (red)
Yes
● Status indicator digital output (green)
Yes; Per channel
Parameter
Remark
3 byte
Potential separation
Potential separation digital outputs
● between the channels
No
● between the channels and backplane bus
Yes
Isolation
Isolation tested with
500 V DC

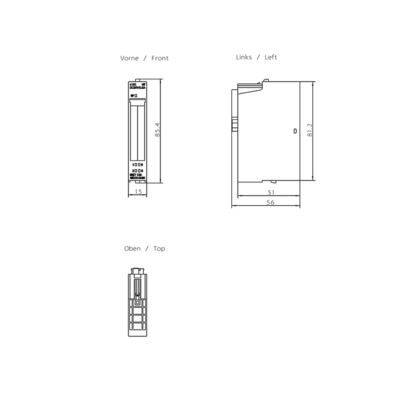

Dimensions
Width
15 mm
Height
81 mm
Depth
52 mm
Weights
Weight, approx.
40 g
