COMMUNICATIONS CONVERTER FOR SYNCHR 7XV5662-0AD00 22kg Communication interface Other
Product Details:
| Place of Origin: | Germany |
| Brand Name: | other |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,454.00/cartons |
|
Detail Information |
|||
| Memory: | No | I/O Number: | No |
|---|---|---|---|
| Communication Interface: | Other | Weight: | 1.22kg |
| Product Name: | Communication Accessories | ||
Product Description
Specification
Article Number (Market Facing Number) | 7XV5662-0AD00 | |

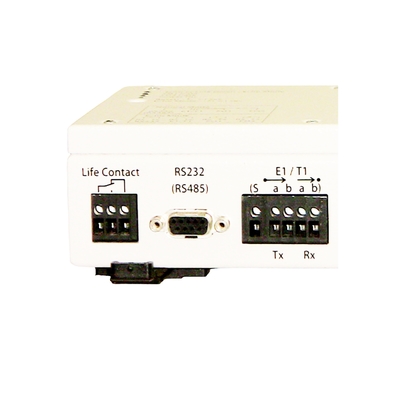

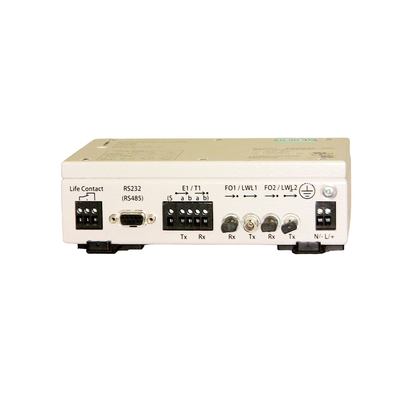

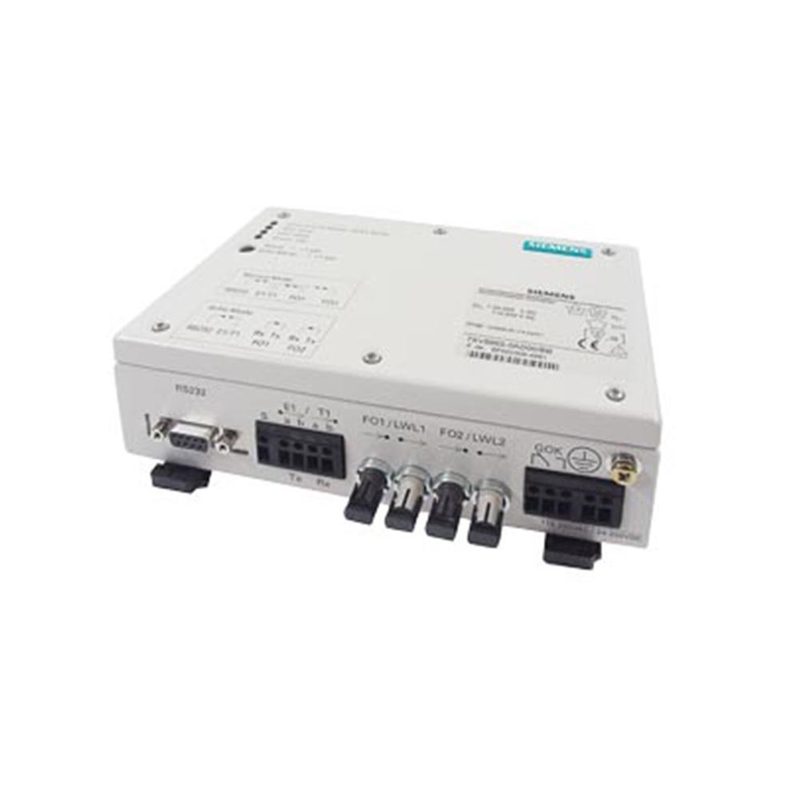

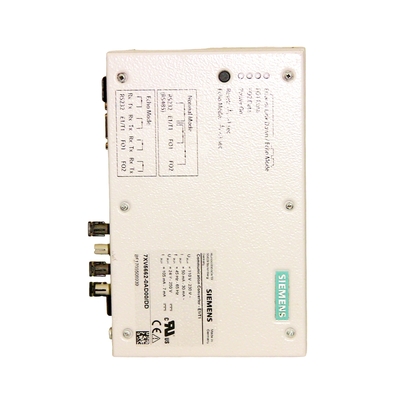

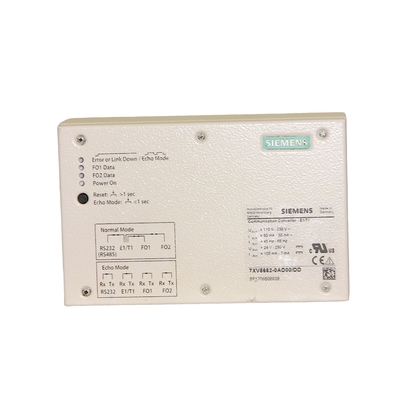

Product Description | COMMUNICATIONS CONVERTER FOR THE CONVERSION OF SYNCHR. OR ASYNCHRONOUS SERIAL DATAS TO A E1 (2 MBIT/S-G703.6) OR T1(1.544 MBIT/S) NETW. INTERF. EL.OUTP.INTERFACE VIA TER.BLOCK TWO INDEPENDENT SERIAL OPTICAL INPUTS WITH ST-CONNECTORS WITH 820NM F. MULTIMODE FIBER CABLE F. MAX.512 KBIT/S/115,2 KBIT/S FOR SYNC./ASYNC. DATAS. ONE RS232/RS485 INTERFACE WITH MAX.115,2 KBIT/S (RS485 MAX. 57,6KBIT/S) DESIGNED AS 9POL.SUB-D SOCKET FOR THE CONNECTION WITH DIGSI-KABEL 7XV5100. WIDERANGE POWER SUPPLY/AUXILLI. VOLTAGE FROM 24V-250V DC OR 115/230V AC | |
Product family | 7XV5662 - Communication Converter | |
Product Lifecycle (PLM) | PM300:Active Product | |
Price data | ||
Region Specific PriceGroup / Headquarter Price Group | 183 / B10 | |
List Price | Show prices | |
Customer Price | Show prices | |
Surcharge for Raw Materials | None | |
Metal Factor | None | |
Delivery information | ||
Export Control Regulations | AL : N / ECCN : 9N9999 | |
Standard lead time ex-works | 10 Day/Days | |
Net Weight (kg) | 1,220 Kg | |
Packaging Dimension | 25,40 x 38,60 x 26,40 | |
Package size unit of measure | CM | |
Quantity Unit | 1 Piece | |
Packaging Quantity | 1 | |
Additional Product Information | ||
EAN | 4025515639961 | |
UPC | Not available | |
Commodity Code | 85176200 | |
LKZ_FDB/ CatalogID | PTD/EA | |
Product Group | 1320 | |
Group Code | U321 | |
Country of origin | Germany | |
Compliance with the substance restrictions according to RoHS directive | Since: 16.10.2015 | |
Product class | B: return restricted, please contact your Siemens partner/contact | |
WEEE (2012/19/EU) Take-Back Obligation | Yes | |
REACH Art. 33 Duty to inform according to the current list of candidates | Reach Information | |
Reach Information | ||
