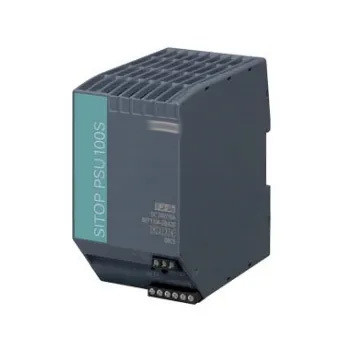

Output Power other 6EP1334-2BA20 SITOP PSU100S 24 V/10 A Stable power input 120/230 V AC
Product Details:
| Place of Origin: | Austria |
| Brand Name: | other |
| Model Number: | 6EP1334-2BA20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $156.00/cartons |
|
Detail Information |
|||
| Input Voltage: | 1 AC 85-132 V / 2AC 170 -264 V | Output Voltage: | 24 V |
|---|---|---|---|
| Output Power: | Other | Output Frequency: | Other |
| Output Current: | 10 A | ||
Product Description
Product Description
Specification
Model | 6EP1334-2BA20 |
Adjustable output voltage | 22.8... 28 V |
Product function can adjust the output voltage | Yes |
The output voltage | set by potentiometer |
The display mode is normal for the normal operation | 24 V green LED |
The maximum action delay time | 0.3s |
The display mode is normal for the normal operation | 24 V green LED |
The maximum action delay time | 0.3s |
Relative adjustment accuracy Output voltage Input voltage fluctuates rapidly +/- 15% typical | 0.3% |
Relative regulation accuracy Output voltage ohm load step 10/90/10% typical | 3% |
Overvoltage protection | in case of internal failure, Vout < 33 V |
Current limit action value | 12... 14.6A |
The output characteristics of short circuit protection | Yes |
Short-circuit protection specifications | Constant current output characteristics |
Current limit action value | 12... 14.6A |
The output characteristics of short circuit protection | Yes |
Short-circuit protection specifications | Constant current output characteristics |
Potential isolation between the entrance and the exit | Yes |
Potential isolation between the entrance and the exit | Yes |
The potential isolation | Complies with the SELV output voltage of EN 60950-1 and EN 50178 |
Device protection level | Class 1 |
Proof of qualification shipbuilding permit | Yes |
Shipbuilding license | BV, DNV GL |
Country of origin | Austria |
