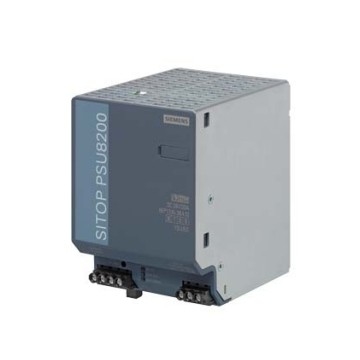

Output Frequency Other Automation Power Supply SITOP PSU8200/1ACDC/DC24V/20A 6EP1336-3BA10
Product Details:
| Place of Origin: | Romania |
| Brand Name: | other |
| Model Number: | 6EP1336-3BA10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $267.00/cartons |
|
Detail Information |
|||
| Input Voltage: | DC 88 - 350 V | Output Voltage: | The Rating Is 24 V When The Output End Is 1 DC |
|---|---|---|---|
| Output Power: | Other | Output Frequency: | Other |
| Output Current: | 20 A | ||
Product Description
Product Description
Specification
The shape of the grid | Single-phase and two-phase AC or DC |
The power supply voltage is AC ● Minimum rating ● Maximum rating ● Initial value ● Final value | 120 V 230 V 85 V; When the V input is less than 100 V AC or DC, derate until the temperature is lower than 50 °C 275 V |
Supply voltage ● DC | 110-220 V |
Input voltage ● DC | 88-350 V |
Input Specifications Ultra Wide area input | Yes |
Working conditions Power off bridging mode | Vin = 230 V |
The minimum value of the crossover time output current rating in the event of a power outage | 20 ms |
Working conditions Power off bridging mode | Vin = 230 V |
Grid frequency ● 1 rating ● 2 rating | 50 Hz 60 Hz |
Grid frequency | 45-65 Hz |
Input current ● when the input voltage rating is 120 V ● when the input voltage rating is 230 V | 4.6A 2.5A |
Current limit The maximum value is at 25 °C | 20 A |
Voltage waveform output | After regulation, zero potential DC voltage |
When the output end is 1 DC | The rating is 24 V |
The relative total tolerance voltage | 3% |
Relative adjustment accuracy output voltage ● when the input voltage fluctuates slowly ● when the ohm load fluctuates slowly | 0.1% 0.3% |
Voltage peak ● Max ● Typical | 200 mV 100 mV |
Adjustable output voltage | 24-28.8V |
Product function can adjust the output voltage | Yes |
The output voltage | Set by potentiometer |
The maximum operation delay time | 1.5 s |
Voltage rise time output voltage ● Typical | |
Output current ● Rated ● Measuring range | 20A 0-20 A; +60.... +70 °C: Derates 3%/K |
The effective output power is typically | 480 W |
