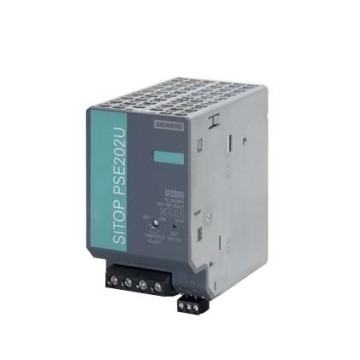

Communication interface Other SITOP PSE202U/redundant module/DC24V/40A 6EP1961-3BA21
Product Details:
| Place of Origin: | Austria |
| Brand Name: | other |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $116.00/cartons |
|
Detail Information |
|||
| Memory: | Other | I/O Number: | Other |
|---|---|---|---|
| Communication Interface: | Other | ||
Product Description
Product Description
Specification
Grid shape | DC voltage |
Supply voltage ● DC | |
Input voltage ● DC | 24... 28.8V |
Voltage waveform output | After regulation, zero potential DC voltage |
Output voltage formula | VIN - about 0.5V |
Output voltage ● When the output end is 1 DC | |
Function The output voltage can be adjusted. | No |
Output current ● Rated ● Measuring range | 40 A 40 A; Maximum total current 40A; +60... +70 °C: Derates 3%/K |
The percentage efficiency | 96.6% |
Power loss [W] ● Output voltage rating when the output current rating is typically ● Maximum when idling | 34 W 1.5W |
Potential isolation | Yes, SELV in accordance with EN 60950-1 (relay contacts) |
Device protection level | Class III |
Protection level IP | IP20 |
Proof of qualification shipbuilding permit | Yes |
Shipbuilding permit | ABS, DNV GL |
Country of origin | Austria |
Net weight(Kg) | 0.400 |
Package size（CM） | 13.50 x 13.50 x 8.00 |
Electrical connection specification ● At the input end ● For auxiliary contact | Bolt connection Input, output and ground terminals: every 0.33... 10mm²1 screw terminal single core/multiple strands relay contact: every 0.5... 2.5 mm² 3 screw terminals |
Standard ● Suitable for jamming emission ● Suitable for anti-interference | EN 55022 Class B EN 61000-6-2 |
