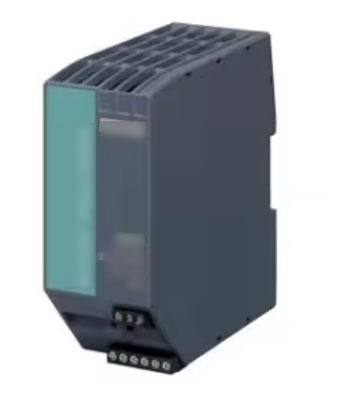

SITOP PSU100S 24V/5A Output 120/230V AC Input 6EP1333-2BA20 for Industrial Products
Product Details:
| Place of Origin: | Austria |
| Brand Name: | other |
| Model Number: | 6EP1333-2BA20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $144.00/cartons |
|
Detail Information |
|||
| Input Voltage: | 1 AC 85 ... 132 V / 2 AC 170...264 V | Output Voltage: | 24 V, 24V |
|---|---|---|---|
| Output Power: | Other | Output Frequency: | Other |
| Output Current: | 5 A | ||
Product Description
Product Description
Specification
Place of Origin | Austria |
Brand Name | SIEMENS |
Model Number | 6EP1333-2BA20 |
Input Voltage | 1 AC 85 … 132 V / 2 AC 170 … 264 V |
Output Voltage | 24 V |
The shape of the grid | Single-phase AC |
Potential isolation between the entrance and the exit | Yes |
Output Current | 5A |
Device protection level | Class 1 |
The potential isolation | Complies with the SELV output voltage of EN 60950-1 and EN 50178 |
Current limit action value | 6... 7.1A |
The output characteristics of short circuit protection | Yes |
Short-circuit protection specifications | Constant current output characteristics |
The percentage efficiency | 88% |
Adjustable output voltage | 22.8... 28 V |
The maximum action delay time | 0.3s |
Product function can adjust the output voltage | Yes |
The output voltage | Set by potentiometer |
The display mode is normal for the normal operation | 24 V green LED |
Output voltage characteristic | V output overshoot < 3% when switched on |
The effective output power | Typically 144 W |
Current limit The maximum value | 40 A at 25 °C |
The maximum I2t value | 1 A² ，s |
