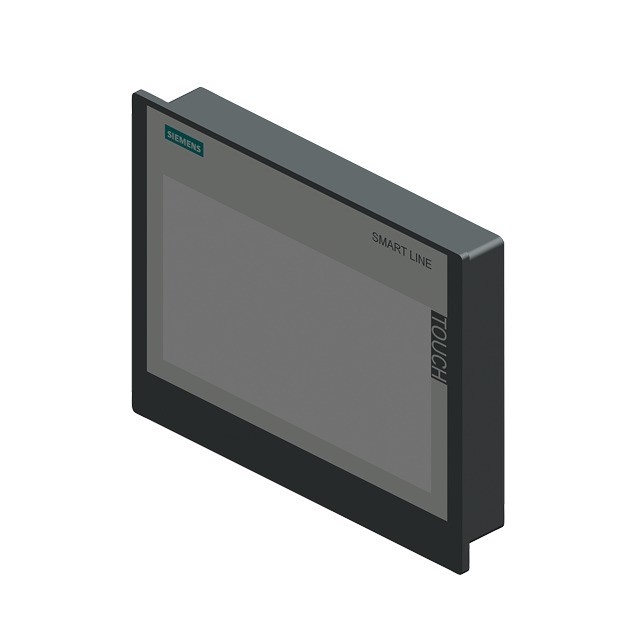

Ethernet Network Touch Screen SIMATIC HMI Smart 700 IE V4 6AV6648-0DC11-3AX0 100% Original CN SIC
Product Details:
| Place of Origin: | Sichuan, China |
| Brand Name: | Siemens |
| Model Number: | 6AV6648-0DC11 3AX0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $135.00/cartons |
|
Detail Information |
|||
| Network: | Ethernet | Size: | 7 |
|---|---|---|---|
| Condition: | 100% Original | Product Name: | Touch Screen |
Product Description
Product Description
Specification
general information | ||
Product Type Mark | 6AV6648-0DC11-3AX0 | |
display | ||
Display screen specifications | TFT | |
Screen Diagonal | 7 in | |
Screen width | 152.4 mm | |
Screen height | 91.4 mm | |
Number of Colors | 16 777 216 | |
Resolution in pixels | ||
● Horizontal image resolution | 800 pixel | |
● Vertical image resolution | 480 pixel | |
Backlight | ||
MTBF background lighting (at a temperature of 25 ° C) | 80 000 h | |
● Adjustable background lighting | Yes; 0-100% | |
Operating elements | ||
Keyboard font | ||
● Function buttons | ||
- Number of function buttons | 0 | |
- Number of function buttons with LED | 0 | |
● Button with LED | no | |
● System buttons | no | |
● Numeric keypad | Yes; On screen keyboard | |
● Alphabetical Numeric keypad | Yes; On screen keyboard | |
touch screen | ||
● Touch screen specifications | Yes; Analog resistor | |
Process operation extension | ||
DP direct LED (LED as S7 output peripheral) | ||
- F1... Fx | 0 | |
● Directly press the button (as S7 input peripheral device) | ||
- F1... Fx | 0 | |
● Direct button (touch button as S7 input peripheral device) | 32 | |
Installation method/installation | ||
Installation position | vertical | |
Wall panel installation/direct installation | no | |
Can be installed vertically (in vertical format) | yes | |
Can be installed horizontally (in horizontal format) | yes | |
Maximum allowable tilt angle without external ventilation | 35° | |
supply voltage | ||
Voltage type of power supply | DC | |
Rated value (DC) | 24 V | |
Allowable range, lower limit (DC) | 19.2 V | |
Allowable range, upper limit (DC) | 28.8 V | |
Input current | ||
Current consumption (rated value) | 0.5 A | |
Switching on current pulse I ² T | 0.5 A²·s | |
